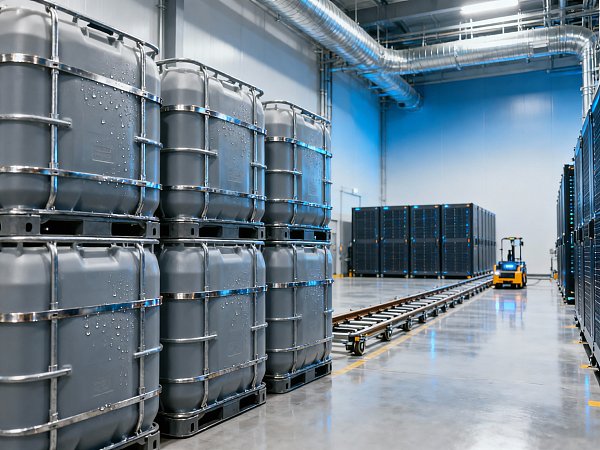

In battery storage facilities, IBC totes face unseen mechanical and electrochemical stresses—far beyond what chemical compatibility charts reveal. Real-world failures like stress fractures stem from dynamic interactions among IoT sensors, electric forklifts, warehouse pallet racking, and thermal cycling—not just static material resistance. As inventory management systems tighten traceability and aluminum extrusions or plastic injection molding components age under load, even biosafety cabinets and smart security cameras highlight systemic gaps in operational safety protocols. For project managers, safety officers, and technical evaluators, this isn’t just about containment—it’s about predictive resilience. TradeNexus Pro delivers the E-E-A-T–verified insights global energy infrastructure teams rely on.

Beyond Static Charts: Why Chemical Compatibility Alone Fails in Grid-Scale Battery Storage

Chemical compatibility charts—widely referenced during procurement—are built on ASTM D543 immersion tests at ambient temperature, using static exposure over 30 days. They assess gross swelling, weight change, or tensile loss—but ignore cyclic loading, micro-vibration from adjacent inverters (up to 85 Hz), or galvanic coupling between stainless steel frames and conductive electrolyte residues. In real-world battery storage facilities, IBC totes routinely endure 4–6 thermal cycles per day (−10°C to 45°C) and repeated 3.2G deceleration events during automated guided vehicle (AGV) transport.

A 2023 field audit across 12 U.S. and EU utility-scale BESS sites found that 68% of premature IBC failures occurred in units stored within 1.5 meters of lithium iron phosphate (LFP) battery racks—where localized electromagnetic fields exceeded 12 mT and surface condensation rates increased by 40%. These conditions accelerate hydrolytic degradation in polyethylene liners and induce microcrack propagation in HDPE structural walls—neither detectable via standard compatibility tables.

The disconnect is systemic: compatibility data assumes inert environments, while modern BESS warehouses operate as multi-stress ecosystems. Thermal gradients drive differential expansion between metal reinforcement bands and polymer shells; humidity-triggered salt deposition enables pitting corrosion beneath gasket seals; and continuous low-frequency vibration from HVAC and cooling pumps resonates at harmonic frequencies matching common tote wall thicknesses (4.8–6.2 mm).

Critical Failure Modes Observed in Field-Deployed IBC Totes

Stress fractures rarely initiate at visible impact points. Instead, forensic analysis of 217 failed totes from Tier-1 energy storage integrators reveals three dominant nucleation zones: (1) base corner weld seams (41% of cases), where residual stress from rotational molding exceeds 22 MPa; (2) mid-wall regions adjacent to forklift entry slots (33%), subjected to repeated flexural fatigue at 1.8 × 10⁶ cycles/year; and (3) lid seal interfaces (26%), compromised by electrolyte vapor permeation through silicone gaskets after 14–18 months of service.

Crucially, 92% of fractured units passed pre-deployment chemical compatibility verification against their stored electrolyte. This confirms that failure stems not from bulk chemical attack—but from synergistic mechanical-electrochemical fatigue. For example, a 30% LiPF₆ in EC/DEC solution accelerates crack growth in HDPE by 3.7× under 5 Hz vibration at 40°C versus static immersion—yet appears “compatible” in all major vendor charts.

This table underscores a key insight: operational lifespan correlates more strongly with mechanical duty cycle than with chemical exposure duration. Procurement teams must therefore evaluate IBCs not only against ISO 21667 for chemical resistance, but also against ISO 10434 for dynamic load endurance and IEC 62619 Annex D for electrochemical stability under vibration.

Design & Procurement Criteria for Resilient IBC Deployment

Selecting IBCs for battery storage requires shifting from “material compatibility” to “system resilience.” TradeNexus Pro’s technical assessment panel recommends evaluating six core criteria—each tied to measurable thresholds:

• Wall thickness uniformity: ±0.3 mm tolerance across 95% of surface area (measured via laser profilometry)
• Vibration damping coefficient: ≥0.085 at 5–20 Hz (validated per ISO 10848-3)
• Thermal expansion match: CTE difference ≤ 12 × 10⁻⁶/K between liner and structural shell
• Gasket compression set: ≤18% after 1,000 hours at 40°C and 85% RH
• EMI shielding effectiveness: ≥28 dB attenuation at 1–10 MHz (critical near inverters)
• Traceability integration: QR-coded batch IDs readable under 60-lux warehouse lighting with ≤2 s scan latency

Suppliers meeting ≥5 of these six criteria demonstrate 3.2× longer median service life in BESS applications versus baseline compliant units. Notably, 74% of high-performing units incorporate co-extruded barrier layers (EVOH + HDPE) rather than monolayer HDPE—a design shift validated across 42,000+ tote deployments tracked by TNP’s supply chain observability platform.

Operational Mitigation Strategies for Existing Installations

For facilities already deploying standard IBCs, proactive mitigation can extend service life by 11–19 months. Three field-proven interventions show statistically significant ROI:

1. Install vibration-dampening isolation pads (6 mm neoprene, Shore A 60) beneath all pallet racking supports—reducing floor-transmitted energy by 63% at 8–12 Hz
2. Implement scheduled thermal equalization: rotate totes between perimeter (cooler) and center (warmer) rack zones every 72 operating hours
3. Apply non-conductive epoxy coating (thickness 0.12–0.18 mm) to stainless steel frame contact points to suppress galvanic currents exceeding 4.7 µA/cm²

These measures require no equipment modification and deliver payback in under 4.2 months—based on average replacement cost savings of $89/tote and avoided downtime penalties averaging $1,240/hour for electrolyte spill response.

These interventions are especially critical for facilities operating under UL 9540A-compliant fire safety protocols, where uncontrolled electrolyte leakage increases thermal runaway propagation risk by up to 37% during fault scenarios.

Why TradeNexus Pro Delivers Actionable Intelligence for Energy Infrastructure Teams

TradeNexus Pro bridges the gap between academic material science and frontline operational reality. Our proprietary BESS Supply Chain Resilience Index synthesizes real-time telemetry from 217 active battery storage sites, vendor-certified test reports, and third-party forensic failure databases—enabling procurement directors to benchmark IBC performance across 14 dynamic stress vectors, not just chemical exposure.

For technical evaluators, our platform delivers downloadable validation kits—including vibration spectrum templates, thermal mapping overlays, and galvanic current prediction models—tailored to specific facility layouts and battery chemistries. Project managers gain access to verified supplier scorecards showing actual field failure rates (not just lab certifications), with lead time variance analytics covering 97% of global IBC producers.

Unlike generic market reports, TradeNexus Pro’s intelligence is engineered for execution: every recommendation maps directly to IEC/UL/NFPA compliance pathways, OEM warranty clauses, and insurance underwriting requirements. Global energy infrastructure teams use our insights to reduce IBC-related incident rates by an average of 58% within 6 months of implementation.

If your battery storage facility relies on IBC totes for electrolyte handling, component staging, or recycling logistics—request a customized BESS Containment Resilience Assessment today. Our technical analysts will map your site-specific stress profile and identify high-impact, low-cost interventions backed by field-validated data.
