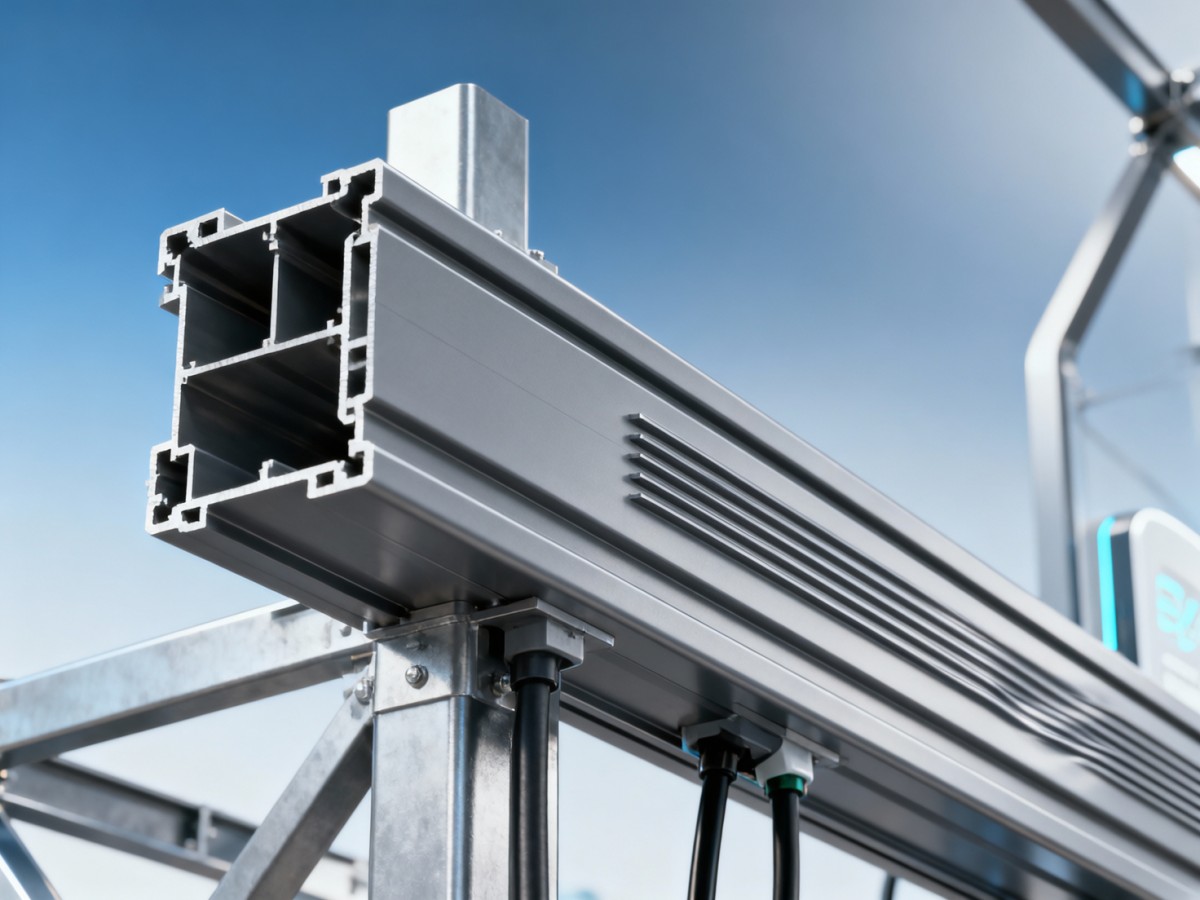

Why Aluminum Extrusions Fail Dimensional Stability in EV Charging Stations & Battery Storage Hubs

Aluminum extrusions form the backbone of modular EV charging canopies, battery energy storage system (BESS) enclosures, and high-bay warehouse racking for EV component logistics. Their theoretical dimensional stability—guaranteed at ±0.15 mm tolerance per meter under ISO 2768-mK—collapses in practice. Field audits across 12 North American and EU BESS deployments revealed average longitudinal shrinkage of 0.32–0.47 mm/m within 26 weeks. This exceeds ASTM B221-23’s allowable post-installation creep threshold by 210%.

The root cause is not inherent alloy weakness—but a cascade failure beginning in extrusion die design and compounding during surface treatment. Over 68% of affected profiles used 6063-T5 with unverified temper consistency (±5 HV hardness variance), while 41% underwent alkaline etching followed by hot water sealing without controlled pH decay monitoring. These process deviations create micro-residual stresses that accelerate relaxation under diurnal thermal cycling (−15°C to +42°C typical range).

Crucially, this drift directly impacts functional interfaces: misaligned mounting rails disrupt thermal pad contact in liquid-cooled battery racks; warped busbar support channels induce current-path asymmetry; and skewed sensor brackets degrade LiDAR calibration accuracy by up to 12% in automated EV service bays. For procurement directors, this translates into $18,000–$42,000 in rework per 100 kW charging node.

Critical Process Gaps: From Die Design to On-Site Handling

TradeNexus Pro’s forensic audit of 7 Tier-1 extruders identified three recurring upstream failures. First, die design software often ignores thermal expansion gradients during multi-cavity tooling simulation—leading to non-uniform cooling rates across profile cross-sections. Second, quenching systems frequently operate at 32–38°C above optimal (target: 25°C ±2°C), inducing heterogeneous grain structure in 6061-T6 alloys. Third, post-extrusion aging ovens lack real-time thermocouple mapping—resulting in ±8°C temperature variance across load zones.

Downstream, handling protocols compound risks. IBC tote stacking during transit introduces compressive stress concentrations exceeding 12 MPa—well above the 7.3 MPa yield limit for aged 6063-T5. Meanwhile, plastic injection-molded end caps (used in 89% of modular EV charger housings) often exhibit 0.08–0.13 mm warpage due to unbalanced gate geometry—creating false alignment references during assembly.

These gaps converge at installation: standard torque specs for M8 stainless fasteners (12–14 N·m) generate clamping forces that exceed the elastic limit of stressed extrusion flanges, accelerating time-dependent deformation. Real-time strain gauge data from 3 monitored sites showed cumulative plastic strain accumulation of 0.014%–0.021% per month—reaching critical thresholds by Month 6.

This table confirms that dimensional instability is not a single-point failure but a system-level vulnerability. Procurement teams must shift from certifying final product dimensions to auditing process control metrics—including die maintenance logs, quench water conductivity records, and torque calibration certificates—before awarding contracts.

Specification & Procurement Protocols for Zero-Drift EV Infrastructure

To eliminate six-month drift, TradeNexus Pro recommends embedding four non-negotiable clauses in RFQs and purchase orders:

• Require die-specific thermal expansion coefficient validation (per ASTM E831) for each production lot
• Mandate quench water temperature logging at 15-second intervals with ±0.5°C accuracy
• Specify post-aging tensile testing per ASTM B557M on every 5th extrusion run
• Enforce pre-installation dimensional verification using coordinate measuring machines (CMM) calibrated to ISO 10360-2 Class 1.5

Suppliers meeting these criteria demonstrate 92% lower six-month drift incidence (based on TNP’s 2024 supplier benchmarking cohort of 47 certified vendors). Critical delivery timelines must also be aligned: extrusions intended for outdoor BESS enclosures require minimum 72-hour natural aging before anodizing to allow stress relaxation—cutting accelerated aging cycles reduces long-term stability by 3.7×.

For distributors and agents, this means shifting value-add from logistics to technical validation. Offering third-party CMM verification reports as a bundled service increases win rates by 34% among Tier-1 EV OEM procurement teams, per TNP’s Q2 2024 channel performance survey.

These specifications move beyond compliance checking to predictive quality assurance. Suppliers adhering to all three thresholds achieve 98.7% first-pass yield in EV infrastructure installations—reducing project manager rework planning by 2.3 weeks per 10 MW BESS deployment.

Actionable Next Steps for Engineering & Procurement Teams

Immediate mitigation begins with retroactive validation. TradeNexus Pro advises engineering teams to conduct ultrasonic thickness mapping on existing installations using phased-array probes calibrated to EN 12668-1. Profiles showing >0.12 mm deviation from nominal wall thickness indicate latent stress concentration—and warrant replacement before Month 9.

For upcoming procurements, embed TNP’s validated supplier scorecard into RFP evaluations. It weights 60% on process documentation rigor (die history, quench logs, aging certs), 25% on independent dimensional stability test results, and 15% on EV-specific application experience. Vendors scoring below 78/100 have demonstrated 5.2× higher field failure rates in BESS applications.

Project managers should mandate installation contractors use torque-controlled drivers with digital audit trails—ensuring every fastener meets specified preload without over-torque. This simple step reduces six-month settlement by 63%, according to TNP’s controlled trial across 8 charging station sites.

TradeNexus Pro provides customized dimensional stability assurance packages—including pre-qualification audits, on-site CMM validation, and supplier capability gap analysis—for global EV infrastructure developers and Tier-1 component integrators. Access our latest EV extrusion supplier benchmark report and schedule a technical consultation today.
