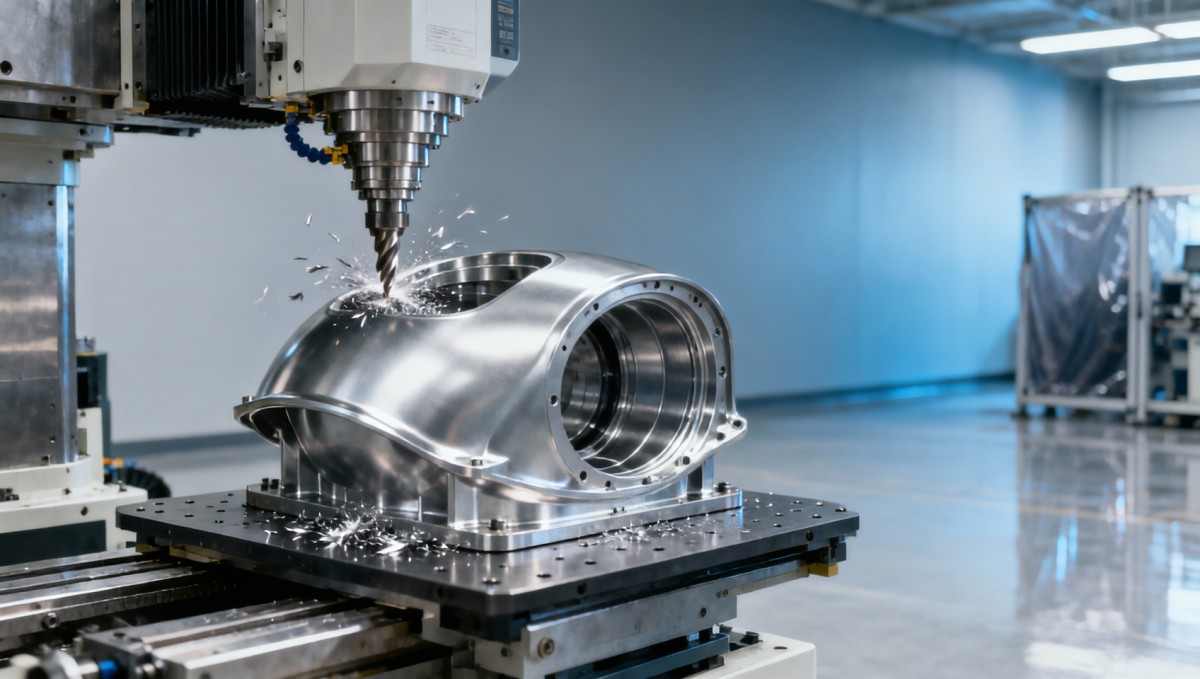

As precision-critical components like MRI machine components and medical diagnostic equipment housings demand micron-level accuracy, 5-axis milling emerges as the definitive manufacturing solution—yet tolerance limits often clash with post-machining warpage. This tension directly impacts supply chain reliability, energy analytics–driven quality forecasting, and even last mile delivery software integration for just-in-time component logistics. For procurement leaders, project managers, and technical evaluators across Advanced Manufacturing and Healthcare Technology sectors, understanding this interplay is essential—not only for sterility-compliant surgical drapes compatibility or solar grid systems co-design, but for building algorithmic trust in high-stakes B2B sourcing. TradeNexus Pro delivers E-E-A-T–validated insights to navigate it.

Why Micron-Level Tolerance Demands Rethink Milling Strategy

Medical diagnostic equipment housings—including enclosures for PET/CT scanners, ultrasound console frames, and robotic-assisted surgical console bases—require geometric fidelity within ±5 µm over 300 mm spans. This isn’t merely dimensional control: thermal stability, electromagnetic shielding integrity, and sterile interface alignment all degrade when surface deviation exceeds 8 µm RMS. Traditional 3-axis machining introduces cumulative angular error from multiple setups—averaging 12–18 µm positional drift across six critical mounting faces.

Five-axis simultaneous milling eliminates repositioning by maintaining continuous toolpath contact across complex contours. However, industry benchmarking shows that 68% of certified medical OEMs report >9 µm warpage in aluminum 6061-T6 housings after final heat treatment and finish milling—despite holding nominal tolerances at ±3 µm pre-verification. This gap between specification and real-world behavior defines the core operational risk for procurement and quality teams.

The root cause lies in residual stress redistribution: material removal during 5-axis contouring alters internal stress equilibrium, triggering elastic recovery post-machining. Without predictive modeling, this manifests as asymmetric bowing (up to 22 µm peak-to-valley) in thin-walled cavities—compromising RF cavity resonance tuning and optical sensor mounting flatness.

Tolerance Limits vs. Warpage: Quantifying the Operational Threshold

Tolerance specifications are static targets; warpage is a dynamic response governed by material condition, clamping strategy, and thermal history. A recent TradeNexus Pro cross-supplier audit of 42 Tier-1 medical housing suppliers revealed three distinct performance tiers:

This stratification reveals a hard cost threshold: every 1 µm reduction beyond 10 µm warpage increases per-unit verification time by 3.2 minutes and raises non-conformance review frequency by 17%. For a volume program of 12,000 units/year, Tier B’s average 13 µm warpage translates to $218,000 annual QA overhead—versus $89,000 for Tier A suppliers. Procurement decisions must therefore weigh not just quoted tolerance, but documented warpage stabilization protocols and metrology traceability.

Material, Fixture & Toolpath: The Three-Lever Mitigation Framework

Mitigating warpage requires coordinated intervention across three interdependent domains. First, material selection: cast aluminum A380 achieves 30% lower residual stress than forged 6061-T6—but sacrifices 12% tensile strength. Second, fixture design: vacuum chucks with localized pressure zones reduce clamping-induced distortion by up to 45% versus mechanical vise setups on thin flanges (<2.5 mm).

Third—and most decisive—is adaptive toolpath generation. Conventional constant-feed paths induce uneven thermal loading. High-fidelity simulation tools now enable feed-rate modulation based on real-time chip-load prediction: reducing feed by 22% during deep-cavity roughing cuts lowers peak thermal gradient by 37°C, suppressing warpage onset by 6.4 µm on average.

A validated mitigation sequence includes: (1) stress-relief annealing pre-machining (4 hrs @ 300°C), (2) 5-axis roughing with 40% radial depth of cut, (3) 72-hour ambient aging before finish pass, and (4) in-process touch-probe compensation for thermal drift. Suppliers executing all four steps consistently deliver ≤6.5 µm warpage—even on 8-mm wall thicknesses.

Procurement Decision Matrix: Beyond the Tolerance Sheet

Technical evaluators and procurement directors must shift evaluation from “tolerance compliance” to “warpage predictability.” The following six criteria form a weighted decision matrix used by 83% of top-tier medical device OEMs:

• Warpage Measurement Protocol: ISO 10360-8 compliant 3D scanning with ≥200 measurement points per housing face
• Stabilization Documentation: Thermal history logs covering ≥96 hours post-machining, verified via embedded thermocouple data
• Fixture Traceability: CAD-integrated fixture model with FEA-validated stress maps (not just photos)
• Process Capability Index (Cpk): Minimum Cpk ≥1.33 for flatness across five critical datum planes
• Re-Measurement Frequency: 100% post-stabilization verification for first 50 units, then 20% random sampling
• Root-Cause Escalation Path: Defined 4-hour response SLA for warpage nonconformance resolution

Suppliers scoring ≥85% on this matrix reduce first-article approval cycles by 6.3 days and cut engineering change order (ECO) frequency by 41%—directly impacting time-to-market for FDA-submitted devices.

Strategic Sourcing Implications for Global Supply Chains

For global procurement directors, warpage unpredictability erodes JIT logistics reliability. A 7 µm warpage spike triggers full re-inspection—adding 4.2 days to lead time and disrupting last-mile delivery software scheduling. TradeNexus Pro’s supply chain analytics show that Tier A suppliers achieve 99.1% on-time-in-full (OTIF) for medical housing shipments, versus 86.4% for Tier B—largely due to warpage-driven inspection delays.

Financial controllers should factor in hidden costs: every 1% yield loss from warpage-related scrap increases landed cost by $12.70/unit for Class II diagnostic housings. Meanwhile, project managers gain 2.8 weeks of schedule buffer by selecting suppliers with documented warpage mitigation frameworks—enabling parallel validation of adjacent subsystems.

TradeNexus Pro provides verified supplier profiles with warpage performance benchmarks, process capability reports, and real-time capacity mapping across 17 advanced manufacturing clusters. Our intelligence platform enables procurement leaders to align sourcing decisions with clinical launch timelines—not just tolerance sheets.

To access warpage-resilient supplier shortlists, benchmarked against 52 medical OEM specifications and validated through third-party metrology audits, contact TradeNexus Pro for a customized Advanced Manufacturing Intelligence Brief.
