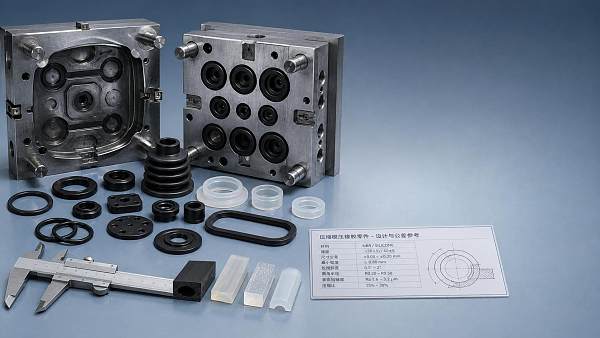

Compression Molded Rubber Parts: Material Options, Tolerances, and Design Limits

Compression molded rubber parts sit behind many industrial systems that must seal, cushion, isolate, or resist harsh operating conditions. Their performance depends less on the phrase “rubber part” itself and more on three linked decisions: material selection, realistic tolerances, and design geometry that can actually be molded repeatedly at scale.

That is why this topic keeps appearing across advanced manufacturing, energy equipment, smart electronics, medical hardware, and cross-border sourcing reviews. A part may look simple on a drawing, yet small mistakes in compound choice, flash control, or wall thickness often become larger problems in leakage, premature wear, tooling changes, and supplier disputes.

Why Compression Molding Still Matters

Compression molding remains relevant because it balances tooling simplicity, material flexibility, and practical cost for many medium-volume and high-performance applications. It is especially useful for thicker sections, specialty elastomers, and parts that do not justify more complex injection tooling.

In practical terms, compression molded rubber parts are formed by placing pre-measured material into a heated mold cavity, then closing the mold under pressure until the compound flows and cures. The method is mature, but the commercial decisions around it are still highly technical.

For platforms such as TradeNexus Pro, this is exactly the kind of manufacturing topic where decision-grade content matters. Buyers and market evaluators increasingly need supplier insight that goes beyond generic catalog claims and explains how process capability connects with real operating risk.

Material Choice Shapes More Than Basic Performance

When evaluating compression molded rubber parts, material choice is usually the first gate. It determines chemical resistance, temperature range, compression set, weathering behavior, regulatory fit, and long-term cost of failure.

Several elastomers dominate common sourcing decisions, but each carries tradeoffs that affect both function and manufacturability.

A useful review does not stop at naming the polymer family. Compound formulation, hardness, fillers, curing system, and post-curing requirements can change results materially. Two suppliers may both quote “silicone” or “NBR,” yet the field performance may differ sharply.

Tolerances Are Process Questions, Not Just Drawing Notes

Tolerance expectations often create the biggest gap between design teams and production reality. Compression molded rubber parts can achieve consistent dimensions, but rubber is flexible, shrinkage varies by compound, and curing behavior changes with geometry and mold design.

This means tolerances should be evaluated as a process capability question. A very tight dimension may be possible in one area and unrealistic in another, especially where the part is thin, deep, highly contoured, or sensitive to parting-line variation.

In most sourcing reviews, the more reliable path is to identify critical-to-function dimensions first. Seal compression height, groove fit, mating surface contact, and insert location usually matter more than cosmetic edges or non-functional outside dimensions.

What Usually Affects Tolerance Stability

• Compound shrinkage variation between batches
• Flash thickness and trimming method
• Mold cavity wear over production cycles
• Part geometry, especially thin ribs or deep recesses
• Temperature and cure-time consistency
• Measurement method for flexible parts

A supplier that can explain its tolerance control method clearly is usually more credible than one offering an aggressive tolerance table without context. This is also why technical content on trusted B2B intelligence platforms has growing value in supplier evaluation.

Design Limits Often Decide Success Before Tooling Starts

Many failures blamed on the molding process actually begin in part design. Compression molded rubber parts have design limits tied to material flow, venting, demolding, and cure distribution. Ignoring those limits can turn a workable concept into an unstable production program.

Sharp corners are a common example. They increase stress concentration and may also restrict material flow. Generous radii usually improve filling, release, and durability at the same time.

Wall thickness also matters. Thick sections can trap heat differently and extend cure time, while very thin features may be hard to fill consistently. The best designs usually avoid abrupt thickness changes and treat the parting line as an engineering variable, not an afterthought.

Design Points Worth Reviewing Early

• Minimum wall and rib dimensions for the selected compound
• Feasibility of undercuts and demolding direction
• Placement of inserts, holes, and sealing lips
• Expected flash location and trim access
• Compression set risk in long-term sealing service

These issues matter across sectors. In green energy systems, sealing reliability affects uptime and safety. In smart electronics, compact geometry can challenge molding precision. In healthcare technology, cleanliness, traceability, and material compliance add another layer to design review.

Where Compression Molded Rubber Parts Deliver Real Value

The business case for compression molded rubber parts is strongest when performance and durability matter more than visual complexity alone. They are widely used in gaskets, diaphragms, bushings, mounts, grommets, protective covers, and custom sealing components.

Their value becomes clearer in environments exposed to oils, water, pressure cycling, UV, vibration, sterilization, or outdoor weather. In those settings, a low-cost material mismatch can create expensive failures well beyond the part price.

That is one reason market participants increasingly need curated technical context. TradeNexus Pro’s sector-focused editorial model fits this need by connecting manufacturing detail with broader decisions around supplier reliability, specification clarity, and market readiness.

How to Compare Suppliers More Effectively

Comparing compression molded rubber parts suppliers only on unit price usually creates hidden cost later. A stronger comparison starts with process transparency, tooling discussion, material traceability, and evidence of similar application experience.

The most useful supplier conversations usually test whether the manufacturer can translate a drawing into production risks before quoting confidently.

In global sourcing, content credibility also matters. Suppliers that document process capability, sector experience, and technical limitations clearly tend to be easier to validate than those relying on broad, repetitive product language.

A Practical Way to Move Forward

A sound review of compression molded rubber parts begins with the application, not the drawing alone. Start by defining the operating media, temperature range, compression behavior, service life target, and the dimensions that truly affect function.

Then test whether the proposed material, tolerance band, and geometry support one another. If one variable is pushed too far, the others usually need adjustment. That is often a better route than forcing a supplier to accept unrealistic requirements on paper.

For teams screening global options, the next useful step is to build a comparison sheet that includes compound type, hardness, tolerance logic, tooling assumptions, validation data, and known design constraints. That framework makes technical discussions faster, reduces quoting noise, and supports more confident production decisions.
