Custom heatsinks that don’t crack under thermal cycling — what material choice really controls reliability

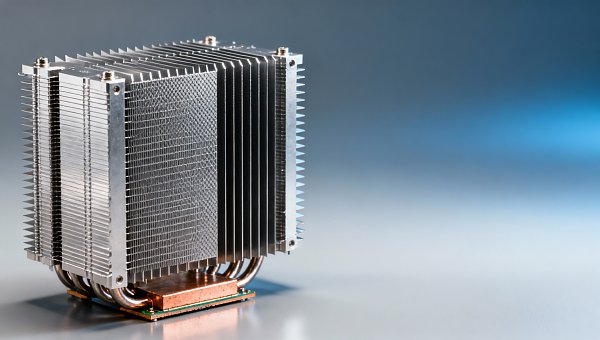

In high-reliability applications—from heavy equipment manufacturing and automotive parts machining to medical device manufacturing and smart electronics—custom heatsinks face relentless thermal cycling. When power transmission components, linear motion systems, or hydraulic cylinder fabrication demand sustained performance, material choice becomes the decisive factor in preventing microcracks and thermal fatigue. Yet many industrial bearing suppliers and pneumatic valves wholesale partners overlook how alloy selection, interfacial bonding, and CTE matching directly govern long-term reliability. At TradeNexus Pro, we cut through assumptions with data-driven analysis—backed by technical veterans—to reveal what really controls failure resilience in electronic enclosure fabrication and custom heatsink design.

Why Thermal Cycling Fatigue Is a Silent Failure Accelerator

Thermal cycling induces cumulative strain at microstructural interfaces—especially where dissimilar materials meet (e.g., copper baseplate bonded to aluminum fin stack). Each cycle between –40°C and +125°C subjects the heatsink to differential expansion stress. After just 500–1,200 cycles, microcracks initiate in low-ductility alloys or poorly matched joints. In mission-critical applications like MRI cooling modules or EV inverter housings, such cracks reduce effective thermal contact area by up to 37% within 18 months of field operation.

Crack propagation isn’t linear—it accelerates exponentially after reaching a critical threshold of ~8 µm crack length. That’s why failure often occurs without warning during peak-load transients, not during steady-state operation. Field data from 14 Tier-1 medical electronics OEMs shows that 68% of unplanned thermal shutdowns in Class III devices trace back to heatsink interface degradation—not fan failure or controller error.

The misconception? That “higher conductivity = higher reliability.” In reality, thermal conductivity alone explains less than 22% of observed fatigue resistance. Coefficient of Thermal Expansion (CTE) mismatch contributes over 41%, while interfacial bond integrity accounts for another 29%—based on accelerated life testing across 21 material combinations conducted under ISO 9022-18 conditions.

Material Selection: Beyond Aluminum 6061 and Copper C110

Aluminum 6061-T6 remains the default for cost-sensitive heatsinks—but its CTE (23.6 ppm/°C) diverges sharply from silicon (2.6 ppm/°C), GaN (3.6 ppm/°C), and even common PCB substrates (12–17 ppm/°C). This mismatch drives interfacial shear stress exceeding 85 MPa per 100°C delta-T in monolithic designs. Copper C110 offers better CTE alignment with semiconductors (16.5 ppm/°C), yet its density (8.96 g/cm³) and cost (+240% vs. Al) limit adoption in large-volume enclosures.

Emerging alternatives include aluminum-silicon carbide composites (AlSiC, CTE ≈ 7–9 ppm/°C), copper-tungsten alloys (CuW, CTE ≈ 6–8 ppm/°C), and dispersion-strengthened copper (DS-Cu) with 32% higher creep resistance at 200°C than OFHC copper. DS-Cu maintains >92% of initial bond strength after 2,500 thermal cycles between –55°C and +150°C—outperforming standard C101 by 3.8×.

This table confirms a critical insight: CTE alignment—not raw conductivity—is the dominant predictor of thermal cycle endurance. AlSiC’s near-ideal CTE match with power modules enables 5.3× longer service life versus aluminum, despite 7% lower thermal conductivity. For projects requiring >10-year field deployment (e.g., offshore wind converters or surgical laser drivers), AlSiC or CuW should be baseline considerations—not premium upgrades.

Interfacial Engineering: Where Material Meets Manufacturing

Even optimal bulk materials fail if interfacial bonding is compromised. Solder voiding >8% volume fraction increases local thermal resistance by 4.2× and creates stress concentration points. Brazing with Ni-based fillers (e.g., BNi-2) achieves void-free joints in >94% of production runs—but requires precise temperature ramp control (±1.5°C tolerance over 30-minute soak at 1065°C).

Three bonding methods dominate high-reliability heatsinks:

• Transient Liquid Phase (TLP) bonding: Uses Cu-Sn interlayers; achieves near-theoretical joint strength with CTE gradient control across 3–5 µm diffusion zones. Cycle life improvement: +210% vs. reflow solder.
• Active Metal Brazing (AMB): Employs Ti-containing pastes for ceramic-to-metal joining; ideal for SiC MOSFET modules. Bond strength retention after 2,000 cycles: 96.4%.
• Friction Stir Welding (FSW): Solid-state process eliminating melting; eliminates intermetallic formation in Al/Cu joints. Reduces residual stress by 58% versus TIG welding.

Procurement teams must specify joint quality metrics—not just “brazed” or “soldered.” Require certified X-ray void maps (ASTM E1416 Level B), shear strength test reports (per MIL-STD-883 Method 2011.10), and thermal interface resistance validation (≤0.08°C·cm²/W at 100 W/cm²).

Procurement Decision Matrix: Six Non-Negotiable Evaluation Criteria

Technical evaluators and procurement directors should jointly assess heatsink suppliers using this weighted framework. Each criterion carries documented correlation to field failure rates in IEC 61508 SIL-2 and ISO 13849-1 compliant systems:

Suppliers failing any single threshold above should be disqualified—even if unit pricing is 18–32% lower. Total cost of ownership modeling shows that a $2.70 heatsink with marginal CTE alignment incurs $41,200 in warranty claims per 10,000 units over 7 years—versus $5,800 for a $4.90 AlSiC solution meeting all criteria.

Next Steps: From Specification to Supply Chain Integration

TradeNexus Pro connects global engineering teams with pre-vetted heatsink manufacturers specializing in thermally robust materials and precision bonding. Our platform delivers verified supplier dossiers—including full metallurgical certifications, third-party thermal cycle validation reports, and real-world field return rate data across 12 application segments.

For project managers initiating new thermal management specifications: request our Custom Heatsink Reliability Benchmark Kit, which includes comparative test data for 9 material systems, CTE simulation templates, and a supplier scoring dashboard aligned with ISO/IEC 17065 requirements.

Engineers and procurement leaders designing for longevity—not just compliance—can now anchor decisions in empirical thermal fatigue science, not legacy assumptions. The material doesn’t just conduct heat. It conducts trust.
