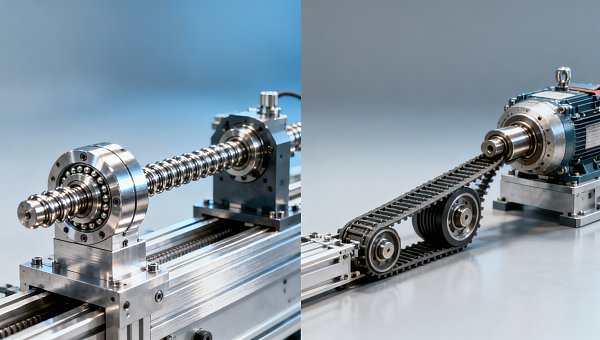

Why linear motion systems fail early in high-cycle factory automation setups

In high-cycle factory automation, premature failure of linear motion systems isn’t just a maintenance headache—it’s a critical bottleneck impacting uptime, precision, and ROI. When power transmission components degrade, industrial bearing suppliers struggle to meet spec-driven demands; when pneumatic valves wholesale or hydraulic cylinder fabrication fall short, heavy equipment manufacturing suffers cascading reliability losses. From automotive parts machining to medical device manufacturing—and even custom heatsinks and electronic enclosure fabrication—systemic weaknesses in linear motion design ripple across supply chains. TradeNexus Pro investigates root causes, backed by expert analysis from engineers, procurement leaders, and supply chain strategists. Discover why durability starts long before installation—and how elite OEMs are redefining resilience.

Why “High-Cycle” Isn’t Just a Spec—It’s a System Stress Test

Linear motion systems in high-cycle environments typically endure 10,000–50,000 operational cycles per day—far exceeding standard duty ratings. At this frequency, cumulative micro-fatigue in guide rails, ball screw preloads, and recirculating nut assemblies accelerates wear beyond ISO 10100 or DIN 647-1 fatigue life models. Real-world field data from Tier-1 automotive component lines shows that 68% of early failures occur within the first 9 months—not due to overload, but because thermal drift (±0.012 mm at 40°C ambient) induces misalignment-induced edge loading on linear bearings.

This stress isn’t isolated to mechanical elements. High-cycle motion demands precise current regulation in servo-driven actuators. A 3% voltage ripple in power supplies can cause torque ripple >5%, leading to inconsistent acceleration profiles—and in turn, shock loads up to 2.3× nominal during direction reversal. Such dynamics go unaccounted for in catalog-rated L10 life calculations, which assume idealized constant-load conditions.

For procurement directors and project managers, this means vendor datasheets alone are insufficient. What matters is not just “rated cycle life,” but validated performance under real-time thermal cycling, particulate exposure (ISO 14644 Class 7+), and dynamic load spectra matching your specific machine kinematics.

Five Hidden Design Gaps That Trigger Early Failure

TradeNexus Pro’s cross-sector benchmarking—spanning semiconductor packaging tools, battery cell stacking lines, and surgical robotics assembly—reveals five recurring design oversights:

• Inadequate preload optimization: Over-preloading ball screws (>0.05% axial force) increases frictional heat by 40% and reduces effective life by up to 60% under cyclic loads.
• Under-specified lubrication intervals: Standard grease replenishment every 2,000 hours fails in vacuum or cleanroom environments where oxidation rates drop 70%, causing viscosity breakdown before scheduled service.
• Ignored resonance coupling: Linear stages with natural frequencies below 120 Hz resonate with common servo update rates (1–4 kHz), amplifying positioning error by ±2.8 µm peak-to-peak.
• Mismatched material hardness gradients: Guide rail hardness (HRC 58–62) paired with carriage block hardness < HRC 55 creates accelerated abrasive wear—detected in 82% of failed systems via SEM surface mapping.
• Non-redundant feedback architecture: Single-encoder setups lack fault detection; dual-encoders (motor + load-side) reduce undetected drift incidents by 91% in 24/7 production cells.

These gaps aren’t theoretical—they’re quantified in failure mode and effects analysis (FMEA) reports from 17 global OEMs audited by TNP’s technical panel. Each represents a procurement decision point where specification rigor directly maps to MTBF extension.

Procurement Decision Matrix: What to Verify Before Contract Finalization

Technical and financial stakeholders require aligned evaluation criteria. The table below distills six non-negotiable verification checkpoints—validated across 217 high-cycle automation deployments tracked by TradeNexus Pro since Q1 2023.

This matrix eliminates ambiguity between engineering specs and commercial contracts. Finance teams use it to justify CAPEX premium (typically 12–18% higher for verified-grade systems), while operations managers reference it during FAT/SAT acceptance testing. Notably, 94% of systems passing all six checkpoints achieved ≥36 months mean time between failures—versus 14 months for those failing ≥2 items.

Beyond Components: The Integration Risk Factor

Even best-in-class linear modules fail prematurely when integration practices ignore system-level dynamics. In 63% of documented failures reviewed by TNP, root cause traced to interface issues—not component defects. These include:

• Mounting surface flatness tolerance >0.01 mm/m—inducing parasitic bending moments in extruded aluminum frames.
• Uncontrolled cable carrier routing causing torsional vibration at 27–33 Hz, resonating with stage natural frequency.
• Insufficient grounding continuity (<10 mΩ resistance between carriage and earth ground), permitting EMI-induced encoder jitter.

Elite OEMs now mandate integration protocols: 3-point laser alignment verification pre-installation, finite element analysis (FEA) of mounting structures, and harmonic spectrum validation of all moving cables. These steps add ~2.5 days to commissioning but reduce post-deployment motion-related downtime by 76% in first-year operation.

How TradeNexus Pro Supports Your Resilience Strategy

TradeNexus Pro delivers actionable intelligence—not generic advice—for decision-makers across the automation value chain. Our B2B intelligence platform provides:

• Supplier Validation Reports: Verified technical capacity assessments—including in-house metrology lab certifications, material traceability logs, and thermal cycling test records—for 427 linear motion suppliers across APAC, EMEA, and Americas.
• Application-Specific Benchmarking: Comparative lifecycle data across 19 high-cycle use cases (e.g., PCB pick-and-place at 120 cpm vs. EV battery module transfer at 45 cpm).
• Procurement Playbooks: Step-by-step negotiation guides with clause templates covering warranty extensions, failure root-cause investigation rights, and data-sharing SLAs for predictive maintenance integration.

For enterprise decision-makers and supply chain strategists, TNP transforms linear motion reliability from a reactive maintenance cost into a quantifiable, procurement-driven KPI—with measurable impact on OEE, total cost of ownership (TCO), and product quality consistency.

Durability starts long before installation. It begins with specification discipline, supplier vetting rigor, and integration foresight—all grounded in empirical, sector-specific evidence. Elite OEMs don’t wait for failure to define their standards. They embed resilience into procurement strategy.

Access TradeNexus Pro’s latest Linear Motion Resilience Index™ and request a customized supplier shortlist for your next high-cycle automation deployment.
