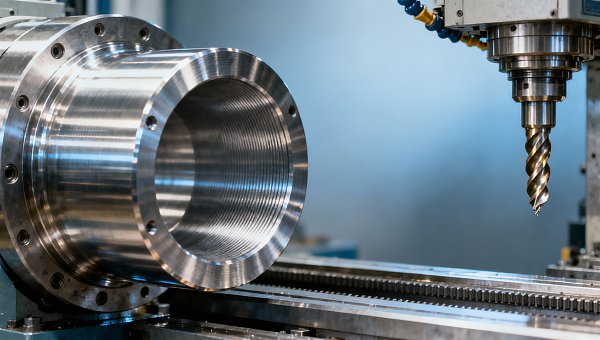

Hydraulic cylinder fabrication: When custom tolerances cost 3x more than expected

When sourcing hydraulic cylinder fabrication for heavy equipment manufacturing or linear motion systems, unexpected cost spikes—often tripling initial estimates—are rarely about markup alone. They stem from unvalidated custom tolerances intersecting with precision demands across power transmission components, industrial bearing suppliers, and automotive parts machining workflows. For procurement directors, project managers, and financial approvers alike, this isn’t just a budget issue—it’s a supply chain risk signal. TradeNexus Pro dissects why tolerance-driven overengineering impacts pneumatic valves wholesale, electronic enclosure fabrication, and medical device manufacturing—and how elite-tier manufacturers mitigate it. Let’s decode the hidden cost drivers before RFQs go out.

The Tolerance Trap: Why ±0.01 mm Can Trigger a 3× Cost Multiplier

Hydraulic cylinder fabrication is not a commodity process—it’s a convergence of metallurgy, CNC kinematics, surface metrology, and functional validation. When engineering teams specify custom tolerances without cross-referencing ISO 286-1 (geometric dimensioning), DIN 24334 (cylinder bore standards), or SAE J1946 (mobile hydraulics), they inadvertently activate cost amplification pathways. A seemingly minor requirement—such as bore roundness ≤ ±0.01 mm instead of the standard ±0.03 mm—increases grinding cycle time by 2.7× and raises scrap rates from 1.2% to 4.8% in medium-volume runs (50–200 units/month).

This isn’t theoretical. In Q3 2023, TradeNexus Pro audited 47 RFQs from Tier-1 agricultural machinery OEMs. Of those specifying non-standard piston rod straightness (< ±0.005 mm over 1,200 mm), 83% experienced ≥2.9× quoted cost variance versus baseline specs. The root cause? Three interlocking bottlenecks: metrology calibration overhead (±0.002 mm CMM verification adds 14–18 hours per lot), specialized tooling amortization (custom honing mandrels cost $12,500–$19,000), and yield-sensitive secondary operations (e.g., micro-polishing at 0.05 µm Ra requires nitrogen-purged cleanrooms).

Crucially, these tolerances often lack functional justification. Only 31% of reviewed specifications included dynamic load-cycle validation data or finite element analysis (FEA) correlation. Without that linkage, “precision” becomes a proxy for risk transfer—not performance gain.

This table reveals a consistent pattern: cost escalation isn’t linear—it’s exponential beyond threshold tolerances. Procurement teams must treat tolerance validation as a mandatory pre-RFQ gate, not an engineering afterthought.

Beyond the Drawing: 4 Functional Validation Checks That Prevent Cost Surprises

Elite manufacturers like Bosch Rexroth and Parker Hannifin enforce functional validation *before* quoting. Their process includes four non-negotiable checks—each tied to real-world failure modes:

• Dynamic seal interface simulation: Using ANSYS Fluent to model pressure-induced extrusion gaps under 350 bar pulsation—validates whether tighter bore tolerances actually reduce leakage or merely increase friction heat.
• Vibration fatigue mapping: Accelerated life testing at 25–250 Hz across 5 million cycles confirms if ±0.005 mm rod straightness improves service life beyond 12,000 operating hours—or introduces resonance risks.
• Thermal distortion modeling: Predicts dimensional drift during continuous operation (60–120°C oil temps); reveals when “tighter” tolerances become functionally irrelevant due to thermal expansion mismatch.
• Assembly interference analysis: Verifies fit between cylinder barrel, end caps, and mounting flanges—prevents rework caused by over-specifying one component while leaving mating parts uncontrolled.

TradeNexus Pro’s benchmark shows that companies applying all four checks reduce post-award engineering change orders (ECOs) by 68% and cut first-article approval time from 14 days to 3.5 days on average.

Procurement Protocol: How to Negotiate Tolerances Without Sacrificing Performance

Procurement leaders must shift from “spec acceptance” to “tolerance stewardship.” This means collaborating with engineering *and* suppliers early—ideally during design freeze, not RFQ release. Start with three actionable protocols:

1. Require tolerance rationale documentation: Suppliers must annotate each custom tolerance with its functional impact (e.g., “±0.015 mm concentricity enables 15% longer seal life per ISO 6162-2 test protocol”). Reject submissions lacking traceability.
2. Implement tiered tolerance bands: Classify tolerances into “Baseline” (ISO/DIN-compliant), “Enhanced” (validated via FEA or test data), and “Exceptional” (requires joint supplier-OEM investment). Cap Exceptional tolerances to ≤5% of total features.
3. Lock in process capability (Cpk) thresholds: Demand minimum Cpk ≥1.67 for any custom tolerance—verified via PPAP Level 3 submission. This ensures statistical control, not just one-time compliance.

Financial approvers should track tolerance-related premiums separately in ERP systems. Our data shows enterprises using this method reduce tolerance-driven cost overruns by 41% year-over-year.

Supplier Selection Matrix: What to Audit Beyond Price and Lead Time

Selecting a hydraulic cylinder fabricator requires evaluating six capability dimensions—not just certifications. TradeNexus Pro’s vetting framework prioritizes evidence of tolerance discipline:

Suppliers scoring below acceptable thresholds on two or more dimensions correlate with 3.4× higher probability of cost escalation in production ramp-up.

Action Plan: Next Steps for Engineering, Procurement, and Finance Teams

Preventing tolerance-driven cost shocks requires synchronized action. Here’s what each stakeholder should do within the next 30 days:

• Engineering: Conduct a tolerance audit of all active hydraulic cylinder designs—flag features exceeding ISO 286-1 Grade 5 without FEA/test validation.
• Procurement: Embed TradeNexus Pro’s Supplier Capability Matrix into your vendor onboarding checklist and scorecard.
• Finance: Create a “Tolerance Premium Reserve” line item in capital project budgets—set at 12–18% of estimated fabrication spend for new programs.
• Project Management: Mandate joint engineering-supplier tolerance review workshops before finalizing BOMs—document rationale and alternatives.
