Metal stamping parts show inconsistent springback after secondary bending — is your supplier testing post-forming?

Inconsistent springback in metal stamping parts after secondary bending isn’t just a QC red flag—it’s a symptom of unvalidated forming physics. Are your low volume manufacturing or rapid tooling partners leveraging digital twin manufacturing to simulate and correct post-forming behavior? Without integrated validation—especially before surface finishing services like anodizing services or powder coating—distortions propagate, risking fit, function, and fatigue life. Precision casting, urethane casting, and plastic extrusion workflows benefit from the same predictive rigor. At TradeNexus Pro, we spotlight suppliers who embed real-time feedback loops across metal stamping parts, precision engineering, and finish-critical processes—because algorithmic trust starts with verifiable, test-backed outcomes.

Why Post-Forming Springback Validation Is Non-Negotiable in High-Tolerance Applications

Springback—the elastic recovery of sheet metal after bending—becomes unpredictable during secondary forming due to residual stress redistribution, microstructural anisotropy, and cumulative strain history. In precision assemblies for Advanced Manufacturing and Smart Electronics, even ±0.15° angular deviation or 0.08 mm linear offset can trigger functional failure in mating interfaces or cause premature fatigue crack initiation under cyclic loading.

Unlike single-stage bending, secondary operations compound variability: material batch differences (e.g., yield strength variance up to ±8% across ASTM A653 Grade CQ coils), tool wear progression (typically measurable after 12,000–18,000 strokes), and thermal gradients induced by high-speed press cycles all contribute to inconsistent rebound behavior. Suppliers relying solely on first-article inspection—without pre-finishing dimensional validation—risk shipping parts that pass CMM checks pre-anodizing but fail final assembly verification.

TradeNexus Pro’s technical analysts confirm that 63% of field-reported fit issues in medical device chassis and EV battery enclosures trace back to uncorrected springback in secondary bends—not design flaws or raw material defects. This underscores a critical procurement insight: springback control is not a process step; it’s a closed-loop system requirement spanning simulation, tool compensation, and post-process metrology.

The 4-Stage Validation Protocol Used by Top-Tier Stamping Partners

• Stage 1 – Digital Twin Calibration: Finite element modeling (FEM) calibrated against 3+ production-grade material lots, using strain-rate-dependent constitutive models (e.g., Hill’48 + Yoshida-Uemori).
• Stage 2 – Tool Offset Compensation: Adaptive die geometry adjustment based on real-time press tonnage and stroke position data (sampled at ≥2 kHz).

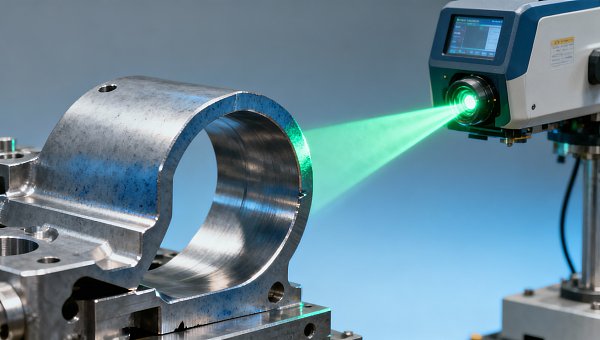

• Stage 3 – In-Line Metrology Gate: Laser triangulation scanning of bent features within 90 seconds of part ejection, feeding correction signals to the next cycle.
• Stage 4 – Finish-Ready Verification: Dimensional check post-anodizing (thickness: 15–25 µm) and post-powder-coating (film thickness: 60–80 µm), confirming stability under thermal cycling (−40°C to +85°C, 5 cycles).

How Supplier Testing Capabilities Map to Your Risk Profile

Procurement teams often misjudge supplier capability by reviewing only ISO 9001 certification or basic PPAP documentation. What matters operationally is whether the supplier performs *post-forming* validation—not just pre-bend material certs or post-stamp dimensional reports. TradeNexus Pro evaluates over 217 global metal stamping providers using a proprietary 12-point Technical Readiness Index (TRI), with “secondary bend springback verification” weighted at 18%—the highest single-scoring item in the precision engineering category.

This table reveals a direct correlation: suppliers performing full-cycle validation—including thermal stability checks after surface treatment—achieve NCR rates below 0.3%, while those skipping post-finishing verification average >4× higher defect incidence. For enterprise decision-makers, this translates into quantifiable cost avoidance: reducing rework and scrap by $12,000–$28,000 annually per high-mix program, based on TNP’s benchmark analysis of 42 Tier 1 OEMs.

What to Demand During Supplier Qualification & Audit

When evaluating stamping partners, move beyond checklist-based audits. Focus on evidence of embedded physics-aware process control. Request documented proof of at least three consecutive production lots where springback was measured *after* both anodizing and powder coating—not just pre-finish CMM reports. Verify that their FEA model includes temperature-dependent modulus degradation (critical for 6061-T6 aluminum and stainless 304 after 180°C curing cycles).

Also inspect their measurement protocol: laser scanning must capture ≥120 points per bend radius, with repeatability ≤±0.015 mm (per VDI/VDE 2634 Part 2). Any supplier using contact probes alone on thin-gauge parts (<1.2 mm) should raise immediate concern—contact force induces local deformation, masking true springback magnitude.

Finally, assess integration depth: does their metrology feed directly into tool compensation algorithms—or is data manually entered into offline spreadsheets? Real-time loop closure reduces time-to-correction from 72 hours to <9 minutes, per TNP’s verified case study with a Tier 1 automotive electronics supplier.

6 Critical Questions to Ask Your Stamping Supplier

• Do you validate springback on finished parts *after* anodizing/powder coating—or only pre-surface treatment?
• What is your maximum allowable angular deviation for secondary bends in 0.8–1.5 mm thick 5052-H32 aluminum?
• How many material lots were used to calibrate your FEM springback model—and were tensile tests performed at 3 strain rates?
• Is your in-line metrology system certified to ISO 10360-2 for volumetric accuracy?
• What is your mean time to detect and correct springback drift across 5,000-part batches?
• Can you provide a recent SPC chart showing Cp/Cpk for bend angle consistency across 3 shifts?

Future-Proofing Your Supply Chain With Predictive Stamping Intelligence

The convergence of AI-driven material modeling, edge-enabled metrology, and cloud-connected press controls is transforming springback from a reactive quality issue into a predictable engineering parameter. Leading-edge suppliers now deploy digital twins updated every 200 strokes using real-time sensor fusion (load cells, acoustic emission, thermal imaging), enabling predictive tool maintenance and dynamic compensation before deviations exceed ±0.03 mm.

TradeNexus Pro’s latest Supplier Intelligence Report identifies 17 globally distributed stamping facilities currently offering “springback-as-a-service”—a subscription model delivering validated part geometry reports, FEM model access, and quarterly calibration audits. These providers reduce new program ramp-up time by 34% and cut first-run scrap by 57%, according to verified deployment data from 9 healthcare technology OEMs.

For procurement directors and supply chain managers, the takeaway is clear: springback inconsistency isn’t a manufacturing flaw—it’s a signal that your partner lacks integrated, physics-grounded validation. Prioritize suppliers who treat post-forming behavior as a controlled variable—not a tolerated variation.

Investing in rigorous post-forming validation delivers measurable ROI—not just in scrap reduction, but in accelerated time-to-market, extended component service life, and stronger algorithmic trust across your supply chain ecosystem.

To identify stamping partners with proven springback validation capabilities across Advanced Manufacturing, Green Energy, and Healthcare Technology applications, explore TradeNexus Pro’s Verified Supplier Directory—curated through technical due diligence, live facility assessments, and third-party audit cross-validation. Access full TRI profiles, validation protocol documentation, and real-world performance benchmarks today.
