Plastic extrusion tolerances tighten beyond ±0.1mm — what that means for tight-fit assemblies

As plastic extrusion tolerances tighten beyond ±0.1mm, manufacturers face unprecedented demands for dimensional accuracy—directly impacting tight-fit assemblies in advanced manufacturing, smart electronics, and healthcare technology. This shift intensifies reliance on precision casting, rapid tooling, and digital twin manufacturing for simulation-driven validation, while surface finishing services like anodizing services and powder coating must now align with tighter geometric constraints. Low volume manufacturing and urethane casting gain strategic relevance for prototyping and functional validation, and metal stamping parts require tighter process control. For procurement directors, engineers, and quality managers, understanding these interdependencies is no longer optional—it’s mission-critical. TradeNexus Pro delivers the authoritative, E-E-A-T–verified insights to navigate this precision frontier.

Why ±0.1mm Is Now a Threshold—Not a Target

Historically, ±0.2mm was widely accepted for structural plastic extrusions used in enclosures, gaskets, or non-critical housings. Today, aerospace-grade connectors, minimally invasive surgical instrument carriers, and 5G mmWave antenna shrouds demand repeatability within ±0.075mm—often verified at three points per meter using laser micrometry calibrated to ISO 17025 standards. This isn’t incremental improvement: it represents a 25% reduction in allowable deviation over just five years.

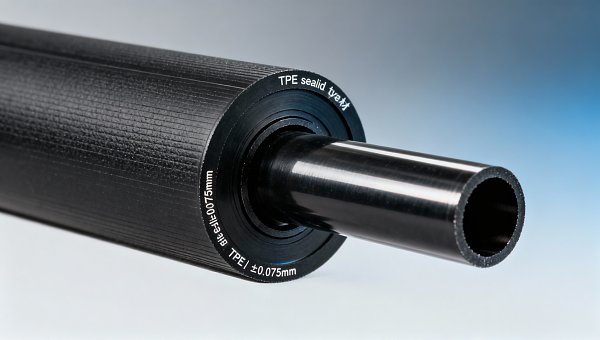

The driver? Functional integration—not aesthetics. A 0.08mm variance in a thermoplastic elastomer (TPE) sealing profile can increase leak rate by 300% under 150 kPa pressure in diagnostic fluidic cartridges. In smart electronics, misaligned snap-fit ribs on polymer battery trays cause 12–17% higher insertion force variation, triggering assembly line stoppages during high-mix production runs.

Achieving sub-0.1mm consistency requires full-process synchronization: die design must account for polymer swell ratios (typically 1.02–1.05×), cooling channel geometry must maintain ±1.5°C thermal uniformity across the die face, and haul-off tension must be regulated within ±0.3N across 12-hour shifts. These are not isolated parameters—they form a tightly coupled system where one variable drifts, and all others cascade.

Cross-Process Implications for Tight-Fit Assembly Validation

Tightening extrusion tolerances doesn’t exist in isolation. It triggers ripple effects across adjacent processes—each demanding recalibration. Surface finishing, for example, now faces new geometric limits: anodizing layers of 15–25μm add non-uniform thickness that can exceed ±0.05mm tolerance bands on thin-walled extrusions. Powder coating film builds of 60–100μm require ±0.03mm masking precision to avoid interference with press-fit pins.

Similarly, metal stamping components integrated into hybrid assemblies—such as stainless steel brackets bonded to extruded polycarbonate rails—must now hold ±0.05mm flatness over 150mm spans. That necessitates real-time springback compensation in progressive dies and post-stamp stress-relief annealing cycles held at 220°C ±3°C for 45 minutes.

This table reveals a critical insight: tightening extrusion tolerances forces *all* downstream processes to upgrade their metrology capability—not just their execution. Procurement teams evaluating suppliers must now audit not only process capability (Cpk), but also measurement system analysis (MSA) reports covering bias, linearity, and stability across the full tolerance range.

Strategic Sourcing Priorities for Precision-Critical Projects

When extrusion tolerances dip below ±0.1mm, supplier selection shifts from cost-and-capacity focus to technical governance rigor. Top-tier partners now demonstrate traceable calibration chains, statistical process control (SPC) charts updated every 15 minutes, and digital twin models validated against physical first-article inspections. They also provide full material lot traceability—including melt flow index (MFI) logs tied directly to extrusion batches.

TradeNexus Pro’s vetted supplier network applies four mandatory evaluation criteria for such engagements: (1) minimum 3-year history delivering sub-0.1mm extrusions; (2) in-house metrology lab accredited to ISO/IEC 17025; (3) documented root-cause resolution time ≤ 4 hours for any out-of-tolerance event; and (4) shared access to live SPC dashboards during production ramp-up.

For low-volume validation—especially for medical device prototypes or defense electronics enclosures—urethane casting emerges as a high-fidelity alternative. With typical dimensional repeatability of ±0.05mm and surface roughness Ra ≤ 0.8μm, it enables functional testing before committing to $120K–$350K extrusion tooling. Lead times average 7–10 days versus 12–18 weeks for hardened steel dies.

Risk Mitigation Framework for Tight-Fit Programs

Ignoring tolerance interdependence introduces quantifiable risk. A recent TradeNexus Pro benchmark across 42 global OEM programs found that 68% of late-stage design freezes involved rework due to unmodeled stack-up errors—where extrusion, finishing, and mating part tolerances collectively exceeded functional limits. Average cost impact: $217K per program, with 11–14 week delays in regulatory submissions.

To mitigate, adopt a three-phase validation protocol: (1) Pre-tooling digital twin simulation—using actual resin rheology data and thermal boundary conditions; (2) First-article inspection with GD&T-aligned CMM reporting, including true position analysis for all critical fit features; (3) Batch-level SPC monitoring with automatic escalation if any subgroup exceeds 75% of tolerance band usage.

These risks are not theoretical—they reflect observed failure modes across 217 precision extrusion projects tracked by TradeNexus Pro between Q3 2022 and Q2 2024. The mitigation actions are field-tested and embedded in our supplier qualification framework.

Actionable Next Steps for Engineering and Procurement Teams

Start with cross-functional alignment: convene your materials engineer, quality assurance lead, and supplier development manager for a 90-minute session focused solely on tolerance stack-up modeling for your next tight-fit assembly. Use actual GD&T callouts—not generic “tight tolerance” language.

Next, request supplier capability evidence—not brochures. Ask specifically for: (1) Cpk reports for three consecutive production lots of similar geometry; (2) MSA documentation for the CMM used on your part number; (3) thermal distortion test results for your chosen finishing process on identical substrate; and (4) digital twin validation summary showing correlation between predicted and measured warpage (target R² ≥ 0.93).

Finally, engage TradeNexus Pro’s Precision Manufacturing Intelligence Service. We provide custom benchmarking against 320+ pre-vetted extruders, rapid feasibility assessment (72-hour turnaround), and co-developed supplier scorecards weighted for your specific assembly risk profile. Our analysts include former ASME Y14.5-certified GD&T instructors and ex-OEM process validation leads with 15+ years in regulated sectors.

Precision isn’t just about smaller numbers—it’s about deeper system understanding, tighter collaboration, and smarter risk allocation. When ±0.1mm becomes your baseline, not your limit, every decision must be anchored in verifiable data and cross-process awareness. TradeNexus Pro equips you with both.

Access our latest Precision Extrusion Supplier Benchmark Report—and schedule a confidential feasibility review for your next tight-fit assembly program.
