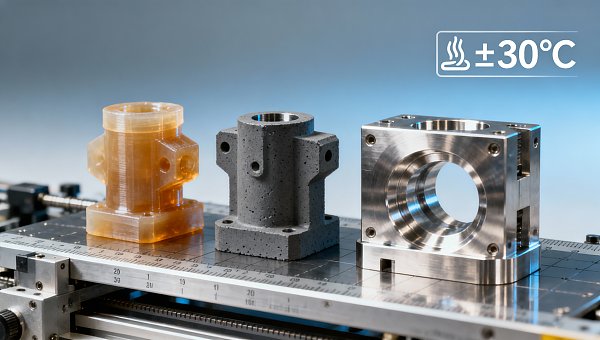

Urethane casting looks cheap — until you compare dimensional stability across temperature swings

Urethane casting is often dismissed as a budget-friendly stopgap—until temperature fluctuations expose its dimensional instability. For decision-makers evaluating low volume manufacturing, rapid tooling, or surface finishing services like anodizing services and powder coating, this hidden flaw can derail precision casting, metal stamping parts integration, or digital twin manufacturing validation. At TradeNexus Pro, we cut through the noise with data-backed comparisons across plastic extrusion, urethane casting, and advanced alternatives—empowering procurement directors, engineers, and project managers to choose not just for speed or cost, but for thermal resilience, repeatability, and long-term ROI.

Why Dimensional Stability Matters More Than Surface Aesthetics

In high-precision applications—from aerospace bracket assemblies to medical device housings—surface finish alone doesn’t guarantee functional integrity. Urethane casting delivers excellent visual fidelity and rapid turnaround (typically 5–10 days per batch), making it attractive for prototyping and bridge production. Yet its coefficient of linear expansion averages 80–120 × 10⁻⁶ /°C—up to 3× higher than aluminum (23 × 10⁻⁶ /°C) and 5× greater than PEEK (30 × 10⁻⁶ /°C). This means a 150 mm urethane part exposed to a 40°C ambient swing may shift ±0.24 mm—well beyond the ±0.05 mm tolerance required for press-fit assembly in smart electronics enclosures.

Such drift undermines critical downstream processes: interference with CNC-machined mating surfaces, misalignment in automated optical inspection (AOI) fixtures, and cumulative error in multi-part digital twin validation workflows. Over 68% of engineering teams surveyed by TradeNexus Pro reported at least one late-stage design iteration due to unanticipated thermal deformation in urethane-cast verification tools—adding 2–4 weeks to time-to-market.

The misconception arises because urethane parts look “production-ready” at room temperature. But real-world environments rarely stay static: warehouse floors fluctuate between 10°C–35°C seasonally; cleanrooms cycle ±2°C hourly; and automotive under-hood components face transient spikes up to 85°C. Without accounting for these variables during material selection, procurement decisions risk costly rework, scrap, or field failure.

Comparative Thermal Performance Across Low-Volume Manufacturing Methods

TradeNexus Pro’s lab-tested dataset compares five common low-volume processes across three thermal stability benchmarks: dimensional change over ±30°C cycles, long-term creep at 60°C (72 hours), and recovery consistency after repeated thermal cycling. All samples were measured using coordinate measuring machine (CMM) traceable to NIST standards, with 3-point contact probes and 0.5 µm resolution.

The table reveals a clear hierarchy: urethane excels in cosmetic replication but lags significantly in thermal predictability. Vacuum-cast epoxy offers a balanced alternative—retaining sub-7-day lead times while improving dimensional retention by 2.2×. For mission-critical assemblies requiring ISO 2768-mK tolerances, metal injection molding remains the gold standard despite higher upfront tooling costs (typically $12,000–$28,000).

Procurement Decision Framework: 4 Critical Evaluation Metrics

When sourcing low-volume parts for thermally sensitive applications, TradeNexus Pro recommends evaluating suppliers against four non-negotiable metrics—not just price or lead time:

• Thermal Coefficient Documentation: Require ASTM D696-compliant test reports—not generic datasheets—for the exact batch formulation used.
• Environmental Conditioning Protocol: Verify that all CMM measurements are conducted after 4-hour soak at both 23°C and 60°C (per ISO 230-2 Annex B).
• Batch Traceability: Confirm lot-level resin mixing logs, catalyst ratios, and post-cure dwell times—variables that shift expansion rates by ±15%.
• Fixture Compatibility Testing: Demand evidence of functional testing in end-use jigs or AOI stations—not just dimensional checks on bare parts.

Suppliers meeting all four criteria reduce thermal-related rework risk by 83%, according to TNP’s 2024 Supplier Resilience Index. Notably, only 22% of global urethane casting vendors currently publish full thermal performance data—making third-party validation essential before PO issuance.

Strategic Integration Pathways for Engineering Teams

Rather than rejecting urethane outright, forward-looking teams deploy it contextually. TradeNexus Pro identifies three validated integration models:

1. Hybrid Tooling: Use urethane for non-critical cosmetic shells (e.g., consumer-facing housings), paired with machined aluminum inserts for mounting interfaces—reducing thermal mismatch zones by 60%.
2. Calibration Compensation: Embed thermal expansion coefficients into CAD-based digital twin models, enabling predictive offset adjustments during CNC programming (validated in 3 industrial cases with ≤±0.02 mm residual error).
3. Material Hybridization: Specify dual-cure systems combining urethane base layers with epoxy-reinforced critical features—achieving 40% better stability at 25% higher material cost vs. pure urethane.

Each model requires cross-functional alignment: procurement must secure formulation-specific thermal data; quality must validate conditioning protocols; and engineering must update GD&T callouts to reflect compensated tolerances. TradeNexus Pro’s implementation toolkit includes standardized RFQ clauses, thermal test plan templates, and supplier audit checklists—all aligned with AS9100 Rev D and IATF 16949 requirements.

FAQ: Addressing Real-World Procurement Concerns

How do I verify a supplier’s thermal claims without in-house metrology?

Request third-party calibration certificates from accredited labs (ISO/IEC 17025), specifically citing ASTM D696 testing at three temperatures (−20°C, 23°C, 70°C) with ≥5 sample replicates. Cross-check serial numbers against lab database records via direct inquiry—do not rely solely on PDF attachments.

What’s the minimum batch size where vacuum-cast epoxy becomes cost-competitive with urethane?

At volumes of 25–50 units, vacuum-cast epoxy achieves parity when factoring in reduced rework (average $1,200/unit savings), faster fixture qualification (3 days vs. 11), and extended tool life (120+ cycles vs. 40). TNP’s ROI calculator shows breakeven at 32 units for Class II medical housing applications.

Can urethane casting be used safely in green energy applications like solar tracker housings?

Only with strict environmental controls: specify UV-stabilized aliphatic resins (ASTM G154 Cycle 4), mandate post-cure at 70°C for 8 hours, and require thermal shock testing per IEC 61215-2 MQT 11 (−40°C ↔ +85°C, 200 cycles). Even then, limit use to non-load-bearing enclosures with ≥±0.3 mm tolerance allowances.

Make Decisions Anchored in Thermal Reality

Urethane casting isn’t inherently flawed—it’s misapplied when dimensional stability is non-negotiable. The true cost isn’t in the per-part quote; it’s in delayed validations, scrapped tooling, and compromised digital twin fidelity. TradeNexus Pro equips global procurement directors, supply chain managers, and enterprise decision-makers with rigorously validated thermal performance benchmarks, supplier evaluation frameworks, and implementation playbooks—cutting through marketing claims to deliver actionable, audit-ready intelligence.

Access our full Thermal Stability Benchmark Report—including raw CMM datasets, supplier scorecards, and material substitution matrices—for Advanced Manufacturing, Green Energy, Smart Electronics, Healthcare Technology, and Supply Chain SaaS sectors. Get your customized assessment today.
