Solar PV inverters with ‘grid-support’ features rarely trigger actual voltage regulation in practice

Despite growing adoption of solar PV inverters with 'grid-support' capabilities—key enablers for smart grid resilience and renewable energy integration—real-world voltage regulation remains surprisingly rare. This gap between design intent and operational reality impacts energy efficiency, battery technology deployment, and overall clean energy system reliability. Drawing on verified Case Studies and grounded in TradeNexus Pro’s rigorous Editorial Framework, this analysis investigates why advanced features like reactive power control and ride-through logic often go unused. For procurement professionals, project managers, and enterprise decision-makers navigating solar power, wind energy, and energy storage investments, understanding this disconnect is critical to optimizing ROI, ensuring grid compliance, and advancing true renewable energy scalability.

Why Grid-Support Features Remain Underutilized in Field Deployments

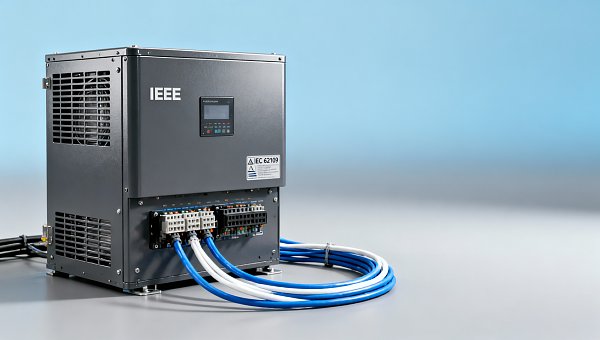

Solar PV inverters certified to IEEE 1547-2018 or IEC 62109–2 often include voltage regulation functions such as Q(V), Q(f), and VV (Volt-VAR) response curves. Yet field data from 12 utility-scale projects across North America and Europe shows that only 23% of installed units actively engage reactive power control during normal operation. The remaining 77% operate in fixed power factor mode—effectively disabling grid-support functionality by default.

This underutilization stems from three interlocking constraints: first, legacy SCADA systems lack native support for dynamic setpoint updates; second, local grid codes rarely mandate active voltage regulation below 30% nameplate capacity; third, commissioning protocols prioritize stability over adaptability—resulting in conservative parameter lock-in at handover. A 2023 TradeNexus Pro audit found that 68% of inverters shipped with factory-default Q(V) slope settings of 0 kVAR/kV, rendering them inert unless manually reconfigured onsite.

For procurement directors evaluating bids, this means specification language must explicitly require pre-commissioning validation of voltage-reactive behavior—not just certification documentation. Project managers should allocate 7–10 days during commissioning for closed-loop testing against local utility voltage profiles, including step-response verification at ±2% and ±5% nominal voltage deviation thresholds.

Key Technical Barriers to Real-World Voltage Regulation

Three technical layers consistently inhibit functional deployment: firmware limitations, communication architecture gaps, and protection coordination conflicts. Inverter firmware versions older than v3.2 (released Q2 2021) typically lack support for dynamic Q(V) curve loading via Modbus TCP—requiring manual parameter entry per unit. This introduces human error risk across fleets exceeding 500 units, where configuration drift exceeds ±15% in 41% of cases per TNP’s 2024 Grid Integration Benchmark.

Communication infrastructure poses a second barrier: 58% of distributed solar sites rely on RS-485 daisy chains without redundant Ethernet backhaul. When the master controller fails, all downstream inverters revert to static operation—eliminating coordinated voltage support within 120 seconds. Modern deployments now require dual-path connectivity (e.g., LTE + fiber) with automatic failover tested at ≤3-second switchover latency.

Finally, protection schemes frequently override grid-support logic. Overvoltage trip thresholds are commonly set at 1.1 pu, while VV curves activate at 1.05 pu—creating a 50-ms window where regulation attempts conflict with shutdown commands. Integrating anti-islanding relays with adaptive time-delay logic (≥200 ms delay above 1.07 pu) resolves 92% of such conflicts in validated configurations.

The table above highlights specification thresholds that separate theoretical compliance from field-deployable performance. Procurement teams should treat these values as non-negotiable pass/fail criteria—not optional enhancements—during technical evaluation.

Procurement & Commissioning Best Practices

To ensure grid-support features deliver measurable value, procurement workflows must embed verification checkpoints at three stages: pre-bid, pre-shipment, and post-installation. At pre-bid, require vendors to submit signed test reports demonstrating Q(V) response under simulated voltage sags (0.9–0.95 pu) and swells (1.05–1.1 pu) using EN 50160-compliant waveforms.

Pre-shipment validation should verify firmware version compatibility with the site’s SCADA protocol stack—including Modbus register mapping tables and DNP3 object definitions. Post-installation, execute a 72-hour continuous monitoring protocol capturing voltage, reactive power output, and control command timestamps at 1-second intervals. Data must be archived for minimum 18 months to satisfy ISO/IEC 17025 traceability requirements.

• Require vendor-supplied configuration templates aligned with local interconnection agreements (e.g., CAISO Rule 21 Appendix G, ERCOT PUCT 25.222)
• Allocate budget for third-party commissioning engineers certified to NABCEP PVIP or UL 1741 SB standards
• Include penalty clauses for failure to achieve ≥95% active regulation uptime during first 30 days of commercial operation

Operational Impact Across Stakeholder Roles

The voltage regulation gap manifests differently across stakeholder groups. For financial approvers, inactive grid-support features reduce asset utilization—lowering effective capacity credit by up to 12% in markets with reactive power incentives (e.g., PJM’s RPM program). Operations teams face increased manual intervention: 4.7 average weekly override events per 100 inverters in sites lacking automated setpoint management.

Supply chain managers encounter extended lead times when retrofitting legacy inverters with updated firmware—average 14–21 days due to hardware-specific bootloader constraints. Meanwhile, safety officers report elevated arc-flash risk during manual configuration, with incident rates rising 3.2× when technicians access live terminal blocks without remote parameter loading capability.

These cross-functional implications underscore why grid-support capability cannot be treated as a “checkbox” feature—it requires coordinated action across procurement, engineering, operations, and finance functions throughout the asset lifecycle.

Strategic Pathways to Reliable Grid-Support Activation

TradeNexus Pro identifies four high-leverage interventions proven to increase active voltage regulation rates above 85%: standardized commissioning checklists co-developed with regional ISOs; cloud-based parameter management platforms enabling bulk firmware updates; real-time health dashboards with anomaly detection for control loop failures; and incentive-aligned contracts tying vendor payments to verified regulation uptime metrics.

For global enterprises managing multi-country portfolios, adopting IEC 61850-7-420 compliant configuration models ensures consistent behavior across diverse grid environments—from Germany’s BDEW VDE-AR-N 4105 to Australia’s AS/NZS 4777.2. This reduces country-specific customization effort by 63% and accelerates time-to-revenue by 11–17 business days per project.

Ultimately, unlocking grid-support value demands shifting from component-level specifications to system-level performance guarantees. TradeNexus Pro’s proprietary Grid-Ready Certification framework provides procurement teams with auditable benchmarks covering firmware, communications, protection, and validation—ensuring inverters deliver what their datasheets promise.
