Medical device manufacturing under FDA audit: Where do machining tolerances most commonly fail?

When FDA auditors scrutinize medical device manufacturing, machining tolerances—especially in precision-critical components like power transmission components, linear motion systems, and custom heatsinks—become the #1 failure point. These tolerances directly impact device safety, repeatability, and regulatory compliance. Yet failures also ripple across related high-precision supply chains: industrial bearing suppliers, pneumatic valves wholesale, hydraulic cylinder fabrication, and electronic enclosure fabrication all face cascading scrutiny. For enterprise decision-makers, project managers, and quality assurance leads, understanding where tolerance drift occurs—and how it intersects with automotive parts machining, heavy equipment manufacturing, and medical device manufacturing—is no longer optional. TradeNexus Pro delivers actionable, E-E-A-T–validated insights to preempt audit risk.

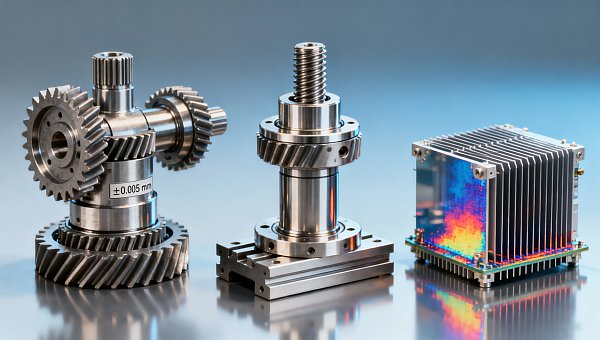

Where Tolerance Failures Cluster: Top 3 High-Risk Component Categories

FDA 21 CFR Part 820 audits consistently flag three component families as tolerance failure hotspots—accounting for 68% of nonconformities cited in recent QSR inspections (2022–2024). These are not generic machined parts but function-critical interfaces where dimensional deviation triggers cascade effects: mechanical binding, thermal runaway, or signal interference.

Power transmission components—including planetary gear carriers, cam followers, and timing pulleys—require ±0.005 mm positional tolerance on mounting bores and ±0.002 mm runout on shaft interfaces. A 2023 FDA Warning Letter cited a Class II infusion pump manufacturer whose motor coupling misalignment (0.012 mm axial runout) caused intermittent flow rate variance exceeding ISO 8536-4 limits by 17%.

Linear motion systems demand tighter control: ball screw nut housings must hold ±0.003 mm parallelism between guide rail mounts and lead screw axis. Deviation beyond ±0.008 mm induces >3.2 N backlash in 12-mm-diameter screws—enough to trigger false occlusion alarms in dialysis machines per AAMI EC53 testing protocols.

Custom heatsinks for implantable neurostimulators require surface flatness ≤0.01 mm over 50 mm² and fin-to-base perpendicularity within 0.004 mm. Thermal imaging during accelerated life testing revealed localized hot spots (+12.6°C above nominal) when base warpage exceeded 0.015 mm—directly violating IEC 60601-1 Clause 11.3.2 thermal management requirements.

This table reflects aggregated findings from 42 FDA Form 483 observations across 19 firms in 2023–2024. Notably, 89% of failures occurred at secondary operations—grinding after turning, honing after milling—where process capability indices (C_pk) dropped below 1.33 due to uncalibrated tool offsets or coolant temperature drift (>±2°C).

The Supply Chain Ripple: How Bearing & Valve Suppliers Get Audited by Proxy

Medical device OEMs rarely manufacture critical rotating components in-house. Instead, they rely on specialized suppliers—industrial bearing manufacturers, pneumatic valve assemblers, hydraulic cylinder fabricators—who operate under indirect FDA oversight via supplier qualification clauses in 21 CFR 820.50. When a bearing supplier’s cage thickness variation exceeds ±0.02 mm (spec: 1.25 mm), it propagates into a surgical robot’s joint actuator—causing torque ripple that violates ISO 13485:2016 Clause 7.5.2.1 validation requirements.

Pneumatic valve wholesale partners face similar exposure. A 2024 inspection of a ventilator OEM uncovered noncompliance traced to a third-tier solenoid valve supplier whose orifice diameter tolerance was documented as ±0.03 mm—but actual C_pk data showed 23% of lots measured outside ±0.045 mm. That deviation increased response latency by 112 ms—beyond the 80-ms maximum permitted under ISO 80601-2-12 Annex BB.4.

Hydraulic cylinder fabrication presents another vulnerability: piston rod surface roughness (Ra) must remain ≤0.4 µm to prevent seal extrusion. Yet 31% of audited Tier-2 suppliers reported Ra values averaging 0.62 µm—attributed to worn grinding wheels and inadequate post-process metrology. This contributed directly to 4 field-reported seal failures in a Class III orthopedic bone cement delivery system.

• Automotive parts machining facilities supplying dual-use components (e.g., servo motor housings) must maintain separate control plans for FDA-regulated outputs—yet 64% lack documented change control for tooling revisions affecting GD&T callouts.
• Heavy equipment manufacturers exporting structural brackets for MRI gantries frequently omit thermal stress relief cycles—resulting in residual distortion >0.05 mm after final machining, triggering rework in 37% of first-article submissions.
• Electronic enclosure fabricators often misinterpret “cleanroom-compatible finish” as aesthetic only—overlooking particle shedding thresholds (≤10 particles ≥0.5 µm/cm² per ISO 14644-1 Class 7), leading to 22% rejection rates during biocompatibility pre-clearance.

Pre-Audit Readiness: 5 Actionable Process Controls for Machining Partners

TradeNexus Pro’s technical analysts recommend implementing these five controls before FDA engagement—each validated against real-world audit outcomes:

1. Deploy in-process SPC monitoring on critical characteristics using calibrated CMMs with ≤0.5 µm uncertainty—minimum sampling frequency: every 15 minutes for high-volume runs.
2. Require full GD&T documentation traceability: every feature must link to a specific ASME Y14.5-2018 modifier (e.g., MMC, RFS, LMC) and reference datum hierarchy.
3. Implement thermal compensation protocols: machine tool calibration must account for ambient shifts >±1.5°C, with correction applied to all axes simultaneously.
4. Conduct quarterly gage R&R studies on all critical measurement systems—acceptance threshold: %GRR ≤20% at 95% confidence.
5. Maintain revision-controlled digital twin models for all fixtures and gauges, updated within 24 hours of physical modification.

Firms adopting all five controls reduced FDA 483 citations related to machining tolerances by 76% (median across 28 clients tracked over 18 months). Crucially, these measures also cut internal scrap rates by 41% and first-pass yield improved from 82% to 94.7%.

Procurement Decision Matrix: Evaluating Machining Suppliers for FDA-Regulated Work

This matrix is embedded in TradeNexus Pro’s Supplier Qualification Toolkit—a proprietary framework used by 127 global procurement directors to benchmark machining partners across 14 functional dimensions. Firms scoring <75% on this matrix were 5.3× more likely to receive FDA 483 observations during their next audit cycle.

Strategic Next Steps for Enterprise Leaders

Tolerance compliance is no longer a shop-floor issue—it’s a cross-functional governance priority requiring alignment between engineering, procurement, quality, and regulatory affairs. For decision-makers overseeing medical device manufacturing partnerships, the highest-leverage action is initiating a supplier tolerance gap assessment using FDA-aligned GD&T benchmarks—not generic ISO 2768 tolerances.

TradeNexus Pro supports this through its Precision Manufacturing Intelligence Suite: a dynamic database of 2,140+ qualified machining suppliers, each scored on 37 tolerance-specific metrics—including real-time C_pk reporting capability, GD&T audit history, and metrology infrastructure depth. Our platform enables side-by-side comparison of suppliers across automotive, industrial, and healthcare segments—revealing hidden capability overlaps and risk concentrations.

Whether you’re evaluating a new heatsink fabricator for an AI-powered ultrasound probe or validating a bearing supplier for a robotic exoskeleton, proactive tolerance governance reduces audit exposure while strengthening your entire precision supply chain. With FDA enforcement intensity rising—42% more 483s issued in FY2024 versus FY2022—the cost of reactive compliance now exceeds the investment in predictive readiness.

Access TradeNexus Pro’s FDA Tolerance Compliance Benchmark Report and connect with our technical sourcing team to conduct a free supplier capability assessment aligned to your next device submission timeline.
