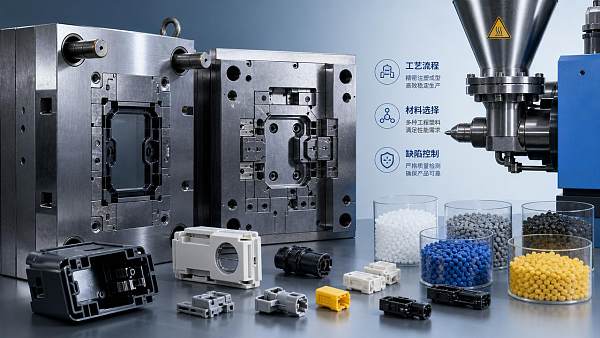

Plastic Injection Molding Explained: Process Steps, Material Options, and Common Part Defects

Plastic injection molding sits behind products that look simple on the surface but demand tight process control underneath. Housings, clips, connectors, medical disposables, appliance parts, and automotive interiors often depend on plasticinjectionmolding because it combines repeatability, speed, and scalable cost.

That matters even more in today’s cross-border industrial environment. Material volatility, supplier risk, compliance pressure, and design-to-cost targets have made plasticinjectionmolding a decision point rather than a routine purchase. A clear grasp of process steps, material choices, and common defects helps separate credible production capability from basic quoting.

Why plastic injection molding remains central to industrial supply chains

At its core, plasticinjectionmolding forms molten polymer inside a metal mold under controlled pressure and cooling conditions. The method is not new, yet it remains one of the most practical ways to produce complex parts at volume with consistent dimensions.

Its value comes from the balance it offers. Tooling can be expensive, but once a mold is stable, unit economics improve sharply. That is why the process appears across advanced manufacturing, smart electronics, healthcare technology, green energy systems, and even hardware used in digital supply chain infrastructure.

From the perspective of business intelligence platforms such as TradeNexus Pro, plasticinjectionmolding is also a useful lens for evaluating supplier maturity. It reveals how well a company manages engineering, materials, quality systems, and production discipline rather than only how aggressively it prices.

What actually happens during the molding process

A molded part is the result of several linked steps, not one single machine action. Small changes in any stage can affect appearance, strength, fit, and cycle time.

1. Material preparation

Plastic pellets are selected, blended if needed, and often dried before processing. Moisture-sensitive resins such as nylon, PET, and PC can develop defects quickly if drying is incomplete.

2. Plasticizing and injection

Inside the barrel, a rotating screw melts and meters the resin. The screw then pushes the melt into the cavity at a defined speed and pressure. Gate design and flow path strongly influence how evenly the part fills.

3. Packing and holding

After the cavity is filled, holding pressure compensates for resin shrinkage as cooling begins. This stage often decides whether the part stays dimensionally stable or develops sinks, voids, or warped areas.

4. Cooling and solidification

Cooling usually takes the largest share of the cycle. Mold temperature control, wall thickness, and resin behavior affect how fast heat leaves the part and whether stress builds unevenly.

5. Ejection and finishing

The mold opens and ejector systems release the part. Secondary work may include trimming gates, surface inspection, assembly, pad printing, ultrasonic welding, or dimensional verification.

In real production, plasticinjectionmolding quality depends on the interaction between machine settings, mold design, resin properties, and inspection discipline. Looking at only one factor rarely explains outcomes.

Material options and what they mean in practice

Material selection is often where cost, performance, compliance, and supply risk meet. Two parts can look similar while behaving very differently in service.

In many sourcing discussions, the issue is not just which resin performs best in theory. The better question is which material can meet performance targets, pass regulatory expectations, and stay available across production cycles.

That is especially relevant in sectors followed by TradeNexus Pro, where material substitution may affect flame ratings, biocompatibility, electrical performance, or environmental reporting.

Where common part defects come from

Defects in plasticinjectionmolding rarely appear by accident. Most trace back to a mismatch between design geometry, resin behavior, process settings, or mold condition.

Warping

Warping occurs when cooling or shrinkage is uneven. Thin-to-thick transitions, poor rib design, and unbalanced cooling channels are common causes.

Sink marks and voids

These defects often appear in thicker areas where the outer surface freezes before the inner material finishes shrinking. Holding pressure, gate placement, and wall design all matter.

Flash

Flash is excess material escaping at parting lines or around inserts. It can signal worn tooling, poor clamping balance, or excessive injection pressure.

Short shots

A short shot means the cavity did not fill completely. Flow length, venting, resin viscosity, and melt temperature should all be reviewed before blaming machine capacity alone.

Burn marks, silver streaks, and bubbles

These often point to trapped gas, moisture, thermal degradation, or unstable screw recovery. Cosmetic defects can also reveal deeper process inconsistency.

When evaluating plasticinjectionmolding suppliers, defect history should be discussed in terms of root-cause method, corrective action, and recurrence control, not only scrap percentages.

How to assess capability beyond the sample part

A polished prototype does not always prove robust mass production. More useful signals usually sit in the production system around the part.

• Check whether mold flow analysis, DFM review, and tolerance discussion happen before tooling release.
• Ask how resin traceability, drying records, and lot control are documented.
• Review how the supplier handles first article approval, process validation, and change management.
• Look at maintenance routines for molds, hot runners, cooling channels, and shut-off areas.
• Confirm whether dimensional inspection matches end-use risk rather than basic visual checking only.

This is where curated industrial research becomes valuable. In fragmented markets, comparing machine tonnage lists is easy; comparing execution quality is harder. Decision-grade editorial ecosystems help frame the right questions before commercial engagement begins.

Why the topic matters across multiple sectors

Plasticinjectionmolding is often discussed as a factory-floor technique, but its impact is broader. In smart electronics, it affects fit, shielding integration, and surface finish. In healthcare technology, it influences cleanliness, validation, and regulatory consistency.

In green energy applications, molded parts may sit inside connectors, battery-related assemblies, or protective housings where heat, chemicals, and outdoor exposure shape material decisions. In advanced manufacturing, tighter tolerances and automation readiness raise expectations for repeatability.

Even supply chain software and procurement platforms indirectly depend on better plasticinjectionmolding visibility because component reliability, vendor stability, and specification clarity affect digital sourcing outcomes.

A practical way to move from interest to evaluation

The most useful next step is to build a simple review framework. Start with part function, target environment, annual volume, compliance needs, and cosmetic expectations. Then compare those needs against resin choice, mold complexity, likely defects, and supplier controls.

For anyone researching plasticinjectionmolding through a platform like TradeNexus Pro, the goal is not only to understand the process in theory. It is to connect technical details with market intelligence, sourcing confidence, and better judgment about who can deliver consistent results at scale.

That approach makes later conversations sharper. Instead of asking only for price, it becomes possible to compare capability, risk, and fit with much greater precision.
