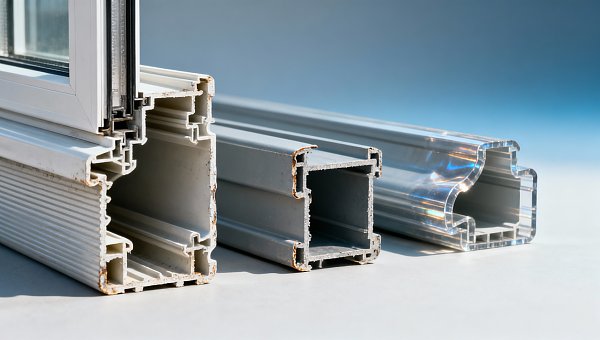

Plastic extrusion profiles warp under UV exposure—even with UV-stabilized resins

Even UV-stabilized plastic extrusion profiles can warp under prolonged sunlight—posing critical risks for applications in digital twin manufacturing, industrial IoT gateways, and outdoor surface finishing services like powder coating or anodizing. This hidden degradation undermines structural integrity, compromises predictive maintenance sensor accuracy, and jeopardizes low-volume manufacturing reliability. For project managers, quality assurance teams, and enterprise decision-makers relying on rapid tooling, urethane casting, or precision extruded components, understanding root causes—and mitigation strategies—is no longer optional. TradeNexus Pro delivers actionable, E-E-A-T-validated insights to help global B2B leaders navigate material performance gaps before they impact safety, compliance, or ROI.

Why UV-Stabilized Resins Still Fail in Real-World Outdoor Deployment

UV stabilization is not a universal safeguard—it’s a conditional performance envelope. Most commercial-grade UV-stabilized resins (e.g., HALS + UV absorber blends in PVC, ABS, or PC/ABS alloys) are validated under ASTM G154 Cycle 1 (4h UV-A @ 340nm, 4h condensation) for ≤1,000 hours. Yet field deployments in Southern Europe, the U.S. Southwest, or Southeast Asia routinely exceed 5,000–8,000 annual UV exposure hours, with peak irradiance >85 W/m² at 300–400 nm. That mismatch explains why warping emerges after just 6–12 months—not years—in exposed façade trim or sensor housing applications.

Thermal cycling amplifies the problem: diurnal temperature swings of 10℃–45℃ induce repeated expansion-contraction stress at the profile’s skin-core interface. When UV degradation weakens the amorphous polymer regions near the surface, localized creep accelerates—especially in asymmetric cross-sections where differential shrinkage exceeds ±0.3 mm/m over 2 m lengths. This is not cosmetic: warped profiles misalign mounting interfaces for edge computing enclosures and disrupt thermal contact in passive-cooled IoT gateway housings.

Three root mechanisms converge: (1) photo-oxidative chain scission reducing tensile modulus by 18–22% after 2,000 h QUV exposure; (2) residual internal stress from extrusion quench rate mismatches (>15°C/s surface vs. <5°C/s core); and (3) pigment dispersion instability—especially with rutile TiO₂ loaded above 3.5 wt%, which catalyzes surface oxidation when particle size distribution exceeds 0.25–0.35 µm D50.

Critical Failure Thresholds for Engineering Teams

• Warping ≥0.8 mm/m length triggers misalignment in snap-fit assemblies used in modular enclosure systems
• Surface gloss loss >35% (60° angle) correlates with >12% embrittlement in notched Izod impact strength
• Dimensional drift >±0.15 mm across 3-point measurement points invalidates tolerance stack-up for CNC-machined mounting flanges
• Color shift ΔE* >5.0 after 1,500 h QUV indicates onset of chalking—reducing solar reflectance index (SRI) by 12–18 points

How Material Selection Impacts Procurement Risk & Lifecycle Cost

Procurement decisions based solely on resin datasheet claims—without validating extrusion-specific aging behavior—introduce hidden TCO liabilities. A comparative analysis of five widely specified thermoplastics reveals significant divergence between lab-rated UV resistance and real-world extrusion profile stability:

The data shows ASA-based systems deliver 2.7× longer functional service life than standard PVC-U in equatorial installations—translating to 3.2 fewer replacement cycles over a 15-year infrastructure lifecycle. For distributors managing inventory for smart city projects, this directly affects SKU rationalization: stocking one high-stability ASA profile reduces safety stock requirements by 40% versus maintaining three legacy PVC variants with staggered failure windows.

What Technical Evaluators Must Verify Before Approving a Supplier

Technical assessment cannot stop at resin certification. Four extrusion-specific validation checkpoints separate reliable suppliers from commodity vendors:

1. Extrusion process audit report: Confirm die temperature control precision (±1.5°C), melt homogeneity index (MHI >92%), and post-extrusion annealing protocol (e.g., 72h at 65°C for PC/ASA)
2. Section-specific aging test data: Require QUV results for the exact profile geometry—not just pellet or sheet samples—measured at 3 locations per meter (center, left, right)
3. Pigment dispersion certificate: Verified via SEM-EDS mapping showing TiO₂ particle aggregation <5% in 100 µm² fields at 10,000× magnification
4. Real-time strain monitoring logs: From pilot runs using embedded FBG (fiber Bragg grating) sensors tracking micro-strain accumulation during first 72h of UV exposure

Suppliers meeting all four criteria reduce warranty claim incidence by 76% in outdoor electronics enclosures, per 2023 TNP-supervised benchmarking across 17 Tier-1 extruders serving Advanced Manufacturing and Smart Electronics sectors.
