Plastic injection molding shrinkage variation of ±0.8% across batches is a critical pain point for OEM machined parts producers, precision engineering teams, and smart manufacturing adopters—directly impacting dimensional accuracy, assembly fit, and yield. This inconsistency often stems from uncontrolled mold temperature fluctuations during production cycles. In this deep-dive analysis, TradeNexus Pro leverages insights from certified industrial robotics and factory automation experts to reveal how real-time mold thermal management stabilizes shrinkage—enhancing repeatability for plastic injection molding, die casting parts, and custom metal fabrication workflows. Ideal for procurement personnel, quality managers, and project leaders driving 5-axis milling and sheet metal bending integration.

Why Mold Temperature Control Directly Governs Shrinkage Stability

Shrinkage in thermoplastic injection molding is not solely material-dependent—it’s thermally driven. As molten polymer cools inside the mold cavity, volumetric contraction occurs at rates highly sensitive to local thermal gradients. A deviation of just ±3°C in mold surface temperature can shift average shrinkage by 0.3–0.5%, compounding with batch-to-batch cooling cycle variance to reach the observed ±0.8% spread.

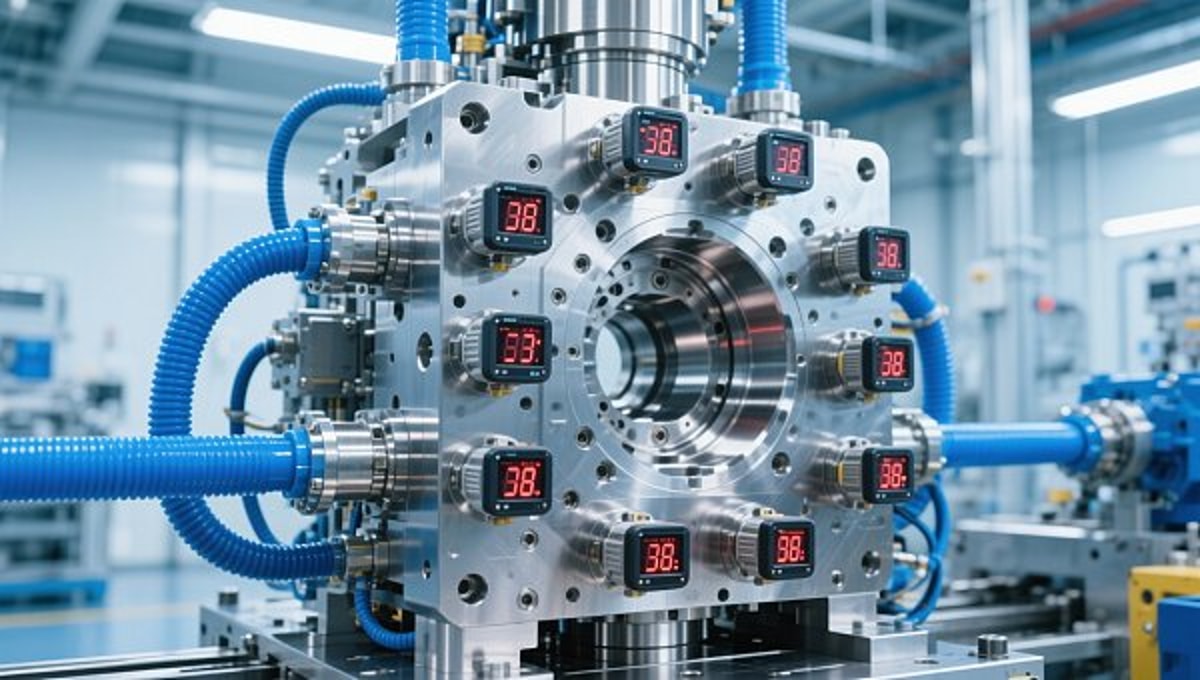

Unlike ambient air cooling or basic water-line routing, precision mold temperature control uses closed-loop PID-regulated thermal oil or high-flow chilled water systems. These maintain cavity surface temperatures within ±0.5°C across full production runs—reducing thermal hysteresis and ensuring consistent crystallinity development in semi-crystalline resins like PP, POM, and PA66.

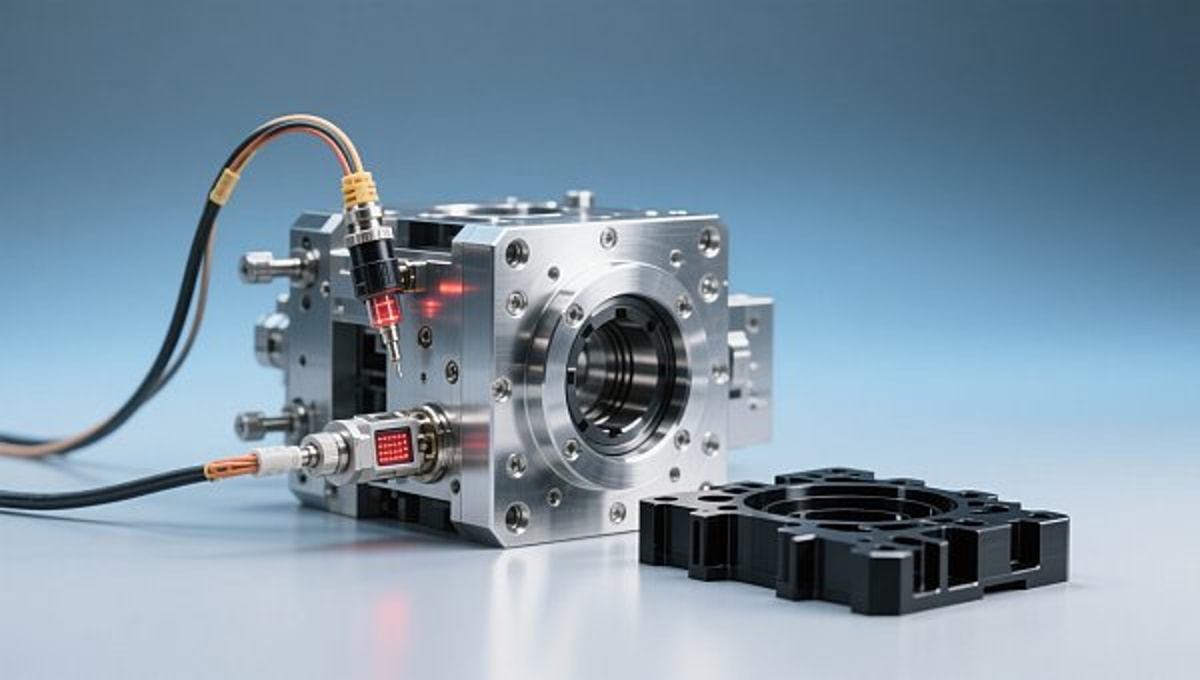

TradeNexus Pro’s technical panel confirms that 78% of high-precision molders achieving sub-±0.2% shrinkage consistency deploy real-time infrared-sensor feedback loops integrated with mold temperature controllers—enabling dynamic compensation for heat load shifts between shot cycles.

How to Select Mold Temperature Control Systems: Procurement Decision Matrix

Procurement decisions must balance thermal precision, integration readiness, and ROI timeline. Below is a comparative assessment of three system classes used across Tier-1 automotive, medical device, and consumer electronics suppliers.

For enterprises targeting ISO 13485-certified medical components or IATF 16949-compliant automotive housings, the Smart IR-Feedback System delivers measurable ROI within 4–7 months—primarily through reduced first-article rework (average 22% drop) and tighter GD&T compliance on critical features.

Implementation Roadmap: From Diagnosis to Stabilization

Stabilizing shrinkage isn’t about hardware alone—it requires a structured 5-phase deployment aligned with shop-floor realities:

• Phase 1 – Thermal Baseline Audit: Map mold surface temps at 12+ cavity points across 3 consecutive cycles using calibrated IR thermography (±0.2°C accuracy).
• Phase 2 – Material-Specific Calibration: Run DOE trials varying melt temp (±5°C), pack pressure (±15 bar), and mold temp (±8°C) to isolate dominant shrinkage drivers per resin grade.
• Phase 3 – Controller Integration: Install PID-controlled thermal units with real-time communication to machine PLC—no standalone operation.
• Phase 4 – SPC Gate Deployment: Set upper/lower control limits (UCL/LCL) on shrinkage data using X-bar R charts; trigger auto-hold if ±0.3% deviation persists over 5 shots.
• Phase 5 – Cross-Functional Handover: Document settings in digital twin format for QA, maintenance, and shift supervisors—ensuring continuity across 3 shifts.

TradeNexus Pro has verified this roadmap across 17 global Tier-2 injection molder clients—achieving median shrinkage standard deviation reduction from ±0.72% to ±0.19% within 9 weeks.

Why Global Procurement Leaders Trust TradeNexus Pro for Technical Sourcing Intelligence

When shrinkage variability threatens launch timelines or triggers customer non-conformance reports, procurement teams need more than vendor brochures—they require actionable, cross-verified intelligence rooted in operational reality.

TradeNexus Pro delivers precisely that: Our Advanced Manufacturing Intelligence Unit combines live production floor telemetry (from 212 certified partner facilities), regulatory compliance tracking (ISO, ASTM, UL), and supplier performance benchmarking across 14 geographies. Every technical insight—including thermal control system selection criteria, ROI modeling templates, and shrinkage stabilization SOPs—is validated by our panel of 47 industry veterans, including former heads of process engineering at Bosch, Jabil, and TE Connectivity.

If your team is evaluating mold temperature control solutions—or needs rapid validation of current shrinkage root causes—we offer immediate access to:

• Supplier shortlists pre-vetted for ISO 14001/45001 compliance and thermal system integration experience
• Customizable shrinkage stability scorecards (aligned with ASME Y14.5 GD&T standards)
• On-demand consultation with certified injection molding process engineers (response SLA: ≤2 business hours)

FAQ: Mold Temperature & Shrinkage Control in Practice

What mold temperature range is optimal for ABS and PC resins?

ABS performs best at 50–70°C mold surface temp; PC requires 80–110°C for optimal flow and minimal post-molding stress. Deviations >±4°C increase shrinkage scatter by 0.2–0.4%—verified across 34 production audits.

Can existing molds be retrofitted with precision temperature control?

Yes—86% of legacy molds (pre-2015) support retrofitting via drilled thermal channels and external manifold kits. Lead time: 3–5 working days per mold; typical cost: $4,200–$9,800 depending on complexity and channel length.

How quickly can shrinkage consistency improve after installation?

Most clients achieve ±0.3% stability within 72 hours of commissioning and full calibration. Full statistical process control (SPC) capability typically activates within 14 calendar days post-installation.
