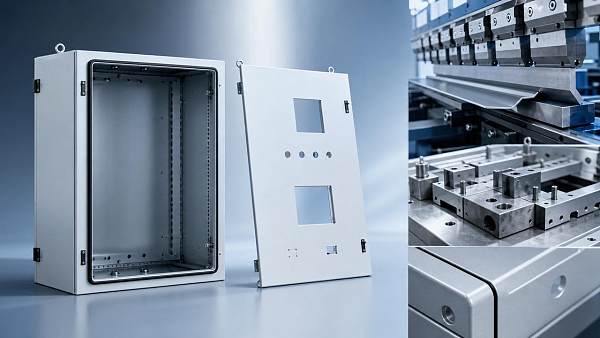

Sheet metal bending can make enclosures fit better

For after-sales maintenance teams, a poorly fitted housing can mean longer service times, repeated adjustments, and higher failure risks. That is why sheet metal bending for electrical enclosures matters far beyond fabrication alone. Precise bending helps enclosures align better, protect internal components, and simplify access during repairs, making equipment more reliable and easier to maintain in demanding industrial environments.

In a cross-industry setting, enclosure fit affects uptime, sealing, cable routing, thermal stability, and part interchangeability. A clear checklist reduces guesswork and connects design intent with workshop execution.

Why a checklist matters for enclosure bending quality

Sheet metal bending for electrical enclosures is rarely just about hitting an angle. It is about controlling stack-up error, flange consistency, hole position shift, and final assembly performance.

A checklist helps standardize decisions across prototyping, batch production, field replacement, and retrofit projects. It also improves communication between CAD, tooling, inspection, coating, and final assembly teams.

Core checklist for sheet metal bending for electrical enclosures

Use the following points before releasing drawings, setting tools, or approving first articles. Each item supports better fit, easier servicing, and more stable enclosure performance.

• Confirm bend allowance early and match it to actual material grade, thickness, grain direction, and tooling radius before locking flat patterns.
• Check inside bend radius against enclosure material limits so corners stay strong and do not crack during forming or later vibration exposure.
• Align bend sequence with access requirements to prevent tool collision, flange interference, and blocked features such as louvers, studs, or knockouts.
• Measure flange lengths after trial bends because small deviations can prevent doors, covers, and mating panels from seating correctly.
• Protect critical hole-to-edge distances near bend lines to avoid distortion that affects fastener alignment, grounding points, and cable gland placement.
• Specify realistic angle tolerances based on sealing needs, latch geometry, and gasket compression instead of using unnecessarily tight defaults.
• Review springback behavior on coated, stainless, or high-strength sheets because compensation values often change between prototype and production lots.
• Verify corner relief and bend relief details so folded intersections close neatly without tearing, bulging, or pushing adjacent panels out of position.
• Plan for powder coating or plating buildup since finish thickness can change fit at seams, hinges, lock tabs, and removable service covers.
• Inspect assembled enclosure squareness, not just individual bends, because serviceability depends on the completed housing rather than isolated dimensions.

What to verify on drawings and shop instructions

Drawings for sheet metal bending for electrical enclosures should state material type, tolerance priorities, datum strategy, bend direction, and finish stage inspection points. Missing notes often cause avoidable rework.

Shop instructions should include sample measurements for first-piece approval. Calling out only nominal dimensions is not enough when enclosure fit depends on cumulative folded geometry.

How the checklist changes by application

Outdoor control boxes

Outdoor enclosures rely heavily on seam integrity and door compression. Here, sheet metal bending for electrical enclosures must support weather sealing, drainage paths, and stable latch engagement.

Pay special attention to flange flatness, hinge alignment, and post-coating fit. Even a slight bend variation can compromise IP performance or create water entry points.

Industrial machine housings

Machine-side enclosures often include cutouts, vents, cable exits, and internal mounting rails. Bend sequence becomes critical because dense features increase distortion risk.

Focus on service access around removable panels. Better bending accuracy reduces scraping, forced assembly, and repeated adjustments during maintenance shutdowns.

Electronics cabinets and rack accessories

These assemblies need repeatable geometry for rails, faceplates, and connector clearances. Tight visual fit also matters because exposed gaps suggest poor overall build quality.

In this scenario, sheet metal bending for electrical enclosures should prioritize symmetry, front-edge consistency, and reliable interchangeability across multiple production batches.

Retrofit and replacement panels

Replacement parts often need to fit existing frames with unknown wear, paint buildup, or undocumented revisions. Reverse-engineered bending data must be validated with trial assemblies.

Allow controlled adjustment where possible. Slots, relief updates, or revised flange dimensions can improve installation without changing the enclosure’s functional intent.

Commonly missed issues that reduce fit and serviceability

Ignoring grain direction

Material grain affects cracking risk and springback. When grain direction is overlooked, bend consistency drops and cosmetic defects become more likely at visible corners.

Overlooking hardware installation order

Studs, PEM inserts, hinges, and latch components can interfere with tooling or flatten local areas. Sequence errors often show up only during final assembly.

Using generic tolerances everywhere

Not every face needs the same precision. Critical sealing edges and mounting interfaces deserve priority, while nonfunctional faces can tolerate more variation.

Skipping assembly-based inspection

A bend angle may pass inspection while the finished housing still twists. Functional fit checks reveal issues that single-dimension reports can miss.

Forgetting finish-related thickness changes

Powder coat, zinc plating, and gasket adhesive layers can all change final clearances. Small buildup becomes important around nested folds and door interfaces.

Practical steps to execute the checklist well

1. Start with one validated bend library for each common enclosure material, thickness, and tooling combination used in production.
2. Run a first-article build that includes coating, hardware insertion, and full enclosure assembly rather than bend-only verification.
3. Record actual springback and flange results, then feed corrections back into CAD and work instructions for the next release.
4. Use go/no-go fixtures or simple assembly gauges on critical seams, door edges, and mounting interfaces to speed repeat inspection.
5. Review field service feedback regularly because maintenance issues often reveal hidden fit problems before scrap reports do.

Where this matters across sectors

The same principles support advanced manufacturing lines, green energy cabinets, smart electronics housings, healthcare technology devices, and supply chain automation equipment.

Across these sectors, sheet metal bending for electrical enclosures improves enclosure integrity, reduces installation friction, and supports cleaner lifecycle maintenance planning.

Conclusion and next action

Better enclosure fit starts with better bending decisions. When sheet metal bending for electrical enclosures is treated as a functional quality process, service access, sealing, durability, and assembly repeatability all improve.

Use this checklist on the next drawing review, prototype build, or supplier audit. Compare bend assumptions with real assembly outcomes, then update standards before volume production begins.
