As smart home hubs grow more sophisticated—and densely packed with wireless, AI, and edge-computing modules—EMI shielding in custom metal fabrication becomes non-negotiable for reliability and regulatory compliance. This deep-dive explores material options (aluminum alloys, copper-nickel plating, conductive stainless steels) and design considerations aligned with OEMmachinedparts, smartmanufacturing workflows, and precisionengineering standards. Whether you're a procurement professional sourcing diecastingparts or a project manager overseeing factoryautomation integration, this analysis supports informed decisions across sheetmetalbending, 5axismilling, and industrialrobotics-compatible enclosures—all backed by TradeNexus Pro’s E-E-A-T–validated insights.

Why EMI Shielding Can’t Be an Afterthought in Smart Hub Enclosures

Smart home hubs now integrate Wi-Fi 6E, Bluetooth LE Audio, Zigbee 3.0, Thread, and sub-GHz RF bands—all operating within millimeter-scale PCB layouts. Without integrated EMI shielding, cross-talk between radios can degrade signal integrity by up to 40% and trigger FCC Part 15 Class B failures during pre-compliance testing.

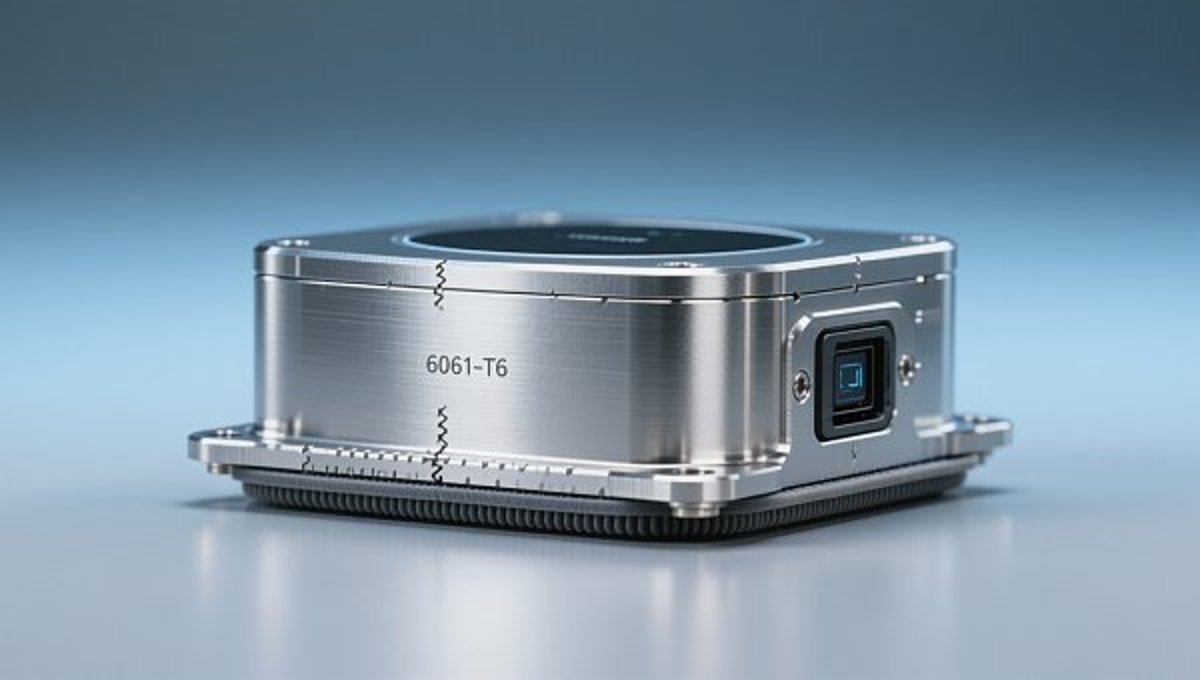

Unlike consumer-grade plastic housings, custom metal enclosures serve dual functions: structural protection and electromagnetic containment. A 0.5mm aluminum alloy enclosure with continuous seam welding achieves >60 dB attenuation at 2.4 GHz—meeting IEC 61000-4-3 immunity requirements for residential IoT deployments.

Failure to address EMI early in the mechanical design phase forces costly rework: 7–15 days of tooling modification, 3+ iterations of RF chamber validation, and potential delays in CE/FCC certification timelines—impacting time-to-market by 4–8 weeks.

Material Comparison: Conductivity, Processability & Compliance Trade-offs

Selecting the right base material and surface treatment requires balancing RF performance, manufacturability, thermal management, and cost. Below is a comparative analysis of three industry-preferred options for precision-fabricated smart hub enclosures:

Aluminum remains the default for high-volume production due to its CNC efficiency and weight advantage (2.7 g/cm³ vs. 8.9 g/cm³ for copper alloys). However, for hubs requiring co-location with ultra-low-noise sensors—e.g., air quality or biometric modules—copper-nickel offers measurable SNR improvement: +12 dB signal-to-noise ratio over aluminum at 900 MHz.

Design for Manufacturability: Critical Tolerances & Joint Strategies

EMI shielding effectiveness collapses rapidly if mechanical discontinuities exceed λ/20 at target frequency. For 5 GHz operation, that’s just 3 mm—demanding tight control over seam gaps, fastener spacing, and gasket compression.

Three proven joint strategies used across Tier-1 smart electronics suppliers:

• Conductive elastomer gaskets (Shore A 60–70) compressed 25–30% at 0.5 mm thickness—achieving ≤0.1 Ω/sq surface resistance across mating flanges.
• Laser-welded seams with ≤0.05 mm root gap and full-penetration fusion—validated via dye penetrant inspection per ASTM E165.
• Threaded fasteners spaced no more than 12 mm apart on perimeter joints, using beryllium copper washers (ASTM B194 Grade C17200).

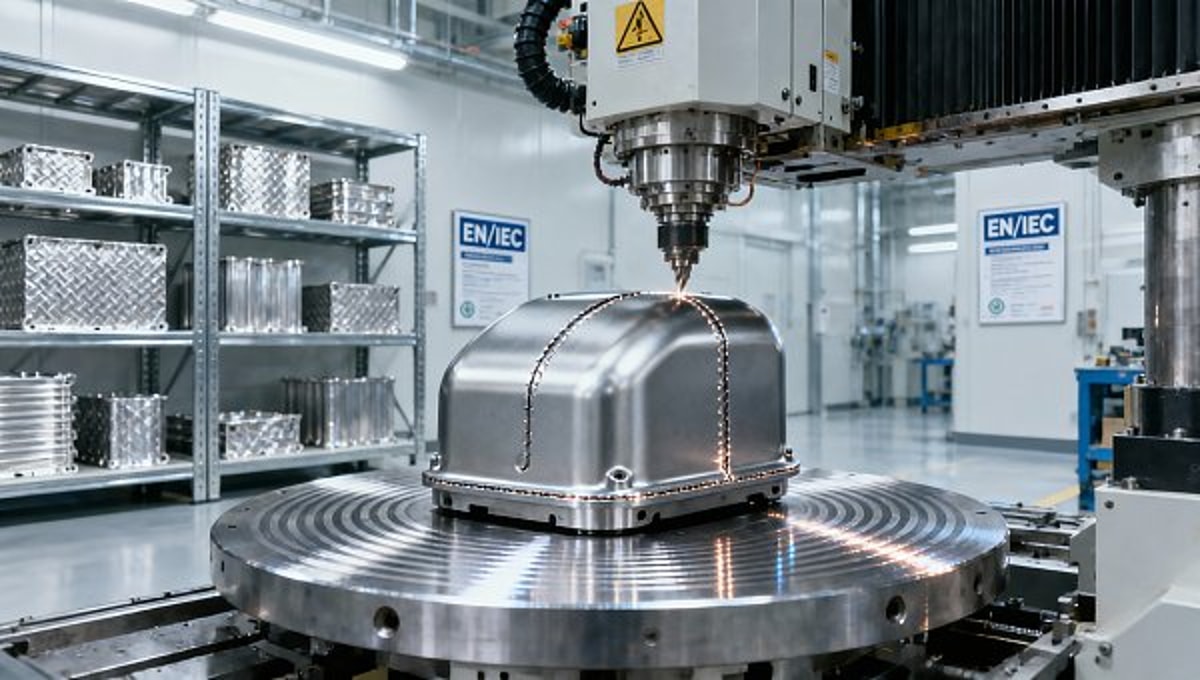

For projects requiring rapid prototyping and NPI support, 5-axis milling of monolithic aluminum housings reduces assembly steps by 60% versus multi-part stamped assemblies—cutting first-article lead time from 21 to 9 working days.

How TradeNexus Pro Accelerates Your Smart Hub Sourcing Cycle

TradeNexus Pro delivers verified, procurement-ready intelligence—not generic overviews. Our global network includes 247 certified metal fabricators specializing in EMI-critical enclosures, with documented capabilities across:

• ISO 9001:2015 + IATF 16949-certified facilities offering PPAP Level 3 documentation for automotive-grade smart home integrations.
• On-site RF test labs (NSA <6 dB, SVSWR <1.2) supporting pre-certification validation against FCC, CE, and MIC standards.
• End-to-end traceability: material lot tracking, plating thickness verification (XRF), and dimensional CMM reports delivered with every PO.

Whether you need RF-shielded die-cast housings for mass production (≥50,000 units/year), low-volume CNC prototypes (<500 units), or hybrid enclosures combining machined aluminum frames with stainless steel RF cages—we match your technical specs, compliance targets, and delivery windows with vetted partners in under 72 business hours.

Get Your Custom Fabrication Requirements Reviewed

Share your mechanical drawings, EMI test plan, and volume forecast. Our technical analysts will deliver a vendor shortlist—including process capability summaries, lead-time benchmarks, and material compliance verification—within 3 business days. No sign-up required.
