What to check before sheet metal bending starts

Before any bend is made, success depends on careful preparation. In sheet metal bending for architectural applications, operators must verify material type, thickness, bend radius, tooling setup, and drawing accuracy to avoid costly errors and rework. A thorough pre-bending check not only improves part quality and dimensional consistency, but also ensures safer, more efficient production from the very first operation.

Why pre-bending checks matter in architectural sheet metal work

In architectural fabrication, bending errors rarely stay isolated. A small mistake in flange length, grain direction, or tool selection can affect installation alignment, façade appearance, structural fit, and downstream assembly time.

That is why sheet metal bending for architectural applications demands a stronger checking routine than many general-purpose jobs. Operators often work with visible surfaces, tight tolerances, mixed alloys, and project-specific drawings.

Before the press brake cycles, the operator should confirm whether the part is decorative, structural, weather-exposed, or intended for concealed installation. Each use case changes the acceptable risk level and the inspection focus.

• Visible cladding parts require strict surface protection, bend consistency, and minimal tooling marks.
• Support brackets and frames need closer attention to bend angle accuracy, springback control, and fit with mating components.
• Outdoor assemblies must consider corrosion-resistant materials, coating behavior, and drainage-related geometry.

For operators and production teams, this preparation is also a cost-control step. Rework in architectural metalwork can trigger delays in site delivery, replacement freight, and coordination issues with installers or procurement teams.

What should operators check before sheet metal bending starts?

A practical review should cover the full path from drawing to machine setup. In sheet metal bending for architectural applications, missing only one variable can create scrap, cosmetic rejection, or incorrect field fit.

1. Confirm material specification

Check alloy, temper, finish condition, and protective film status. Aluminum, stainless steel, galvanized steel, and pre-coated sheet do not respond to bending in the same way, especially when appearance matters.

2. Verify thickness and tolerance

Do not rely only on the nominal gauge listed on a drawing. Measure actual thickness from the received batch. Minor thickness variation can change bend deduction, tonnage requirement, and final angle.

3. Review bend radius and inside geometry

If the specified inside radius is smaller than what the material can support, cracking, edge stress, and shape distortion become more likely. This is especially critical with coated or work-hardened material.

4. Check drawing revision and datum reference

Operators should verify the latest revision, bend direction, critical dimensions, hole-to-bend relationships, and installation reference points. Architectural parts often fail not because the bend was wrong, but because the wrong revision was used.

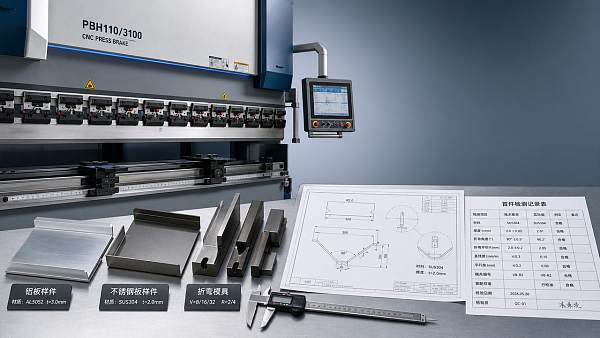

5. Validate tooling and machine setup

Confirm punch profile, die opening, tooling wear, backgauge calibration, and machine tonnage capacity. Matching tool geometry to part design is fundamental in sheet metal bending for architectural applications.

6. Protect visible surfaces

If the part will remain exposed after installation, apply film, clean tooling contact surfaces, and define which side may tolerate minor marks. Cosmetic control should be decided before bending, not after inspection.

Pre-bending checklist for sheet metal bending for architectural applications

The table below helps operators standardize preparation before running the first part. It is useful for production teams handling sheet metal bending for architectural applications across façade trims, panels, enclosures, and support elements.

This checklist is most effective when it becomes a formal release gate. The goal is not paperwork. The goal is to prevent repeatable defects before material, time, and installation schedules are affected.

How material type changes the bending decision

Material choice influences nearly every bending variable. Operators should not treat aluminum coping, stainless trims, and galvanized support parts as if they belong to one process family.

In sheet metal bending for architectural applications, visual finish, corrosion performance, and shape retention are often as important as strength. That changes the acceptance criteria compared with hidden industrial brackets.

The comparison below shows why the same drawing strategy may need different machine settings or radius decisions depending on the substrate.

For mixed-project fabrication, operators benefit from documented material behavior notes linked to each supplier batch. This reduces setup guesswork and improves first-pass yield when jobs change frequently.

Which drawing details are most often missed?

Drawing review is often rushed, especially when delivery pressure is high. Yet several drawing issues repeatedly cause problems in sheet metal bending for architectural applications.

• Bend dimensions measured to different datums than the operator expects, leading to flange length errors.
• Hole and slot locations placed too close to bend lines, causing distortion or assembly mismatch.
• No clear indication of cosmetic face orientation, which increases the chance of visible tool marks on the exposed side.
• Conflicting notes between general tolerances and project-specific installation requirements.
• Flat pattern values copied from another material or thickness without adjusting bend allowance.

When operators catch these issues early, they prevent fabrication waste and help purchasing or project teams avoid field complaints. This is where cross-functional visibility becomes valuable, especially on global projects with distributed suppliers.

TradeNexus Pro supports this broader decision environment by helping procurement and manufacturing teams compare technical assumptions, supply risks, and specification changes across international sourcing channels and sector-specific workflows.

Setup, first article approval, and process control

Good preparation must translate into disciplined execution. A pre-bending review is only effective if it leads to a controlled first article and a stable production sequence.

1. Run one trial part using confirmed tooling and measured material from the actual batch.
2. Check angle, flange length, overall profile, and fit with any mating parts or templates.
3. Inspect for scratches, pressure marks, coating stress, and edge cracking under proper lighting.
4. Record final machine parameters so repeat orders or multi-shift teams use the same baseline.
5. Approve full production only after the first article matches drawing intent and installation function.

For architectural parts, a dimensional pass is not enough. The approved sample should also reflect how the component will be seen, handled, packaged, and installed.

Procurement and operator concerns: what should be aligned early?

Operators focus on process stability. Procurement teams focus on cost, lead time, and supplier reliability. In practice, sheet metal bending for architectural applications works best when both sides align before production release.

Key alignment points

• Material substitution rules should be clearly defined. A cheaper alloy or different temper may change bend performance and appearance.
• Delivery dates should allow time for first article checks, especially for visible custom trims and project-specific profiles.
• Packing requirements must match finish sensitivity. Poor packaging can erase the value of precise bending.
• Inspection criteria should identify whether cosmetic standards or dimensional standards take priority in borderline cases.

This is also why intelligence platforms matter. TradeNexus Pro helps decision-makers track supplier capability signals, sector-specific demand shifts, and operational considerations that affect sourcing quality beyond unit price alone.

Common mistakes and FAQ

How do I choose the right bend radius?

Start with the material type, thickness, temper, and finish. Then compare the required inside radius with supplier guidance, shop experience, and tooling capability. For sheet metal bending for architectural applications, cosmetic durability can justify a larger radius even when a tighter bend is technically possible.

Why does the finished angle vary between batches?

The most common causes are thickness variation, material property differences, tool wear, and uncorrected springback. Batch verification and first-off measurement are essential, especially when sourcing from multiple mills or service centers.

Are protective films enough to prevent surface defects?

Not always. Films help, but clean tooling, correct handling, die condition, and stacking method are equally important. Visible architectural parts can still show edge drag marks, pressure lines, or contamination if process discipline is weak.

What is the most overlooked check before bending starts?

Using the latest drawing revision. Many avoidable errors come from running an outdated flat pattern or missing a late design update that changed bend orientation, hole spacing, or site fit requirements.
