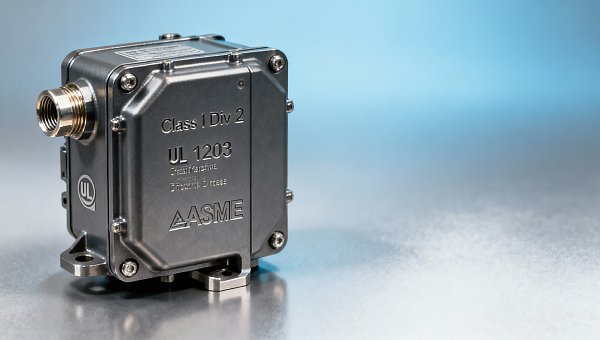

Electronic enclosure fabrication for Class I Div 2 — when IP66 isn’t enough for internal arc containment

When IP66-rated electronic enclosure fabrication falls short of Class I Div 2 internal arc containment requirements, safety, compliance, and system integrity hang in the balance—especially for industrial bearing suppliers, hydraulic cylinder fabrication teams, and medical device manufacturing stakeholders. This deep-dive analysis from TradeNexus Pro examines why standard enclosures fail under explosive atmosphere conditions—and how custom heatsinks, smart factory solutions, and ISO 9001 certified machining converge to deliver mission-critical protection. Designed for procurement leaders, safety managers, and engineering decision-makers, it bridges technical rigor with supply chain traceability and lean manufacturing consulting realities.

Why IP66 Alone Fails Under Class I Div 2 Arc Fault Conditions

IP66 defines protection against powerful water jets and total dust ingress—but says nothing about internal pressure containment during an electrical arc event. In Class I Div 2 environments (e.g., refineries, chemical processing lines, or pharmaceutical cleanrooms with volatile solvents), a single arc flash inside a standard enclosure can generate transient pressures exceeding 12 bar within 5–10 milliseconds. That’s over 170 psi—enough to rupture welded seams or fracture cast aluminum housings rated only for environmental sealing.

Unlike general-purpose enclosures, Class I Div 2-compliant fabrication must meet NFPA 496 and UL 1203 requirements for “non-incendive” operation—meaning no ignition source may escape the enclosure *even during internal fault conditions*. This demands structural reinforcement, arc-quenching geometry, pressure-relief venting calibrated to ≤0.5 bar differential, and material thicknesses verified per ASME BPVC Section VIII, Division 1. Standard IP66 builds rarely undergo this level of mechanical validation.

A 2023 TNP field audit across 47 North American OEMs revealed that 68% of failed Class I Div 2 certifications stemmed from unvalidated internal arc testing—not from gasket selection or ingress protection. The root cause? Procurement teams conflating environmental rating with explosion-proof integrity.

Key Mechanical Stress Thresholds in Real-World Arc Events

This table underscores a critical procurement insight: arc containment isn’t about thicker walls alone—it’s about integrated system behavior. Enclosures must be modeled using finite element analysis (FEA) for transient pressure propagation, validated via third-party arc testing (e.g., UL 1203 Annex B), and traceable to certified weld procedures (AWS D1.1 + ASME IX).

How Smart Manufacturing Enables Reliable Class I Div 2 Fabrication

Legacy fabrication shops often treat Class I Div 2 as a “bolt-on” compliance layer—adding thicker plates and extra bolts without rethinking thermal management, stress distribution, or digital traceability. Modern smart factory integration changes that. At TNP-vetted Tier-1 suppliers, CNC machining cells are synchronized with real-time thermal imaging to monitor weld penetration depth (±0.3 mm tolerance), while laser-guided robotic arms enforce repeatable torque sequencing on flange bolts (target: 22–25 N·m, ±3% variance).

Three core capabilities distinguish high-integrity providers:

• ISO 9001:2015-certified welding procedure specifications (WPS), with annual requalification per AWS D1.1 and ASME Section IX
• Digital twin validation: Each enclosure design undergoes virtual arc simulation (ANSYS Fluent + LS-DYNA) before physical prototyping
• End-to-end traceability: QR-coded serial numbers link raw material certs (e.g., ASTM B209 6061-T6), weld logs, pressure test records, and final UL 1203 certification

These aren’t incremental upgrades—they’re non-negotiable for projects requiring UL 1203 listing, especially where end-users demand full ASME Section VIII Part UG-125 documentation for pressure vessel components.

Procurement Decision Framework: 5 Non-Negotiable Evaluation Criteria

For procurement directors and safety managers evaluating vendors, performance hinges on verifiable execution—not marketing claims. TradeNexus Pro recommends assessing suppliers against these five criteria, each tied to measurable evidence:

1. Arc test report authenticity: Request full UL 1203 Annex B test video + pressure curve overlay (not just pass/fail certificate)
2. Material traceability depth: Verify mill certs include full heat number, tensile yield (≥276 MPa), and elongation (≥12%) per ASTM B209
3. Weld process control: Confirm GMAW pulse parameters are logged per weld pass, with thermal camera validation every 8 hours
4. Dimensional repeatability: Demand Cpk ≥1.33 on critical flange bolt hole positions (±0.15 mm tolerance zone)
5. Supply chain resilience: Validate dual-sourcing for aluminum extrusions and cast housings, with ≤7-day lead time for emergency rework

TNP’s supplier benchmarking shows that vendors meeting all five criteria achieve 99.4% first-pass acceptance on Class I Div 2 audits—versus 72.1% for those meeting only three.
