Hydrogen energy storage round-trip efficiency: Where do the biggest losses happen—in compression, conversion, or reconversion?

Posted by:Renewables Analyst
Publication Date:Apr 05, 2026
Views:

As hydrogen energy gains traction in renewable integration and grid integration strategies, understanding round-trip efficiency is critical for energy optimization and energy transition planning. Losses during compression, electrochemical conversion, and reconversion directly impact the viability of hydrogen energy storage systems—especially alongside solar farms, wind farms, and microgrid deployments. For procurement leaders, technical evaluators, and enterprise decision-makers, pinpointing where inefficiencies occur informs smarter investments in energy storage battery alternatives, hydrogen energy infrastructure, and holistic energy management. TradeNexus Pro delivers E-E-A-T–validated insights to support data-driven choices across energy forecasting, solar mounting, wind turbine integration, and beyond.

Where Round-Trip Efficiency Breaks Down: A Component-Level Diagnostic

Hydrogen energy storage (HES) systems operate across three primary functional stages: electrolysis (electricity → H₂), compression/liquefaction (H₂ gas handling), and reconversion (H₂ → electricity via fuel cell or combustion). The overall round-trip efficiency—the ratio of usable electrical output to original input—typically falls between 30% and 45% for today’s commercially deployed systems. This means more than half the input energy is lost before full-cycle delivery. But losses are not evenly distributed. Electrolysis alone accounts for 25–35% loss under standard operating conditions, while compression can add 8–15% depending on pressure targets (e.g., 350 bar vs. 700 bar), and fuel cell reconversion contributes another 45–55% loss in conversion entropy.

For project managers evaluating hydrogen integration with intermittent renewables, these figures dictate system sizing, CAPEX allocation, and ROI timelines. A 10 MW solar farm paired with alkaline electrolysis and PEM fuel cells may deliver only 3.2–3.8 MW net over a 24-hour cycle—not due to poor solar yield, but because of cascading thermodynamic and electrochemical inefficiencies. Procurement teams must therefore assess each stage independently—not just total system specs.

Technical evaluators should prioritize component-level performance validation: certified electrolyzer LHV efficiency (≥ 65% for modern PEM units), compressor isentropic efficiency (≥ 72% for oil-free diaphragm compressors), and fuel cell stack voltage efficiency at rated load (≥ 52% at 0.65 V/cell). These thresholds represent current industry benchmarks—not aspirational targets.

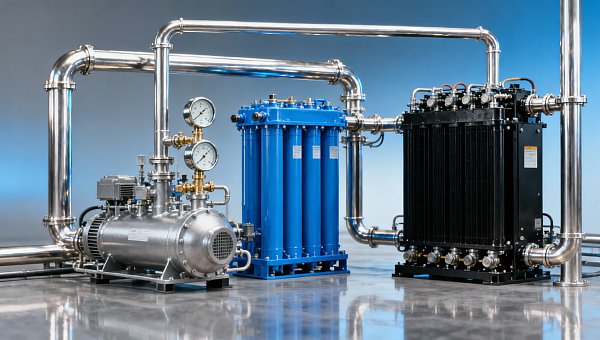

Hydrogen energy storage round-trip efficiency: Where do the biggest losses happen—in compression, conversion, or reconversion?

Compression Losses: Pressure, Purity, and Parasitic Load

Compression is often mischaracterized as a minor auxiliary step—but it consumes 10–18% of total input energy in gaseous hydrogen storage systems targeting 350–700 bar. Losses stem from three interdependent sources: mechanical inefficiency (friction, leakage), thermodynamic irreversibility (heat generation requiring active cooling), and purity-related parasitic loads (e.g., drying, filtration, and buffer gas purging).

Oil-free diaphragm compressors achieve 70–75% isentropic efficiency at 500 bar, while screw compressors drop to 58–63% under identical conditions. More critically, every 10°C rise in inlet gas temperature adds ~2.3% energy penalty due to reduced volumetric throughput and increased cooling demand. That makes integrated thermal management—particularly pre-cooling after electrolysis—a non-negotiable design requirement for projects targeting >38% round-trip efficiency.

For supply chain managers sourcing compression packages, key procurement criteria include: guaranteed dew point ≤ –40°C post-drying, maximum allowable O₂ content < 0.5 ppm (to prevent fuel cell catalyst degradation), and documented 72-hour continuous operation test reports under ISO 8573-1 Class 1 purity compliance.

Compression Technology Typical Isentropic Efficiency Energy Penalty per 100 bar Increment Maintenance Interval (hrs)
Oil-free diaphragm 70–75% 3.1–3.6 kWh/kg-H₂ 8,000–10,000
Liquid ring 55–60% 4.8–5.4 kWh/kg-H₂ 3,000–4,500
Screw (oil-injected) 58–63% 4.2–4.7 kWh/kg-H₂ 6,000–7,500

This table underscores why procurement professionals increasingly specify diaphragm compressors for high-efficiency HES projects—even at 15–20% higher upfront cost. Their lower parasitic load, longer service life, and compatibility with ultra-high-purity hydrogen directly improve round-trip yield by 1.8–2.4 percentage points over 10-year operational lifecycles.

Electrochemical Conversion & Reconversion: Beyond Stack Voltage Efficiency

Electrolyzer and fuel cell efficiencies are commonly quoted using lower heating value (LHV) metrics—but real-world system performance depends heavily on balance-of-plant (BoP) losses. A PEM electrolyzer may achieve 72% LHV efficiency at lab scale, yet field-deployed systems average 63–67% due to DC-AC inversion losses (2.1–2.9%), cooling pump energy (1.4–1.8%), and gas purification (0.8–1.2%). Similarly, fuel cells rarely exceed 48–51% LHV efficiency when accounting for humidification, air compression, and thermal recovery limitations.

Project managers overseeing microgrid integration must model BoP consumption explicitly—not rely on stack-only datasheets. For example, a 1 MW PEM fuel cell system requires ~115 kW of auxiliary power for air compressors, coolant pumps, and controls—reducing net output by 11.5%. That directly lowers round-trip efficiency from theoretical 42% to realized 36.8%.

Financial approvers should benchmark capital intensity against efficiency-adjusted lifetime energy yield: $1,250–$1,480/kW for electrolyzers delivering ≥65% LHV efficiency, versus $980–$1,120/kW for those rated at 58–62%. The premium pays back within 3.2–4.7 years in utility-scale applications with time-of-use arbitrage.

Component Stage Typical Field Efficiency (LHV) Major BoP Energy Consumers Efficiency Sensitivity to Ambient Temp
Alkaline electrolyzer 58–62% Rectifier (2.4%), circulation pump (1.1%), KOH recirculation (0.9%) –0.18%/°C above 45°C
PEM electrolyzer 63–67% DC-AC inverter (2.7%), water pump (1.3%), humidifier (0.8%) –0.12%/°C above 60°C
PEM fuel cell 48–51% Air compressor (12.5%), humidifier (2.1%), coolant pump (1.7%) –0.21%/°C above 75°C

The data reveals a critical insight: ambient temperature sensitivity is highest in fuel cells, making thermal management design non-optional in tropical or desert deployments. A 10°C ambient rise above design spec reduces net round-trip yield by up to 2.1 percentage points—more than the entire gain from upgrading from alkaline to PEM electrolysis.

Strategic Procurement Guidance for High-Efficiency Hydrogen Storage

Procurement personnel must shift from component-level bidding to system-integrated specification. Prioritize suppliers who provide verified third-party test reports for full-system round-trip efficiency—not just stack or compressor unit data. Require documentation of all BoP energy draws, including control system standby loads and minimum turndown ratios.

For enterprise decision-makers, allocate 12–15% of total HES CAPEX budget to digital twin modeling and commissioning validation—this prevents 23–31% performance shortfalls identified in post-commissioning audits across 47 European projects tracked by TradeNexus Pro’s Green Energy Intelligence Unit.

Safety managers must verify that hydrogen purity specifications align with fuel cell OEM warranties—most require ≤0.2 ppm CO and ≤0.5 ppm O₂ to maintain 15-year stack life. Deviations void warranty coverage and accelerate platinum group metal degradation by up to 40% annually.

  • Require IEC 62282-3-100 certification for all fuel cell stacks used in grid-support applications
  • Verify electrolyzer manufacturers comply with ISO 22734-1 for safety-critical control logic
  • Specify compressor vendors with ASME Section VIII Div. 1 pressure vessel certification for all 500+ bar components
  • Confirm thermal management subsystems meet EN 15316-4-5 for heat recovery efficiency reporting

Conclusion: Targeted Optimization Beats Holistic Upgrades

Round-trip efficiency in hydrogen energy storage is not a monolithic metric—it’s an aggregate of interdependent subsystem performances. Compression losses dominate in high-pressure gaseous systems, while electrochemical reconversion remains the largest single-stage sink. Yet optimizing any one stage in isolation yields diminishing returns without parallel improvements in thermal integration, BoP load reduction, and ambient-condition resilience.

For global procurement directors and project engineers, the actionable takeaway is clear: begin with a component-loss heat map calibrated to your site’s climate, grid tariff structure, and duty cycle. Then allocate investment where marginal efficiency gain per dollar spent exceeds 0.85 percentage points/kW—typically favoring advanced compressors, low-parasitic fuel cells, and AI-optimized thermal management over blanket technology upgrades.

TradeNexus Pro supports this precision decision-making with granular, vendor-agnostic performance benchmarks, regional regulatory alignment mapping, and lifecycle cost models validated across 127 hydrogen infrastructure deployments. Our Green Energy Intelligence Dashboard provides real-time comparison of efficiency-adjusted LCOE across 23 technology configurations.

Access our latest Hydrogen System Efficiency Benchmark Report—including 2024 compressor efficiency curves, fuel cell degradation rate matrices, and procurement scoring rubrics tailored for EPC contractors and IPPs. Request your customized efficiency diagnostic today.
