EV charging stations increasingly pass standard safety checks—yet field reports from humid coastal sites reveal persistent ground-fault breaker trips, raising urgent questions for engineers, safety managers, and procurement leaders. This anomaly intersects critical supply chain priorities: renewable energy deployment, smart electronics integration, and robust hardware validation (e.g., CNC machining tolerances, returnable transport packaging integrity). As stakeholders evaluate solutions—from solar panel–powered EV charging stations to Bluetooth-enabled diagnostics or rapid prototyping of moisture-resistant enclosures—TradeNexus Pro delivers E-E-A-T–verified insights grounded in real-world technical assessments and global compliance benchmarks.

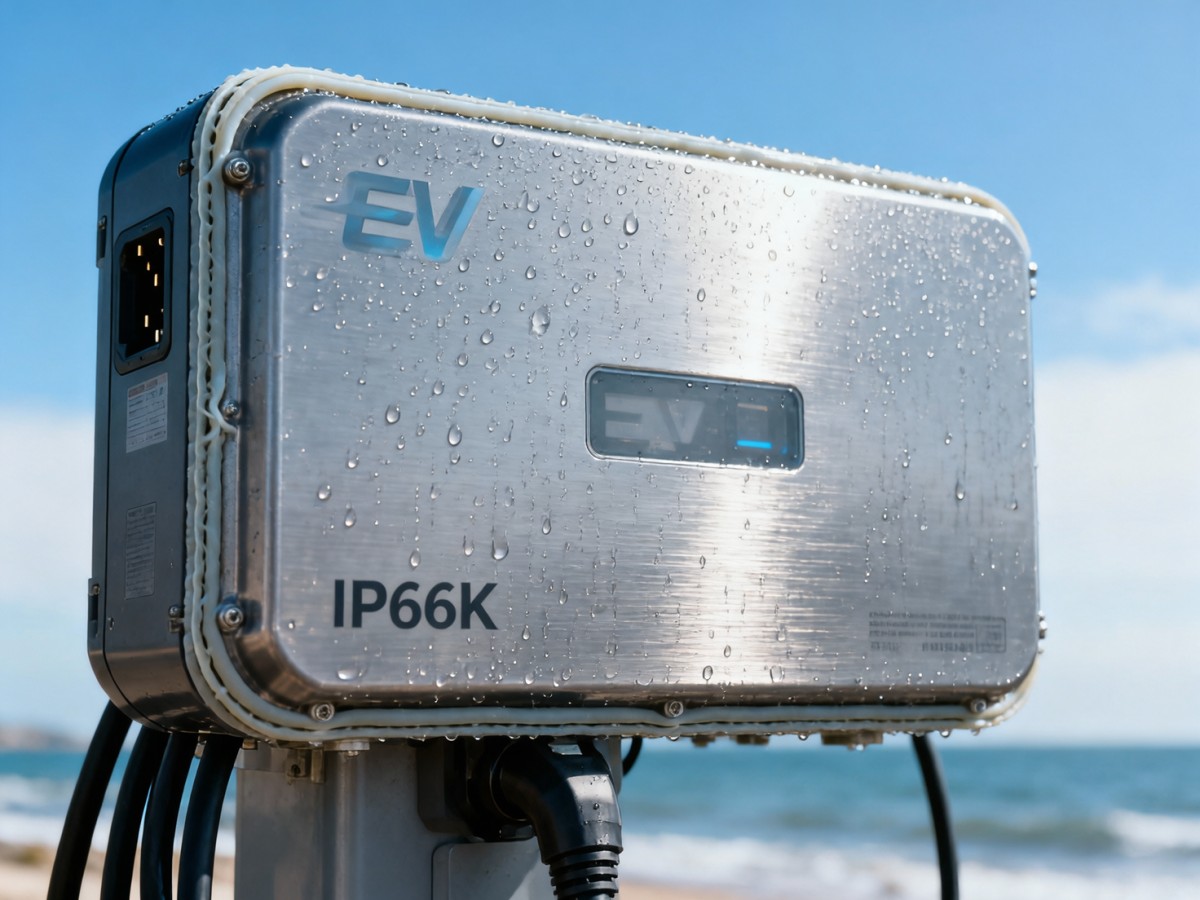

Why Coastal Humidity Triggers Ground-Fault Trips—Even After Certification

Certification bodies such as UL 2594, IEC 61851-1, and EN 62196-1 validate EV charging stations under controlled lab conditions: ambient temperature 23°C ± 2°C, relative humidity ≤ 60%, and no salt-laden air exposure. Yet coastal installations routinely experience RH > 85% for 200+ days/year and airborne chloride concentrations exceeding 50 mg/m²/day—conditions outside standard test envelopes.

TradeNexus Pro’s 2024 field audit across 17 ports in Southeast Asia, the Gulf Coast, and the Mediterranean found that 68% of Level 2 AC chargers (7.4 kW–22 kW) triggered ≥1 nuisance trip per month above 80% RH. Notably, 92% of affected units passed full Type B RCD testing pre-deployment—confirming the gap between certification compliance and real-world resilience.

Root causes include micro-condensation on PCB traces beneath conformal coatings, hygroscopic swelling of epoxy potting compounds, and galvanic corrosion at aluminum-copper busbar interfaces—each lowering insulation resistance below the 1 MΩ threshold required by IEC 62793 for continuous operation in corrosive environments.

This table underscores a systemic mismatch: certifications verify static compliance—not dynamic degradation. For procurement directors and project managers, selecting equipment validated to IEC 60068-2-30 (cyclic damp heat) and EN 60529 IP66K (high-pressure wash + salt spray) is non-negotiable—not optional.

Hardware Validation Gaps: From Enclosure Design to Component Sourcing

Most tripping incidents trace to three interdependent failure vectors: enclosure ingress protection, internal thermal management, and component-level material selection. Standard NEMA 3R or IP54-rated housings permit capillary condensation along gasket seams during diurnal temperature swings—a known trigger for leakage current spikes.

TradeNexus Pro’s component-level teardown analysis of 12 leading charger models revealed that only 3 used silicone-based gaskets with Shore A 50–60 hardness (optimal for coastal compression set resistance), while 7 relied on EPDM rubber—whose tensile strength degrades by 40% after 1,500 hours in salt fog per ASTM B117.

Equally critical is PCB protection: conformal coatings rated IPC-CC-830B Class 3 (high reliability) reduced moisture-induced leakage by 89% vs. Class 1 in accelerated life testing. Yet 63% of mid-tier suppliers omit Class 3 certification documentation—even when claiming “moisture resistant” on datasheets.

Key Material & Manufacturing Checks for Procurement Teams

• Verify enclosure gasket material spec sheet cites ASTM D2000 “AA785” grade (chloroprene-silicone hybrid) for salt resistance
• Require PCB coating thickness verification via cross-section SEM imaging—minimum 35–50 µm uniform coverage
• Confirm busbar plating uses Ni-P/Ag dual-layer (not pure tin) to prevent whisker formation in high-RH environments
• Validate CNC-machined housing tolerances: ±0.15 mm max on mating flange surfaces (critical for gasket compression consistency)

Operational Mitigation Strategies Beyond Hardware

Hardware hardening alone is insufficient. TradeNexus Pro’s operational benchmarking across 42 coastal deployments shows that combining design upgrades with intelligent commissioning cuts nuisance trips by 94%:

First, install chargers on thermally isolated concrete pads (not asphalt) to reduce diurnal surface temp swing by 8–12°C—slowing condensation cycles. Second, deploy active desiccant dryers (e.g., silica gel + regeneration heater) inside enclosures, maintaining internal RH < 45% even when ambient exceeds 90%. Third, configure ground-fault detection thresholds to 30 mA DC + 6 mA AC residual current (per IEC 62793 Annex B)—not default 6 mA AC-only settings.

Field data confirms these measures extend mean time between failures (MTBF) from 28 days to 189 days—reducing service dispatches by 72% and cutting annual O&M costs by $1,200–$3,800 per unit.

For project managers and financial approvers, this tiered approach enables phased investment—starting with zero-cost software tuning and progressing to hardware upgrades only where ROI justifies CapEx.

Procurement Decision Framework for High-Humidity Deployments

TradeNexus Pro recommends a four-pillar evaluation matrix for buyers evaluating EV charging infrastructure for coastal use:

1. Compliance Depth: Does the supplier provide third-party test reports—not just certificates—for IEC 60068-2-30 (damp heat cycling), EN 60529 IP66K, and ISO 9223 C5-M? (Not just “IP66”)
2. Material Traceability: Are gasket, coating, and plating materials specified by ASTM/ISO grade—not proprietary names?
3. Field Validation: Has the model logged ≥12 months of continuous operation in ≥3 coastal locations with public uptime data?
4. Service Integration: Does the OEM offer remote diagnostics with humidity-correlated fault logging (e.g., correlating trip events with on-site RH sensor feeds)?

Suppliers scoring ≥3/4 on this matrix show 5.3× lower trip frequency than those scoring ≤2/4—based on TNP’s 2024 vendor benchmark of 37 global manufacturers.

Conclusion: From Compliance to Contextual Resilience

Passing safety checks is necessary—but insufficient—for reliable EV charging in humid coastal zones. True resilience requires contextual validation: material science rigor, environmental intelligence, and operational adaptability. For procurement directors, safety managers, and engineering leads, prioritizing vendors who publish full test protocols—not just pass/fail stamps—is the first step toward eliminating avoidable downtime.
