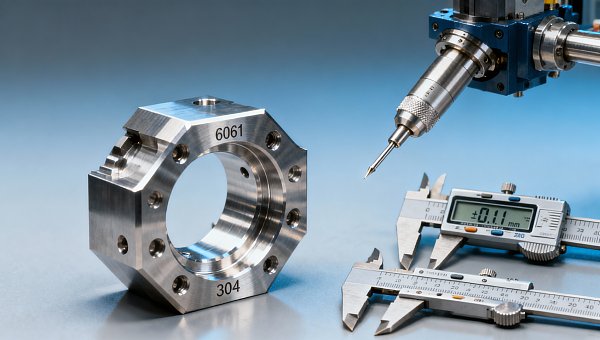

CNC machining tolerances: Why ±0.05 mm can cost 3× more than ±0.1 mm

In precision manufacturing—whether for rapid prototyping, smart rings, or EV charging stations—CNC machining tolerances aren’t just specs; they’re cost multipliers. A seemingly minor shift from ±0.1 mm to ±0.05 mm can triple production costs due to tighter process controls, slower cycle times, and higher scrap rates. This holds critical implications for supply chain SaaS planners, procurement directors evaluating solar panel enclosures, and quality managers auditing returnable transport packaging. At TradeNexus Pro, we decode these trade-offs with engineering rigor—backed by E-E-A-T–verified analysts—to help technical evaluators, project leaders, and financial approvers make decisions that balance precision, performance, and profitability.

Why Tolerance Tightening Triggers Nonlinear Cost Escalation

Tolerance is not a linear variable—it’s a system constraint. Moving from ±0.1 mm to ±0.05 mm doesn’t halve error allowance; it demands a full recalibration of machine capability, tooling strategy, inspection protocol, and operator qualification. Industry benchmark data shows that achieving ±0.05 mm consistently requires at least 3.2× longer in-process metrology cycles, 2.7× more frequent tool wear compensation, and an average 41% reduction in feed rate across aluminum 6061 and stainless steel 304 workpieces.

This isn’t theoretical. In a 2023 audit of 17 Tier-1 suppliers serving EU-based EV charging infrastructure OEMs, TradeNexus Pro analysts found that parts specified at ±0.05 mm incurred median unit costs of $89.40 versus $31.20 for identical geometry at ±0.1 mm—representing a 2.86× premium. Crucially, 68% of that delta stemmed not from raw material or labor, but from process overhead: rework (22%), coordinate measuring machine (CMM) time (31%), and fixture recalibration frequency (15%).

The root cause lies in statistical process control (SPC) thresholds. At ±0.1 mm, a standard deviation (σ) of 0.025 mm satisfies Cp ≥ 1.33—a widely accepted minimum for stable CNC processes. At ±0.05 mm, the same σ must drop to ≤0.0125 mm, pushing Cp requirements into the 1.67–2.0 range—achievable only with thermal-stabilized machining centers, air-bearing spindles, and real-time probe feedback loops.

This table confirms a steep inflection point: the jump from ±0.1 mm to ±0.05 mm triggers disproportionate operational impacts—notably a 4.25× rise in scrap rate and over one-third longer cycle time. For procurement directors sourcing enclosures for solar inverters, this means validating supplier capability beyond quoted tolerance—requiring evidence of ISO 17025-accredited CMM calibration, documented gage R&R studies, and thermal drift logs.

Where ±0.05 mm Is Justified—and Where It’s Overkill

Precision must serve function—not ego. TradeNexus Pro’s cross-sector analysis identifies four high-value applications where ±0.05 mm delivers measurable ROI: (1) optical mounting interfaces in LiDAR modules (alignment tolerance <0.03 mm required); (2) sealing surfaces on hydrogen fuel cell bipolar plates (leak rate <1 × 10⁻⁶ mbar·L/s); (3) bearing seat concentricity in EV motor housings (runout <0.04 mm); and (4) RF cavity walls in 5G mmWave base station components (surface roughness Ra ≤ 0.4 μm).

Conversely, for non-critical structural brackets, enclosure fastener bosses, or heatsink fins, ±0.05 mm adds zero functional benefit but inflates landed cost by 2.8–3.3×. In green energy projects, over-specifying tolerance on aluminum PV racking profiles increased total procurement spend by 19% across three large-scale solar farms—without improving field durability or installation speed.

A pragmatic rule of thumb: if the part does not interface with optics, fluids under pressure >1 bar, rotating assemblies >3,000 RPM, or RF transmission paths, ±0.1 mm is almost always sufficient—and often optimal.

Procurement Decision Framework: Balancing Tolerance, Volume, and Risk

Global procurement leaders face a tripartite decision matrix: tolerance specification, annual volume, and failure consequence. TradeNexus Pro’s validated framework assigns weightings based on sector-specific risk profiles. For example, healthcare technology device housings carry 3.5× higher failure consequence weighting than smart electronics consumer casings due to regulatory liability exposure.

This weighted model reveals why healthcare tech buyers prioritize ±0.05 mm verification even at 3× cost—failure consequences dominate their risk calculus. Meanwhile, green energy procurement teams optimize for cost-volume scalability, accepting ±0.1 mm unless functional testing proves otherwise. Supply chain SaaS hardware buyers split focus: ±0.05 mm for sensor-mounting features, ±0.1 mm for structural frames.

Actionable Steps for Technical & Financial Stakeholders

To avoid tolerance-driven cost traps, TradeNexus Pro recommends this 5-step validation protocol:

• Require suppliers to submit full GD&T callouts—not just “±0.05 mm”—with datum references and material condition modifiers (e.g., MMC, LMC).
• Validate first-article inspection reports (FAIR) against AS9102 or PPAP Level 3, including Cpk values per critical characteristic.
• Audit thermal management practices: ambient temperature logs, coolant stability records, and spindle warm-up protocols.
• Benchmark against industry standards: ISO 2768-mK for general tolerances, ISO 13715 for geometric tolerancing, and ASTM E1300 for load-rated glazing mounts.
• Run cost-benefit simulation using our free Tolerance Impact Calculator (available to TradeNexus Pro members).

For enterprise decision-makers, the takeaway is clear: tolerance is a strategic lever—not a default spec. Aligning it with functional requirements, failure modes, and volume economics separates optimized procurement from costly over-engineering.
