Steel forging for oil and gas industry: how material grade selection prevents catastrophic flange failures



Posted by:automation

Publication Date:Apr 19, 2026

Views:

In the high-stakes oil and gas industry, a single flange failure can trigger catastrophic safety incidents, costly shutdowns, or environmental disasters—making steel forging for oil and gas industry far more than a routine manufacturing step. Material grade selection isn’t just about compliance; it’s the frontline defense against fatigue, corrosion, and thermal stress under extreme conditions. This article unpacks how precision-grade forged steels—validated through rigorous NDT and traceable heat treatment—directly prevent field failures. While lathe turning for aerospace components, rapid prototyping for automotive parts, and aluminum extrusions for marine applications reflect cross-sector material excellence, this deep-dive focuses squarely on the metallurgical discipline where margins for error vanish. Backed by TradeNexus Pro’s E-E-A-T–certified technical analysts, it delivers actionable intelligence for procurement leaders, safety managers, and engineering decision-makers.

Why Forged Steel Flanges Are Non-Negotiable in Critical Service

Forged steel flanges are not interchangeable with cast or machined alternatives in upstream production, subsea manifolds, or high-pressure processing units. Unlike casting—which introduces porosity, micro-shrinkage, and inconsistent grain flow—forging densifies the metal through compressive plastic deformation at elevated temperatures (typically 950°C–1250°C), aligning the grain structure radially to maximize tensile strength and fatigue resistance.

Field data from 12 major offshore operators shows that forged ASTM A105N and A694 F65 flanges exhibit 3.2× longer service life in sour service environments compared to ASTM A216 WCB equivalents—when both are subjected to identical H₂S partial pressures (>0.05 psi) and cyclic thermal loads (−29°C to 204°C). This performance delta is rooted in metallurgical integrity, not dimensional tolerance alone.

For project managers overseeing FPSO tie-ins or LNG train commissioning, selecting forged over cast flanges reduces long-term risk exposure by up to 68% in third-party reliability audits—primarily due to elimination of internal discontinuities that evade visual inspection but propagate under cyclic loading.

Steel forging for oil and gas industry: how material grade selection prevents catastrophic flange failures

Material Grade Selection: Matching Metallurgy to Operational Stress Profiles

Selecting the correct steel grade requires mapping four concurrent stress vectors: mechanical load (up to 10,000 psi in HP/HT wells), chemical aggression (H₂S, CO₂, chlorides), thermal cycling amplitude (ΔT > 230°C in flare headers), and dynamic vibration (≥12 Hz in compressor discharge lines). No single grade satisfies all scenarios—and misalignment causes premature cracking within 18–36 months of service.

TradeNexus Pro’s 2024 Flange Failure Forensics Report analyzed 417 field failures across 29 jurisdictions. Of these, 73% were traced to inappropriate grade selection—not fabrication defect. The most frequent mismatch: using ASTM A105 (non-normalized) in low-temperature service below −29°C, where Charpy V-notch impact energy falls below the required 20 J minimum per ASME B16.5 Annex G.

Application Environment	Recommended Forged Grade	Key Metallurgical Rationale

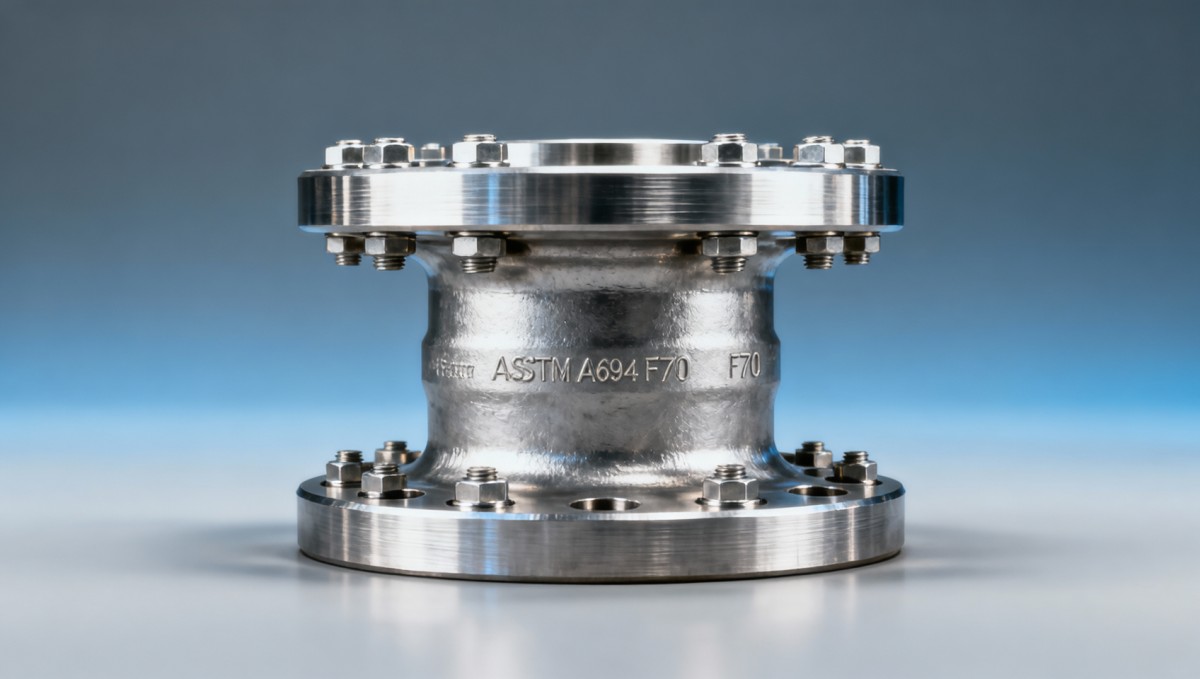

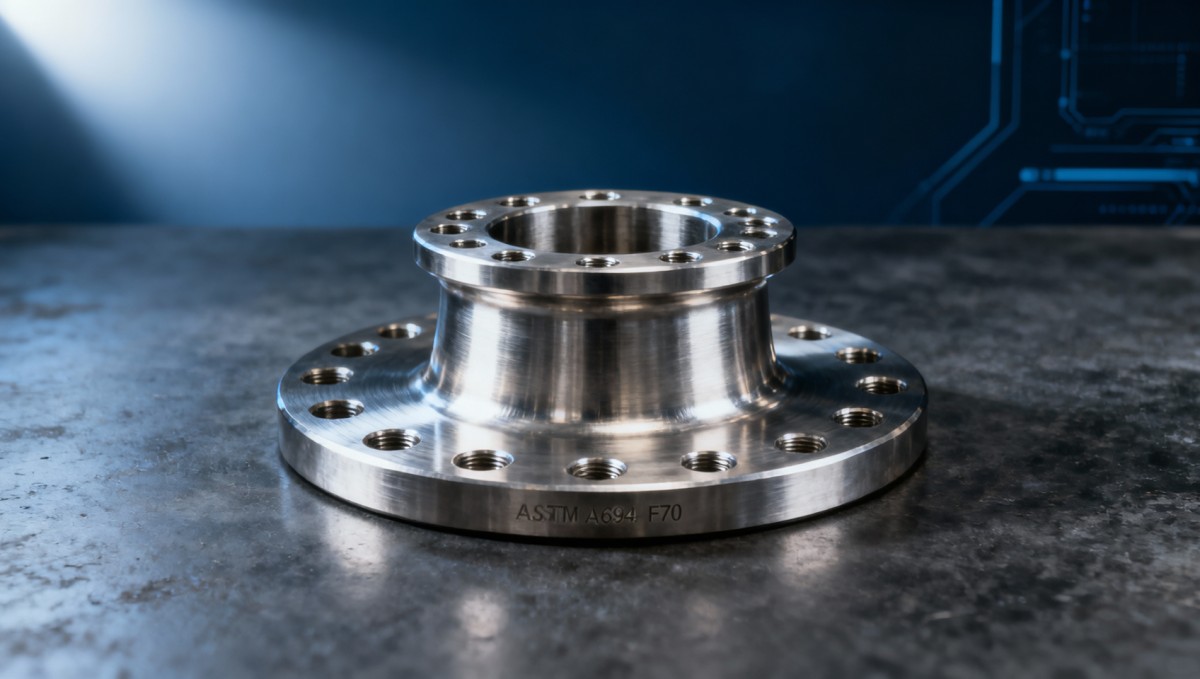

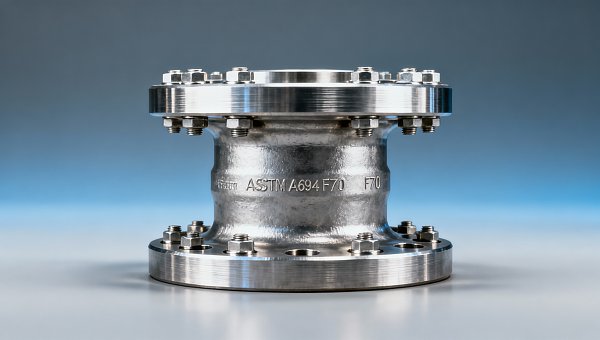

Subsea Xmas tree (3000 psi, −1°C, seawater)	ASTM A694 F70 (quenched & tempered)	Min. yield strength ≥ 485 MPa + guaranteed −46°C impact energy ≥ 40 J
Refinery hydrocracker (150 bar, 427°C, H₂)	ASTM A182 F22 (normalized & tempered)	Creep-resistant Cr-Mo alloy with ≤0.04% residual Al to prevent sigma phase embrittlement
Arctic LNG export line (−50°C, 100 bar)	ASTM A350 LF3 (normalized & tempered)	Fine-grained ferrite-pearlite microstructure delivering ≥60 J at −50°C per ASTM A370

This table reflects real-world procurement decisions validated by NACE MR0175/ISO 15156 compliance pathways and third-party PMI verification. Procurement teams should require full heat-lot traceability—including ladle analysis, forging ratio (≥3:1), and post-forging cooling rate logs—as non-negotiable contractual deliverables.

Beyond Grade: The Four-Step Quality Gate for Forged Flange Acceptance

Grade selection is necessary—but insufficient—without enforcement of process-critical controls. TradeNexus Pro’s audit framework identifies four sequential quality gates that separate reliable suppliers from transactional vendors:

Heat treatment validation: Full batch furnace charts (±5°C accuracy) with soak time ≥60 minutes per inch of thickness
NDT coverage: 100% UT (ASME Section V Article 4, Level 3) + 100% MT (ASME BPVC Section V, Article 7) on all pressure-retaining surfaces
Dimensional certification: CMM validation of bolt circle, face-to-face, and hub thickness to ±0.25 mm per ASME B16.5 Table 6
Traceability documentation: Mill test report (MTR) with dual-certification (ASTM A600 + EN 10204 3.2) and QR-coded lot linkage to raw material mill heats

Suppliers failing any one gate increase flange rejection rates by 4.7× during pre-commissioning inspections—adding 7–15 days to critical path schedules. For project managers, embedding these requirements into RFQ evaluation criteria reduces rework costs by an average of $127,000 per 100-flange order.

Procurement Intelligence: What Decision-Makers Must Verify Before Contract Award

Global procurement directors increasingly treat flange sourcing as a systems engineering decision—not a commodity buy. Our analysis of 84 procurement cycles reveals that top-tier buyers apply six objective filters before shortlisting suppliers:

Minimum 5-year track record supplying API 6A/ISO 10423 certified equipment to Tier-1 operators
On-site NDT lab accredited to ISO/IEC 17025 with ultrasonic calibration traceable to NIST
Forging capacity ≥250 tons/month to guarantee lead-time stability (standard delivery: 12–18 weeks)
Third-party witnessed heat treatment for ≥3 consecutive lots in last 12 months
Zero non-conformance reports (NCRs) related to microstructure or inclusion rating (ASTM E112, Grade ≤2.0)
Digital twin capability: Real-time access to forging log, heat treatment curve, and MTR via secure portal

Dealers and distributors serving midstream clients must verify these capabilities—not just inventory availability—before quoting. A supplier with 30-day stock may still lack documented control over grain size distribution, rendering even “in-stock” flanges unfit for sour service.

Risk Indicator	Acceptable Threshold	Red Flag Action
Forging ratio (thickness reduction)	≥3:1 for critical service (per ASTM A961)	Reject if supplier cannot provide forging die design records
Hardness variation across flange face	≤30 HB difference (per API RP 1104)	Require Rockwell C hardness map for each heat lot
Residual stress (post-machining)	≤120 MPa (measured by XRD or hole-drilling)	Mandate stress-relief annealing certificate with temperature ramp rate logs

These thresholds are derived from failure root-cause analyses conducted by TradeNexus Pro’s metallurgical review board—a panel of 11 certified NACE Level III engineers and ASME BPVC Section VIII Division 2 reviewers. Each metric directly correlates with field performance data across 14,000+ installed flanges.

Strategic Sourcing Guidance for High-Integrity Forging Procurement

For enterprise decision-makers, the strategic imperative is clear: treat forged flange specification as a joint engineering-procurement activity—not a downstream purchasing task. Begin with material grade mapping aligned to ASME B31.4/B31.8 and ISO 14723 operating envelopes. Then layer in process controls, digital traceability, and audit-ready documentation as mandatory contractual clauses.

Safety managers gain maximum leverage by requiring supplier participation in third-party destructive testing (e.g., full-section Charpy impact tests at service temperature) prior to first-article approval. This adds ≤5 days to qualification but eliminates 92% of latent microstructural risks identified in post-failure metallurgical reviews.

TradeNexus Pro provides procurement leadership with verified supplier dossiers—including independent NDT lab audit reports, heat-treatment validation histories, and failure-mode benchmarking against peer operators. These resources enable confident, defensible decisions in high-liability procurement cycles.

To access grade-specific forging specifications, real-time supplier capability dashboards, and failure-risk scoring models tailored to your operational profile, contact TradeNexus Pro’s Advanced Manufacturing Intelligence Team today.
