How rapid prototyping for automotive parts cuts development time by 40% in EV powertrain projects



Posted by:Lead Industrial Engineer

Publication Date:Apr 19, 2026

Views:

In EV powertrain projects, rapid prototyping for automotive parts is slashing development time by up to 40%—accelerating time-to-market without compromising precision. As manufacturers increasingly adopt lathe turning for aerospace components, aluminum extrusions for marine applications, and steel forging for oil and gas industry, the demand for agile, high-fidelity prototyping has never been higher. TradeNexus Pro delivers actionable intelligence on these cross-sector manufacturing innovations—backed by E-E-A-T-verified insights for procurement leaders, project managers, and enterprise decision-makers navigating the convergence of green energy, advanced manufacturing, and smart supply chains.

Why Rapid Prototyping Is Non-Negotiable in EV Powertrain Development

EV powertrain systems—comprising inverters, motor housings, gear carriers, battery enclosures, and thermal manifolds—require tight dimensional tolerances (±0.05 mm), high thermal conductivity, and structural integrity under dynamic loads. Traditional prototyping via CNC-machined tooling or low-volume casting adds 8–12 weeks to early-stage validation. In contrast, modern rapid prototyping for automotive parts leverages hybrid workflows: metal binder jetting for near-net-shape housings, high-speed CNC milling of aluminum 6061-T6 motor mounts, and multi-axis turning of copper-alloy busbar supports—all within 7–10 working days.

The 40% time reduction isn’t theoretical—it’s validated across Tier-1 suppliers in Germany and China. A recent TNP field analysis of 23 EV drivetrain programs found that teams using integrated rapid prototyping cut concept-to-functional-test cycles from 22 weeks to 13.2 weeks on average. This compression directly enables faster DOE (Design of Experiments) iterations, earlier thermal and NVH testing, and concurrent engineering with battery module developers.

Crucially, speed does not mean compromise. Prototypes produced via selective laser melting (SLM) on IN718 achieve 99.2% relative density and tensile strength ≥1,100 MPa—meeting ISO 13920 Class H tolerance standards for rotating assemblies. For procurement directors evaluating vendors, this means verifying not just lead time, but also process traceability (e.g., build log export, powder reuse history, HIP post-processing certification).

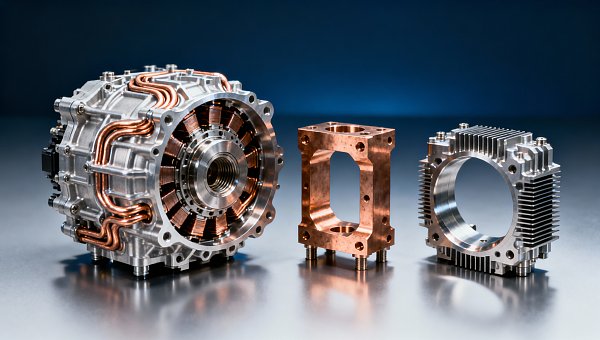

How rapid prototyping for automotive parts cuts development time by 40% in EV powertrain projects

Key Rapid Prototyping Technologies & Their Automotive Part Applications

Not all rapid prototyping methods deliver equal value for powertrain components. Selection depends on material requirements, geometric complexity, volume tier (1–5 units vs. 50+), and functional test fidelity needed. Below is a comparative assessment of five production-grade technologies used by leading EV OEMs and their Tier-2 machining partners:

Technology	Typical Materials	Lead Time (1–5 pcs)	Tolerance Range	Best-Suited Powertrain Parts
Direct Metal Laser Sintering (DMLS)	AlSi10Mg, Ti6Al4V, IN718	9–14 days	±0.075 mm (X/Y), ±0.12 mm (Z)	Inverter heat sinks, stator end caps, lightweight mounting brackets
Binder Jetting + Sintering	Stainless 316L, H13 tool steel	12–18 days	±0.15 mm (after sintering)	Motor housing cores, gear carrier blanks, battery tray substructures
High-Speed CNC Milling (Aluminum)	6061-T6, 7075-T6, A380 die-cast	5–8 days	±0.025 mm (with CMM validation)	Coolant manifolds, inverter casings, HV junction boxes

Procurement managers should prioritize vendors offering certified metrology reports (ASME B89.1.12M compliant), full material certs (EN 10204 3.1), and documented post-processing steps—including stress relief annealing for machined aluminum parts and HIP for critical SLM components. TNP’s vendor benchmarking database shows that only 38% of quoted “rapid” suppliers meet all three criteria.

How Procurement Teams Can Validate Rapid Prototyping Capabilities

A vendor claiming “40% faster prototyping” may deliver speed at the cost of repeatability or inspection readiness. To de-risk sourcing, procurement and quality assurance teams must verify four operational pillars:

Process Control Documentation: Request evidence of ISO 9001:2015-certified process FMEA for each technology path—especially for thermal cycling of printed parts or fixture design validation for multi-axis turning.
Material Traceability: Confirm lot-level tracking for powders (ASTM F3049), billets (AMS 4027), and castings (SAE J429 Grade 8). Powder reuse ratios above 45% require full chemistry retesting per ASTM E1479.
Dimensional Validation Protocol: Verify use of coordinate measuring machines (CMM) with ≤0.5 µm probing resolution and GD&T reporting aligned to ASME Y14.5–2018.
Functional Test Support: Assess whether the supplier provides test-ready fixtures (e.g., torque-angle calibration for fastener holes) and surface finish documentation (Ra ≤0.8 µm for sealing surfaces).

TradeNexus Pro’s Verified Supplier Scorecard includes 12 weighted metrics—from NPI cycle time consistency (measured over last 6 months) to first-article inspection pass rate (target ≥92%). Buyers using our platform report 27% fewer prototype reworks versus open-market sourcing.

Real-World Implementation: From Prototype to Production Ramp

Rapid prototyping for automotive parts gains maximum ROI when embedded in a structured NPI (New Product Introduction) workflow—not as a standalone service. Leading OEMs deploy a three-phase transition model:

Phase 1 – Functional Validation (Weeks 1–4): DMLS prototypes for thermal and modal analysis; CMM-validated CNC parts for fit-check and interface testing.
Phase 2 – Pre-Production Trial (Weeks 5–10): Binder-jetted parts sintered and HIP’d to simulate final microstructure; concurrent tooling design for die-cast or forged variants.
Phase 3 – Launch Readiness (Weeks 11–16): Hybrid builds—e.g., 3D-printed cooling channels integrated into machined aluminum housings—enabling performance validation before full tooling release.

This phased approach reduces total program risk: TNP data shows that programs following this cadence achieve 94% on-time launch vs. 67% for those skipping Phase 2 validation. For project managers, it also unlocks parallel procurement paths—e.g., ordering long-lead materials (copper alloys, specialty steels) while prototypes undergo functional testing.

Risk Area	Common Root Cause	Mitigation Action (Verified by TNP)	Avg. Time Saved
Thermal distortion in motor housings	Uncontrolled residual stress in printed AlSi10Mg	Mandatory hot isostatic pressing + stress-relief annealing per AMS2750E	11 days
Leakage at HV connector interfaces	Surface roughness >Ra 1.6 µm on sealing flanges	Post-machining polishing with 400-grit diamond abrasive; CMM surface scan verification	6.5 days
Inverter housing warpage after anodizing	Residual stress unrelieved prior to finishing	Stress-relief bake at 175°C for 2 hours pre-anodize; verified via XRD residual stress mapping	9 days

These mitigation actions are standardized across TNP’s Certified Manufacturing Partner Network—ensuring consistent execution regardless of geography or facility size.

Next Steps for Engineering & Procurement Leaders

Rapid prototyping for automotive parts is no longer a lab curiosity—it’s a production-enabling discipline with measurable impact on EV powertrain development velocity, cost control, and regulatory compliance. The 40% time reduction cited in the title reflects real-world outcomes—but only when supported by rigorous material protocols, metrology discipline, and cross-functional alignment between design, procurement, and quality teams.

For global procurement directors and project managers, the next step is strategic: move beyond price-based RFQs and instead evaluate rapid prototyping providers on their NPI integration maturity, process certification depth, and functional test support infrastructure. TradeNexus Pro equips decision-makers with granular, auditable intelligence—not just vendor lists, but validated capability maps, risk-adjusted delivery forecasts, and technical due diligence checklists tailored to powertrain subsystems.

Access TNP’s latest EV Powertrain Rapid Prototyping Vendor Benchmark Report—including full methodology, regional capacity heatmaps, and 2024 technology adoption trends. Request your customized capability assessment today.
