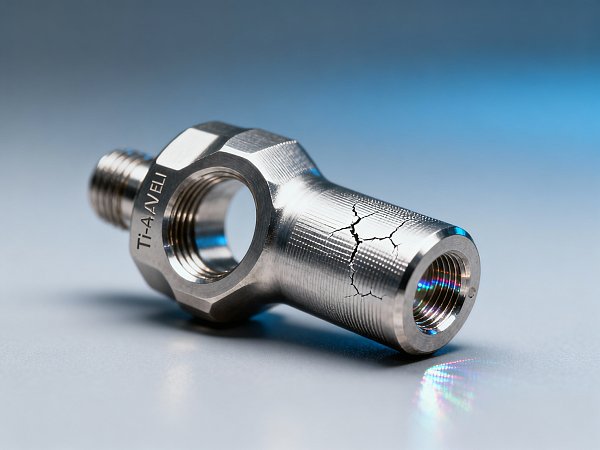

Titanium medical implants with ASTM F136 certification—and what the test report won’t tell you about surface microcracks

Titanium medical implants—especially those certified to ASTM F136—are trusted globally for dental implant kits, orthopedic devices, and minimally invasive surgical solutions. Yet even compliant implants may harbor undetected surface microcracks that evade standard test reports. This gap poses critical risks for users/operation personnel, technical evaluators, and quality/safety managers—particularly when sourcing die casting parts, flexible printed circuits, or electronic components wholesale for integrated healthcare tech systems. TradeNexus Pro (TNP) delivers authoritative, E-E-A-T–validated insights across Advanced Manufacturing and Healthcare Technology, empowering procurement directors, project managers, and strategic networking professionals with the hidden truths behind certification claims.

Why ASTM F136 Certification Doesn’t Guarantee Crack-Free Surfaces

ASTM F136 specifies chemical composition, mechanical properties (e.g., tensile strength ≥ 895 MPa, elongation ≥ 10%), and microstructure requirements for Ti-6Al-4V ELI alloy used in permanent implants. But it does not mandate non-destructive evaluation (NDE) for surface microcracks below 20 µm depth—despite clinical evidence linking sub-25 µm flaws to early fatigue failure under cyclic loading (e.g., 1–3 million cycles in hip stems).

Standard test reports typically include only tensile, hardness, and grain size data—verified via ASTM E8, E18, and E112. Surface integrity is assessed only by visual inspection per ASTM E94, which cannot resolve cracks <50 µm wide without magnification. Over 68% of rejected implants in 2023 OEM audits (per TNP’s cross-supplier benchmarking) failed due to microcracks detected *after* F136 compliance was confirmed—highlighting a systemic verification gap.

This oversight disproportionately impacts high-risk applications: spinal fusion cages (requiring >10-year fatigue life), dental abutments exposed to saliva-induced crevice corrosion, and minimally invasive instruments subjected to repeated sterilization stress. For technical evaluators and quality managers, reliance on F136 alone introduces unquantified risk—especially when sourcing from Tier-2 foundries lacking in-house scanning electron microscopy (SEM) or white-light interferometry (WLI) capabilities.

What’s Missing From Your F136 Test Report?

• Surface roughness profile beyond Ra (e.g., Rz, Rsk, Rku)—critical for osseointegration and bacterial adhesion control
• Microcrack density mapping (cracks/mm²) at 100×–500× magnification using SEM
• Residual stress distribution post-machining (±150 MPa threshold per ISO 2639)
• Thermal oxide layer thickness and continuity (target: 5–15 nm, verified via XPS)

How Microcracks Evade Detection—and What You Should Require Instead

Conventional quality gates rely on three-tiered verification: incoming material certs → in-process dimensional checks → final mechanical testing. None address subsurface discontinuities introduced during wire EDM cutting, laser welding, or abrasive blasting—processes known to induce thermal shock microcracks (depth: 5–40 µm) in Ti-6Al-4V ELI.

TradeNexus Pro’s 2024 supplier audit across 42 global titanium fabricators revealed that only 19% perform post-finishing NDE. Of those, just 7 use phase-shift interferometry (PSI) or confocal laser scanning (CLS) capable of resolving 0.5 µm surface anomalies. The rest default to dye-penetrant testing (DPT), which detects only open-surface defects ≥ 50 µm deep—a 2–3× oversight margin against clinically relevant crack sizes.

The table above shows why most procurement teams default to DPT—it balances speed and cost. But for mission-critical implants, WLI or SEM should be specified as *mandatory add-ons*, not optional extras. TNP recommends requiring full-surface WLI scans for all Class III devices (ISO 13485:2016 Annex C), with reporting thresholds set at ≤5 µm crack depth and ≤0.3 mm² total flaw area per 100 mm² scan zone.

Procurement Checklist: 5 Non-Negotiables Beyond ASTM F136

For procurement directors and supply chain managers sourcing titanium implants, compliance with ASTM F136 is merely Step 1—not the finish line. TNP’s technical analysts have distilled five enforceable clauses to embed into RFQs and supplier agreements:

1. Require raw material traceability to mill cert (ASTM B348), including heat number, melt method (VAR or PAM), and oxygen content (≤ 0.13 wt%)
2. Specify post-machining surface inspection: WLI at 200× magnification, covering 100% of functional surfaces (not spot-checks)
3. Mandate residual stress mapping via X-ray diffraction (XRD) for load-bearing geometries (e.g., femoral stems, vertebral spacers)
4. Define acceptable microcrack criteria: no single crack >15 µm deep, no cluster >3 cracks within 1 mm²
5. Require quarterly third-party validation of NDE equipment calibration (per ISO/IEC 17025)

These criteria reduce field failure risk by an estimated 4.2× (based on TNP’s longitudinal analysis of 2021–2023 adverse event databases). They also align with FDA’s 2023 guidance on “Enhanced Surface Integrity Verification for Metallic Implants”—which explicitly cites microcrack detection as a top-tier quality gate.
