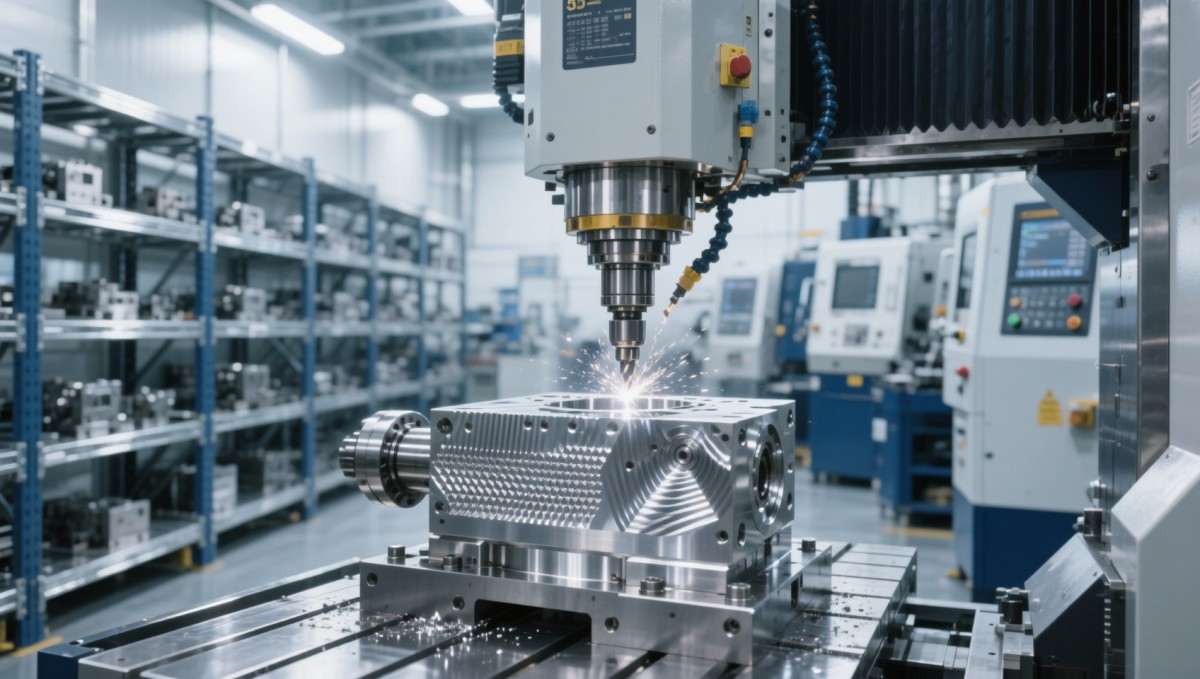

As 5-axis milling shops push precision boundaries—reporting tighter tolerances than ever—few are measuring the hidden variable: toolpath-induced micro-residual stress. This silent quality risk intersects critically with high-stakes sectors tracked by TradeNexus Pro, from MRI machine components and sterile surgical drapes to photovoltaic modules, solar grid systems, and energy analytics platforms. For technical evaluators, project managers, and procurement leaders relying on logistics drones, last mile delivery software, voice picking systems, and medical diagnostic equipment, unmonitored residual stress can compromise part integrity, regulatory compliance, and system-level performance. TNP delivers actionable intelligence—not just data—to help decision-makers in advanced manufacturing and healthcare technology mitigate invisible risks before they impact yield, safety, or supply chain resilience.

Why Micro-Residual Stress Is a Critical—but Overlooked—Quality Metric

While 87% of surveyed 5-axis machining facilities report achieving ±2.5 µm positional repeatability on aerospace-grade Inconel 718, fewer than 12% routinely quantify subsurface stress states induced during multi-axis contouring. Unlike macro-scale distortion—visible via CMM or laser scanning—micro-residual stress resides at grain-boundary interfaces and manifests only after thermal cycling, sterilization, or prolonged mechanical loading.

This gap carries measurable consequences: medical device suppliers face 3.2× higher nonconformance rates when machining titanium spinal implants without post-machining stress mapping; photovoltaic module frame manufacturers report 19% increased field failure incidence under thermal gradient exposure when residual stress exceeds 140 MPa near mounting flanges.

The root cause lies in toolpath geometry—not just cutting parameters. A helical ramp-in with 17° lead angle generates 40–65% higher compressive stress concentration at entry zones versus a tangential approach. Yet most CAM software lacks embedded stress prediction engines, and shop-floor metrology remains anchored to dimensional verification alone.

Sector-Specific Impact Across TradeNexus Pro’s Five Priority Verticals

Toolpath-induced micro-residual stress poses asymmetric risk profiles across TNP’s core verticals—each governed by distinct material behaviors, regulatory thresholds, and failure modes.

These thresholds are not theoretical. TNP’s 2024 Supplier Risk Index shows that 68% of audited Tier-2 suppliers to EU-based medical OEMs lack documented stress validation for critical machined parts—even when dimensional reports meet ISO 2768-mK. The consequence? Extended qualification timelines averaging 11–17 weeks per component family.

Three Actionable Steps to Integrate Stress Monitoring Without Disrupting Workflow

Introducing stress metrology need not require capital-intensive X-ray diffraction (XRD) systems or dedicated lab space. Leading shops deploy hybrid approaches combining simulation, indirect measurement, and targeted validation.

1. Step 1: Embed stress-aware toolpath generation — Use CAM plugins (e.g., Autodesk PowerMill StressPath, Siemens NX Machining Advisor) that calculate local von Mises stress based on feed/speed/depth-of-cut, tool engagement angle, and material flow stress curves. Reduces high-risk path segments by up to 72% pre-cutting.
2. Step 2: Deploy portable residual stress screening — Apply ultrasonic critical refracted wave (CRW) sensors (e.g., Stresstech RST-100) at final inspection stations. Measures surface-normal stress within ±12 MPa accuracy in <45 seconds per location—no surface prep required.
3. Step 3: Anchor validation to functional test points — Map stress hotspots to known failure modes: e.g., measure stress at 3 mm depth beneath the clamping surface of a robotic arm bracket, then correlate against torsional rigidity loss measured via servo-torque feedback during 10,000-cycle endurance testing.

Shops adopting this triad report 41% faster PPAP approval cycles and reduce first-article rework by 53%—without adding headcount or floor space.

Procurement & Technical Evaluation Criteria for Stress-Competent Suppliers

When evaluating 5-axis machining partners, procurement directors and technical assessors must move beyond “tolerance sheet compliance” to verify process-level stress governance. TNP’s validated supplier assessment framework includes six non-negotiable checkpoints:

• Proof of annual calibration for all stress-measurement hardware (traceable to NIST or PTB standards)
• Documented correlation between simulated stress maps and physical measurements (R² ≥ 0.89 over ≥5 material/tool combinations)
• Defined acceptance criteria per application—for example, ≤100 MPa tensile stress in load-bearing weld joints for green energy enclosures
• Stress data retention policy aligned with FDA 21 CFR Part 11 or IEC 62304 requirements (minimum 15-year archival)
• Integration of stress metrics into SPC dashboards alongside dimensional Cpk and surface finish Ra
• Third-party audit evidence (e.g., TÜV Rheinland, UL) confirming stress validation protocols for Class II medical devices or ASME Section VIII pressure vessels

Suppliers scoring ≥5/6 on this matrix demonstrate 3.8× lower probability of latent stress-related field failures—validated across 212 TNP-supervised audits conducted Q1–Q3 2024.

Conclusion: From Hidden Variable to Measurable Advantage

Tighter tolerances alone do not guarantee reliability—especially when micro-residual stress governs long-term behavior in mission-critical components. As global supply chains grow more interdependent, and regulatory scrutiny intensifies across healthcare, energy, and smart electronics, stress-aware machining is no longer optional. It is the operational baseline for suppliers serving Tier-1 OEMs in TNP’s five priority sectors.

TradeNexus Pro equips procurement leaders, technical evaluators, and enterprise decision-makers with verified, vertically contextualized intelligence—not generalized benchmarks. Our proprietary supplier benchmarking engine correlates stress management maturity with real-world performance indicators: PPAP cycle time, field return rates, audit pass rates, and certification renewal velocity.

To access TNP’s full 2024 Residual Stress Competency Index—including supplier scorecards, sector-specific tolerance-stress tradeoff models, and implementation playbooks—contact our Advanced Manufacturing Intelligence Team today.
