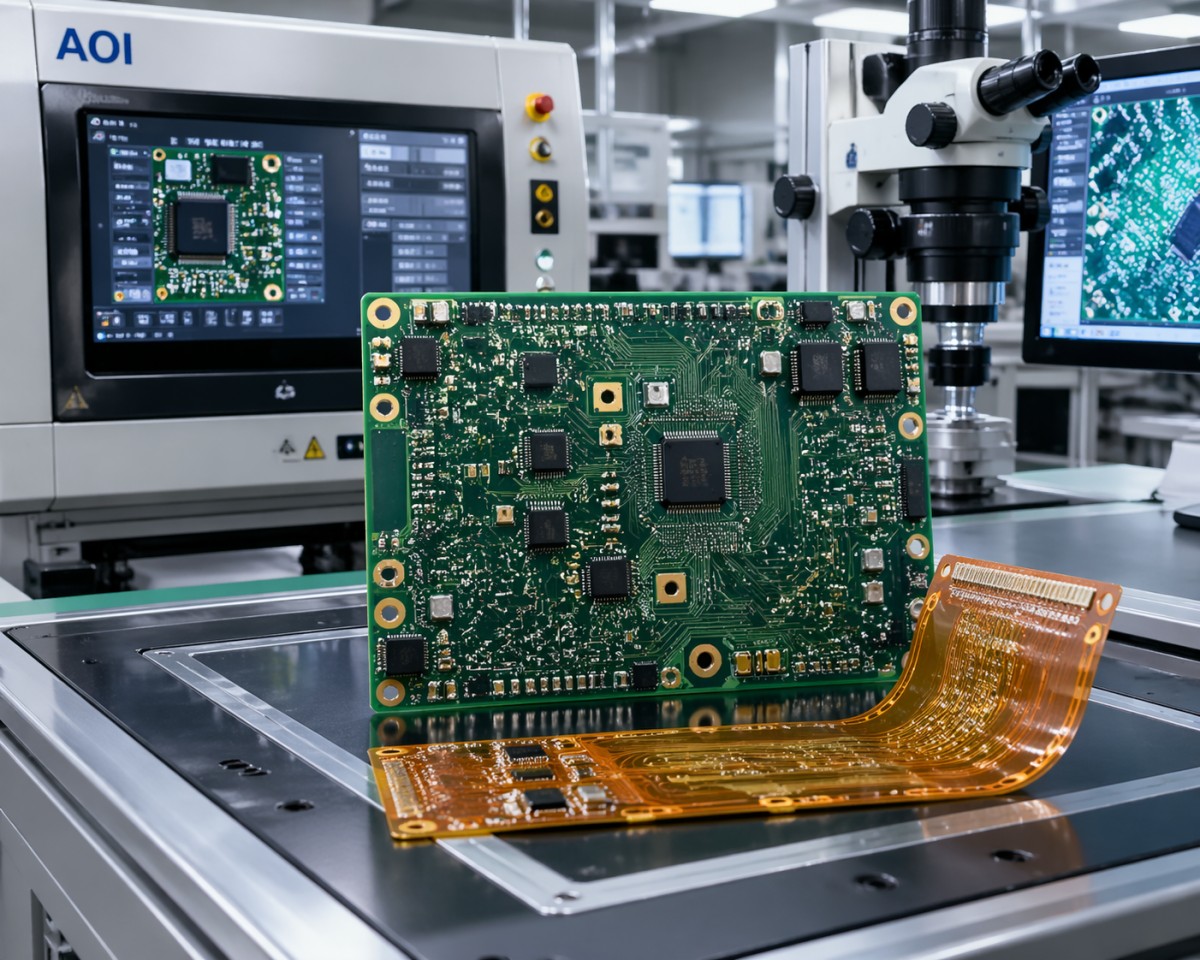

Custom PCB boards are critical to the performance and reliability of modern electronics, from portable ultrasound scanners and smart glucometers to telemedicine carts and wearable ECG monitors. Yet common quality issues in flexible printed circuits and SMT assembly services can lead to costly failures, compliance risks, and supply chain disruption. This guide explores the key defects buyers, engineers, and quality teams must identify before sourcing or scaling production.

What quality problems appear most often in custom PCB boards?

In custom PCB boards, failures rarely start with one dramatic defect. More often, they begin with small process deviations that pass early inspection and surface later during assembly, transport, or field use. For procurement teams, project managers, and quality personnel, the main task is to identify which issues create the highest downstream risk across prototypes, pilot runs, and volume production.

The most common categories usually fall into 5 groups: substrate defects, copper circuit defects, soldering defects, drilling or hole quality issues, and cleanliness or surface finish problems. In sectors such as smart electronics, healthcare technology, and advanced manufacturing, these defects can shorten product life, increase rework, or trigger compliance concerns when traceability records are incomplete.

Flexible printed circuits add another layer of complexity. Repeated bending, tight routing density, and thin materials increase the likelihood of conductor cracking, coverlay misalignment, and pad lifting. In SMT assembly services, common faults include tombstoning, solder bridges, insufficient wetting, voids, and component misplacement, especially when thermal profiles are not tuned for mixed component packages.

A practical review should examine the board across at least 3 stages: incoming bare board inspection, in-process assembly control, and post-assembly functional verification. If a supplier only emphasizes final shipment checks, buyers should treat that as a warning sign, because many latent PCB quality issues are easier and less costly to catch upstream.

Typical defects that deserve immediate attention

• Open circuits and short circuits caused by trace over-etching, under-etching, or contamination during imaging and plating.
• Annular ring reduction and hole wall damage that weaken via reliability, especially in multilayer custom PCB boards.
• Solder mask misregistration that exposes copper or partially covers pads, increasing solderability risk during SMT assembly.
• Surface finish inconsistency affecting storage life, contact performance, and assembly yield over a 3–6 month inventory cycle.

These issues matter because they affect more than electrical continuity. They influence impedance stability, thermal cycling behavior, field durability, and repairability. For distributors and commercial evaluators, even a defect rate that appears minor at the unit level can produce major warranty exposure when repeated across medium or large batch shipments.

How do buyers and engineers assess custom PCB board quality before approval?

A strong evaluation process for custom PCB boards should combine document review, sample inspection, and manufacturing capability checks. Many sourcing problems begin when teams compare suppliers only by quote, lead time, or minimum order quantity. That approach misses whether the supplier can maintain process control across 2-layer, 4-layer, or higher-complexity multilayer builds.

At minimum, cross-functional reviewers should validate 4 areas: drawing and Gerber consistency, raw material traceability, process capability for drilling and plating, and SMT assembly quality control. This matters even more when boards will be used in portable medical devices, industrial controls, power modules, or connected electronics that face vibration, heat, or repeated duty cycles.

The table below summarizes a practical procurement review framework. It is useful for information researchers, sourcing specialists, finance approvers, and quality teams who need to compare suppliers beyond unit price. The listed checkpoints are common B2B evaluation dimensions rather than brand-specific promises.

This framework helps teams separate low-cost quotes from low-risk supply options. In many projects, a 7–15 day prototype lead time looks attractive, but if documentation is weak or process controls are inconsistent, the total cost of delay rises quickly during NPI or mass production. Quality evaluation should therefore be tied to business continuity, not just inspection outcomes.

Questions that should be asked before issuing a purchase order

Request evidence of how the supplier handles design-for-manufacturing feedback, not just whether they “support custom PCB boards.” Ask how many review steps are completed before release to fabrication, how engineering changes are recorded, and whether first-article issues feed into later process adjustments. A supplier that cannot describe this workflow clearly may struggle with repeatability.

Also confirm what inspection methods are used for different risk levels. For example, visual inspection may be adequate for simple through-hole boards, while fine-pitch SMT assembly or hidden solder joints may require AOI, X-ray, or cross-section review. Buyers should not assume every board receives the same depth of control.

A short approval checklist

1. Confirm revision accuracy between BOM, Gerber, and assembly drawing.
2. Verify at least 5 key inspection items: hole quality, solder mask alignment, surface finish condition, copper definition, and cleanliness.
3. Review expected lead time by stage, such as 3–5 days for engineering review and 1–2 weeks for prototype fabrication, depending on complexity.
4. Define acceptance criteria before shipment, including rework limits and reporting requirements.

Which defects create the biggest risk in flexible PCB and SMT assembly services?

Not every defect has the same business impact. Some issues raise cosmetic concerns but remain functionally acceptable. Others lead to intermittent failure, heat buildup, communication errors, or early field returns. In flexible printed circuits and SMT assembly services, the most serious risks are often mechanical fatigue, hidden solder defects, and process mismatch between board design and component package behavior.

For flexible PCB applications, repeated motion is a major stress factor. If bend radius guidance is ignored, copper traces can crack after repeated cycles, especially near stiffener edges or transition zones. In practical sourcing reviews, teams should ask whether the board is intended for static bend, limited flex, or dynamic flex use, because those categories require different design margins and testing expectations.

For SMT assembly, hidden failure modes often occur under bottom-terminated components, fine-pitch packages, or thermally heavy parts. A board can pass basic power-on testing yet fail after shipping shock or thermal cycling. That is why operators and quality managers should focus on process capability, not just final visual appearance.

The comparison table below helps teams prioritize quality risks by application condition. It is especially useful when evaluating custom PCB boards used in medical electronics, industrial devices, smart terminals, or compact communication hardware with mixed environmental demands.

This comparison shows why the “same board quality standard” does not fit every application. A compact consumer device may tolerate one set of conditions, while a healthcare terminal operating daily over 8–12 hour shifts requires stricter durability and traceability controls. Matching defect risk to the real use case is one of the most effective ways to avoid under-specification.

Where many projects go wrong

• Treating flexible PCB design rules as if they were standard rigid board rules, especially around bend zones and pad support.
• Approving SMT samples after basic function only, without considering thermal stress, transport shock, or storage exposure.
• Ignoring how mixed component packages affect stencil design, reflow profile, and inspection coverage.
• Assuming supplier capability remains constant from prototype to medium-volume or large-volume production.

For project leaders and finance reviewers, the implication is clear: the cheapest initial quotation can become the most expensive supply decision if defect containment is weak. The earlier these risks are mapped, the easier it is to protect schedules, budgets, and product reputation.

What standards, compliance checks, and documentation should procurement teams request?

When sourcing custom PCB boards for cross-border B2B projects, compliance is not only about certification labels. It includes process documentation, materials control, inspection records, and evidence that the supplier can respond to nonconformance. For many buyers, the challenge is deciding which documents are essential and which are optional based on application risk.

Common reference points in the PCB industry include IPC workmanship criteria, material declarations, and environmental compliance documentation where relevant. Depending on the product category, teams may also review solderability records, incoming material traceability, and manufacturing lot identification. These checks are especially valuable when boards support healthcare technology, smart electronics, or export-oriented equipment assemblies.

A practical compliance package often includes 6 items: drawing revision record, material data or declaration, process inspection report, shipment traceability label, nonconformance handling record, and agreed acceptance criteria. Not every project needs the same file depth, but high-mix and regulated environments usually benefit from more structured documentation.

Core documents worth requesting

1. Manufacturing drawing alignment records to confirm that the approved revision was actually built.
2. Inspection evidence for critical features such as hole quality, pad definition, solder mask registration, and assembly consistency.
3. Traceability details linking batches, dates, and process records to each shipment or panel lot.
4. A formal path for corrective action when defects are found during incoming inspection or field return analysis.

How this affects business decisions

For commercial evaluators and decision-makers, documentation quality influences supplier risk scoring as much as piece price. If a supplier cannot provide clear lot records or explain how deviations are contained within 24–72 hours, escalations become slower and more expensive. That affects line stoppage risk, customer service performance, and inventory planning.

TradeNexus Pro helps B2B teams interpret these signals in context. Instead of reviewing supplier claims in isolation, procurement leaders can compare process maturity, application fit, and sector-specific risk across advanced manufacturing, healthcare technology, and smart electronics sourcing scenarios. That reduces guesswork when multiple stakeholders must approve the same vendor decision.

How can companies reduce sourcing risk, control cost, and choose the right custom PCB partner?

Reducing quality risk in custom PCB boards is not only about tighter inspection. It starts with smarter supplier selection, clearer specifications, and phased approval logic. For most B2B programs, the best approach is a 4-step path: define the use case, verify manufacturability, validate pilot output, and then expand to scaled purchasing with traceability controls in place.

This approach is especially useful when timelines are tight or budgets are under review. Finance approvers often see only line-item cost, while engineers focus on technical fit. A better method is to compare total procurement impact: unit price, scrap exposure, rework hours, lead-time reliability, and documentation adequacy. Even a modest change in yield can outweigh a lower initial quote over a 2–4 quarter sourcing cycle.

Decision-makers should also distinguish between prototype convenience and production readiness. Some suppliers are fast for low-volume samples but less stable when builds move to recurring releases. Others can support multi-stage projects with engineering feedback, assembly coordination, and documentation discipline. Matching partner capability to program stage is a key purchasing decision, not an operational detail.

A practical sourcing strategy for mixed stakeholder teams

• For engineers: lock critical parameters early, including stack-up intent, bend requirements, finish expectations, and SMT risk points.
• For procurement: compare at least 3 dimensions beyond price, such as lead time stability, reporting depth, and change control responsiveness.
• For quality teams: define incoming inspection criteria before the first shipment, not after the first defect appears.
• For executives and finance reviewers: evaluate the cost of failure across warranty exposure, delivery risk, and customer confidence.

FAQ for custom PCB board sourcing and quality review

How long does custom PCB board qualification usually take?

For straightforward projects, initial qualification can take 1–3 weeks, including engineering review, sample fabrication, and incoming evaluation. More complex flexible PCB or multilayer SMT assembly projects may need extra rounds for profile tuning, reliability checks, or documentation review. The key is to plan approval time separately from fabrication time.

What should buyers focus on if the application is sensitive or regulated?

Prioritize traceability, revision control, process documentation, and defect response time. In sensitive applications, a supplier’s ability to explain how a problem is isolated, corrected, and prevented is often more important than a minor piece-price difference. Ask for sample records before finalizing long-term supply.

Is a lower quote always a better sourcing decision?

No. A lower quote can still carry higher total cost if defect rates, shipment inconsistency, or weak documentation lead to delays and rework. This is especially true when custom PCB boards move from prototype to repeated orders. Total cost should include inspection load, engineering support, and supply continuity risk.
