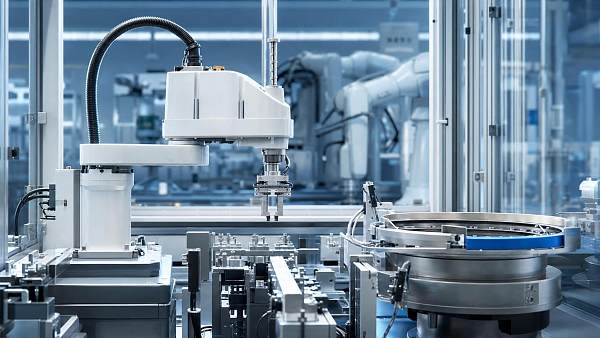

How SCARA Robots Deliver Fast Cycle Time for High-Speed Assembly Lines

What to check before you trust a SCARA robot’s cycle time claim

In high-speed assembly, cycle time is not just a line in a brochure. It decides whether a cell keeps up with feeder output, whether operators spend time waiting on automation, and whether the process stays stable across a full shift. That is why scara robots fast cycle time has become a practical screening point for technical evaluators. SCARA platforms are popular for pick-and-place, screwdriving, dispensing, light press-fit work, and small-parts handling because they move quickly in the horizontal plane, recover position well, and fit into dense production layouts.

Still, fast on paper does not always mean fast on the line. The gap usually comes from how cycle time is defined, what payload is mounted, how far the arm really travels, and what peripheral devices are doing between robot moves. If you are comparing systems for a high-speed assembly line, use the checklist below the way experienced engineering teams do: start with the motion definition, then work outward to tooling, controls, layout, and process variation.

Start with the cycle time definition, not the number

A published cycle time is only useful if you know the test condition behind it. Many SCARA robot specs are based on a short standardized move with limited vertical travel, no part settling delay, and favorable acceleration settings. That can be useful for comparing robot classes, but it does not describe your station unless your motion pattern is very similar.

When a supplier says a robot is fast, ask for the motion profile used to produce that claim. You need the horizontal stroke, vertical stroke, payload, tool mass, orientation change, and whether the measurement includes dwell time for gripping or release. If those details are missing, the number is not decision-grade. It is marketing shorthand.

• Check whether the stated cycle is a pure motion cycle or a full task cycle.
• Check whether acceleration limits were tuned aggressively for the demo.
• Check whether the figure assumes an unloaded arm or a realistic end effector.
• Check whether orientation changes are included. They often cost more time than teams expect.

One common mistake is comparing one vendor’s short-stroke benchmark to another vendor’s application estimate. That comparison will mislead you every time.

Map the real motion path before comparing models

SCARA robots deliver their best cycle times when the task matches their strengths: fast planar motion, compact working envelope, and repeatable up-down movement. So the right question is not “Which robot is fastest?” It is “How much of my cycle matches the robot’s efficient motion pattern?”

Break the task into travel segments. Pick point to transfer point. Transfer point to place point. Return path. Z-axis engagement. Optional rotation. Then mark where the robot is waiting on something else, such as vision confirmation, feeder indexing, torque completion, vacuum build-up, or part presence checks. Once you do that, you often find that the robot itself is only one part of the bottleneck.

This is also where layout decisions matter. A SCARA that looks fast in a catalog can lose its advantage if the tray, nest, and reject bin are spaced too far apart. Extra travel distance compounds quickly in high-volume work. If you want a reliable estimate of scara robots fast cycle time, model the actual point-to-point path, not the idealized one.

Do not separate payload from end-effector design

A SCARA robot may have enough rated payload for your part and still miss the expected cycle time because the end effector is too heavy, too tall, or badly balanced. Fast cycle performance depends on inertia, not just payload mass. A compact gripper with clean cable routing lets the arm accelerate harder and settle faster. A bulky multi-function tool can do the opposite, even if it stays within nominal payload.

Evaluate the complete moving package:

• Tool weight, including adapters, sensors, valves, and brackets
• Center of gravity relative to the robot flange
• Cable and air tube drag during rapid movement
• Whether the tooling introduces vibration at stop points
• Whether vacuum cups or fingers require extra settle time before release

Teams often focus on robot arm speed and underinvest in tool simplification. In practice, a lighter tool on a slightly smaller robot can outperform a larger robot carrying a clumsy head.

Check settling behavior, not only peak speed

High-speed assembly cells do not earn output from peak velocity. They earn output from how quickly the robot gets to position and becomes stable enough to place, insert, or fasten without error. A robot can look impressive in transit and still waste time waiting for oscillation to settle at the endpoint.

This matters even more in operations with tight placement windows, connector insertion, adhesive dispensing start points, or screw presentation. Ask for demonstration data that shows arrival plus stabilization under a realistic payload. If possible, review motion traces or run a trial using your own tool mass and target spacing. Endpoint behavior is where good cycle time estimates become believable.

Match arm reach to the station instead of buying extra reach “just in case”

Oversizing a SCARA is a quiet way to lose speed. Longer reach increases the working envelope, but it can also increase moving mass and reduce the practical advantage you were buying the robot for. If the task lives inside a compact zone, selecting a reach that closely matches the station usually gives better responsiveness and easier layout control.

The smarter approach is to position feeders, nests, and outfeed locations so the robot works in a tight pattern. Keep frequent moves short. Use the longer moves only when the process really needs them. This is one of the simplest ways to improve cycle time without touching the robot program.

Look at the whole cell timing stack

Many high-speed assembly projects stall because the robot is selected correctly but the rest of the cell is timed loosely. A SCARA can complete its move while the feeder is still indexing or while the screwdriver controller is still clearing its result handshake. The result is a fast robot inside a slow station.

When evaluating alternatives, ask for a task-level timing chart. Not a robot-only figure. A station that saves 0.2 seconds in arm motion but loses 0.3 seconds in communication overhead is moving backward.

Check repeatability in the context of the assembly tolerance

Fast cycle time only helps if first-pass yield stays healthy. For small-parts assembly, the useful question is whether the robot’s repeatability supports the tolerance stack of the operation, including part variation, fixture error, and tool compliance. If the process window is narrow, teams often slow down the motion to protect placement quality. That means the theoretical speed advantage disappears in normal production.

This is especially relevant for connector handling, PCB-related subassembly, and light insertion tasks. Review the tolerance chain and decide where the robot needs precision, where compliance can absorb variation, and where vision correction is worth the added time. A SCARA is often a strong fit here, but only if the process is engineered around realistic alignment behavior.

Be careful with vertical motion requirements

SCARA robots are at their best when the job is dominated by horizontal transfer with controlled Z movement. If your station requires deep vertical travel, complex obstacle avoidance, or frequent orientation changes in three-dimensional space, the cycle time advantage may narrow. That does not mean SCARA is wrong. It means the process should be checked against the architecture instead of forcing a fit.

A useful screening question is simple: does the assembly rhythm depend on repeated short Z strokes, or on long vertical motion with path complexity? The first favors SCARA strongly. The second deserves a more careful comparison against other robot types.

Review software tuning and recovery behavior

Cycle time on a production line is not just “best run” speed. It is the average result across starts, stops, minor faults, part misses, and recipe changes. A robot that is fast but difficult to tune, slow to recover, or awkward to reteach can create more downtime than it saves.

During technical evaluation, look at these practical points:

1. How motion parameters are adjusted for different payloads or SKUs
2. Whether path edits can be made without disrupting neighboring points
3. How quickly the robot returns to cycle after an interrupted pick
4. Whether diagnostics clearly separate robot faults from peripheral faults

This is where experienced integrators save time. They know that a slightly slower programmed move with stable recovery logic can beat a more aggressive program over a full week of production.

Use a comparison method that reflects your line, not the demo bench

If you are down-selecting suppliers, keep the test format consistent. Same part weight. Same end-effector concept. Same travel points. Same pick and place height. Same acceptance criteria for successful placement. Without that discipline, one vendor may be showing robot potential while another is showing application reality.

A sound evaluation sequence looks like this: define the real motion pattern, confirm the full moving mass, check arrival stability, measure interaction delays from peripherals, and then compare average cycle results over repeated runs. That gives you a usable basis for selecting a SCARA robot for high-speed assembly, not just a brochure ranking.

Where to focus your decision

If the application is compact, repetitive, and heavy on horizontal transfer, SCARA robots usually earn their reputation for fast cycle time. But the real gain shows up only when the station is designed around that strength. For technical evaluators, the priority is clear: verify the motion definition, validate tooling inertia, measure settle time, tighten the layout, and time the complete cell instead of the arm alone.

That order will tell you quickly whether the promised speed is usable production speed or just a clean number pulled from a favorable test condition.
