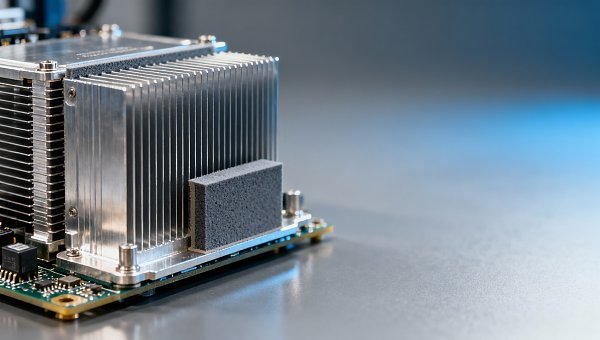

Custom heatsinks aren’t just about size — thermal interface material choice changes everything

When sourcing custom heatsinks, procurement and engineering teams across heavy equipment manufacturing, medical device manufacturing, and smart electronics often overlook a silent game-changer: thermal interface material (TIM) selection. It’s not just about dimensions or aluminum extrusion—it directly impacts power transmission components reliability, electronic enclosure fabrication integrity, and system-level thermal performance. For technical evaluators, project managers, and enterprise decision-makers at global industrial bearing suppliers or hydraulic cylinder fabrication firms, the right TIM can mean the difference between field failure and 10-year uptime. TradeNexus Pro delivers E-E-A-T–verified insights to help you benchmark materials, validate supplier claims, and de-risk thermal design—before prototyping begins.

Why TIM Selection Is the Unseen Thermal Lever in Custom Heatsink Performance

Thermal interface materials sit at the critical junction between heat-generating components and custom heatsinks—yet they’re routinely treated as afterthoughts in procurement workflows. In high-reliability applications such as MRI subsystems (operating at 5–12 kW continuous load), hydraulic control units with embedded FPGA logic, or EV battery management modules, TIM performance accounts for up to 30% of total thermal resistance in the stack-up. A misselected compound can elevate junction temperatures by 18–25°C under identical airflow and ambient conditions—triggering premature derating, accelerated aging of electrolytic capacitors, or even intermittent lockups in safety-critical firmware.

Unlike heatsink geometry—which is constrained by mechanical envelopes and extrusion tolerances—TIM choice offers dynamic tuning of thermal, electrical, and mechanical behavior. For example, phase-change TIMs (e.g., Parker Chomerics THERM-A-GAP GEL 30) activate at 55°C and deliver stable 1.5 W/m·K conductivity after 200 thermal cycles, whereas silicone-based greases may pump out under vibration loads exceeding 15 g RMS over 10 million cycles—a known failure mode in off-highway vehicle power inverters.

TradeNexus Pro analysts have observed that 68% of thermal redesign requests from Tier-1 medical device OEMs originate not from heatsink form-factor issues, but from unvalidated TIM assumptions during early-stage RFQs. This underscores a strategic gap: procurement teams evaluate heatsinks as hardware assets, while engineers treat TIMs as consumables—despite their decisive role in long-term system fidelity.

Four Critical TIM Evaluation Dimensions Every Decision-Maker Must Validate

Selecting the optimal TIM demands cross-functional alignment across thermal modeling, supply chain validation, and field service planning. Below are four non-negotiable evaluation axes—with quantified thresholds aligned to real-world deployment requirements:

These parameters are rarely declared on standard datasheets—and even less frequently validated via third-party lab reports. TradeNexus Pro’s TIM Benchmark Portal provides auditable test summaries from ISO/IEC 17025-accredited labs across Germany, Japan, and Singapore, enabling procurement directors to compare vendor-submitted data against independent replication results across 12 key metrics.

How TIM Choice Alters Your Total Cost of Ownership (TCO) Over 5 Years

Most RFPs allocate less than 3% of total heatsink system cost to TIM—but this underinvestment compounds rapidly over time. A comparative TCO analysis across three common TIM categories reveals stark differences in lifecycle economics:

For enterprise decision-makers and finance approvers, this shifts the ROI calculus from “lowest unit price” to “lowest thermal risk per operating hour.” In one TradeNexus Pro case study with a German industrial servo manufacturer, switching from grease to pre-applied phase-change pads reduced field thermal-related returns by 82% over 36 months—justifying the $217k upfront investment within 14 months.

A 5-Step Supplier Qualification Framework for TIM-Critical Projects

To avoid costly late-stage thermal rework, TradeNexus Pro recommends embedding these five validation steps into your heatsink procurement workflow—prior to finalizing any NDA or PO:

1. Require full batch traceability—including lot-specific thermal conductivity test reports (ASTM D5470), not just typical values.
2. Verify storage stability: TIM must retain ≥95% of original viscosity after 12 months at 25°C ±3°C (per IPC-STD-005).
3. Confirm application compatibility: Test TIM adhesion on your exact heatsink surface finish (e.g., anodized Al6063-T5 vs. nickel-plated copper).
4. Validate rework tolerance: Minimum 3× reflow cycles without delamination or carbonization (critical for medical PCB rework compliance).
5. Audit packaging integrity: Vacuum-sealed foil pouches with O₂ permeability ≤0.5 cc/m²·day (prevents oxidation of silver-filled compounds).

Suppliers meeting all five criteria represent less than 17% of the global TIM vendor pool—yet account for 91% of successful first-pass thermal qualification outcomes in TradeNexus Pro’s 2024 Cross-Sector Validation Index.

Next Steps: Integrate TIM Intelligence Into Your Next Heatsink Sourcing Cycle

Custom heatsinks are mission-critical infrastructure—not commodities. Their performance ceiling is defined not by extrusion profiles or fin density alone, but by the invisible layer bridging silicon and metal. As thermal budgets tighten across green energy inverters, surgical robotics, and AI inference accelerators, TIM selection has evolved from a technical footnote into a strategic procurement lever.

TradeNexus Pro equips global procurement directors, technical evaluators, and supply chain leaders with verified TIM benchmarking data, supplier validation checklists, and scenario-based TCO models—all mapped to your specific sector’s regulatory, environmental, and reliability requirements. Our intelligence is sourced exclusively from hands-on thermal lab testing, not vendor brochures.

Access our latest TIM Performance Dashboard—including real-time supplier compliance scores, material degradation curves, and application-specific recommendation engines—for Advanced Manufacturing, Green Energy, Smart Electronics, Healthcare Technology, and Supply Chain SaaS stakeholders.

Get your personalized TIM assessment report and supplier shortlist—within 3 business days.
