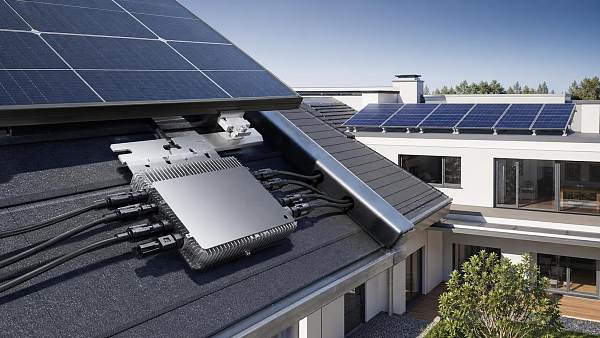

How to Choose Single-Phase Solar Microinverters for Residential PV Systems

Start with the electrical match. A single-phase solar microinverter that looks adequate on module wattage alone can still be a poor fit if its AC output, voltage window, startup behavior, and grid profile do not align with the residential service conditions. In rooftop projects, the first screening question is whether the inverter can operate stably on the actual utility standard at site, including nominal voltage, frequency, anti-islanding behavior, and any local ride-through requirements that may be enforced by inspection or interconnection review. A datasheet that says “single-phase” is only a starting point; the operating envelope matters more than the label.

The DC side deserves equal attention because residential arrays often mix roof planes, tilt angles, and partial shading. Microinverters are usually chosen to improve panel-level energy harvest and reduce mismatch losses, but that advantage depends on the MPPT range being realistic for the selected modules across cold mornings, high-irradiance summer periods, and aging over time. If the module open-circuit voltage approaches the inverter’s maximum DC input under low-temperature conditions, the margin may be too narrow. If the module’s typical operating voltage sits near the bottom of the MPPT window, tracking can become unstable during weak sunlight or rapid cloud transitions.

Module Pairing Should Be Evaluated Beyond Nameplate Power

One of the most common mistakes in selecting single phase solar microinverters is treating module wattage and inverter rated input power as a simple one-to-one match. Residential PV modules with the same wattage can differ materially in current, voltage, temperature coefficient, and cell architecture. A microinverter that works well with a conventional module may behave differently with high-current formats, bifacial modules on reflective roofs, or newer cell designs that push current upward while keeping voltage in a familiar range.

Focus on four practical pairing points:

• The inverter’s maximum input current should accommodate the module’s short-circuit current with sensible design margin, especially where irradiance spikes can occur after cloud-edge events.
• Its MPPT operating window should overlap the module’s real working voltage rather than only its standard-test-condition value.
• DC oversizing can be acceptable in many cases, but only if clipping behavior, thermal limits, and warranty language are clearly understood.
• Connector compatibility should be verified physically and contractually; field adapters may introduce additional resistance, sealing risk, or inspection concerns.

This is also where rooftop geometry matters. A system with multiple roof faces and intermittent chimney shade may benefit more from wider low-light MPPT stability than from a slightly higher peak power rating. On an unobstructed roof with uniform azimuth, the gain from microinverters may still be valid, but the selection pressure shifts toward conversion efficiency, thermal durability, and monitoring granularity rather than mismatch recovery alone.

Thermal Design Often Separates Durable Units from Short-Lived Ones

Microinverters work in a difficult environment: beneath modules, exposed to repeated heating and cooling cycles, with limited airflow and occasional moisture stress. Because of that, enclosure design and component quality deserve more weight than polished marketing terms. A unit installed under a dark roof in a hot climate may spend long periods near its derating threshold. If the thermal path from power semiconductors to enclosure is poorly engineered, output reduction or component aging may appear long before any formal failure.

Heat management should be examined through construction details that can usually be inferred from technical documentation or physical samples. Die-cast aluminum housings, potting quality, gasket integrity, corrosion resistance of fasteners, and cable strain relief all affect field life. Passive cooling is common in this product category, so enclosure surface area and mounting clearance are not cosmetic details. Thermal testing claims are more credible when operating temperature range, derating conditions, and installation spacing guidance are stated clearly instead of buried in footnotes.

Electrolytic capacitor dependence is another point worth checking. Designs that reduce reliance on components known to age faster under heat may offer better long-term stability, although actual service life still depends on installation temperature, grid quality, and duty cycle. Where rooftop ambient conditions are severe, asking for component-level design philosophy is reasonable rather than relying on generic reliability language.

Grid Compatibility Is a Technical Requirement, Not an Administrative Detail

Single-phase residential PV systems live or fail by their interaction with the grid. A microinverter may convert power efficiently but still create commissioning delays if its grid settings cannot match the local utility profile. Frequency trip points, voltage limits, reconnection timing, reactive power behavior, export limiting compatibility, and communication with external control devices can all matter depending on the jurisdiction and the site’s service arrangement.

In some homes, the issue is not only utility compliance but power quality at the property itself. Long service runs, voltage rise on lightly loaded feeders, or unstable local supply can trigger nuisance shutdowns if the inverter’s tolerances are narrow. In such conditions, field experience with similar grid environments is often more useful than headline efficiency numbers. Technical selection should therefore include a review of configurable grid profiles, firmware management procedures, and the process for applying region-specific settings without creating warranty ambiguity.

Where battery coupling or future retrofit is being considered, it is worth confirming whether the microinverter architecture can coexist with AC-coupled storage, backup interfaces, or home energy management devices. Compatibility may exist in principle but become difficult in practice if communications are proprietary, export control logic is limited, or blackout isolation behavior is not clearly defined.

Monitoring Depth Affects Fault Isolation and Ongoing Yield Verification

Panel-level monitoring is often cited as a reason to choose microinverters, but the detail level varies significantly. Some systems provide only basic production visibility, while others allow event history, per-unit diagnostics, remote firmware updates, and clearer distinction between module-side and inverter-side issues. For residential systems spread across several roof sections, this can directly affect maintenance efficiency. Without useful fault codes and stable communications, troubleshooting a shaded, underperforming, or intermittently disconnecting module can become a time-consuming roof visit rather than a short remote review.

Communication architecture should be checked for practical constraints. Wireless links may be sensitive to building materials, roof layout, or electrical noise. Power-line communication can also behave differently depending on branch circuit design and household loads. If a gateway or data concentrator is required, the evaluation should include its placement, internet dependency, data retention, and behavior during outages. Monitoring that fails silently is worse than simplified monitoring that at least remains dependable.

Cybersecurity and data continuity should not be ignored simply because the installation is residential. If remote access, firmware updates, or cloud dashboards are part of the operating model, it is reasonable to ask how updates are authenticated, whether local production history can still be retrieved after communication loss, and what happens if the original software environment changes in the future.

Mechanical and Installation Details Influence Real Project Risk

On paper, microinverters can simplify DC design by keeping high-voltage DC off the roof. In practice, they increase the number of rooftop electronic devices and AC trunk connections, so installation quality becomes central. Mounting hole spacing, bracket compatibility, cable length, connector orientation, minimum bend radius, and trunk cable sealing all affect labor time and defect risk. A unit that is technically strong but awkward to mount under common rail systems can increase installation variability across crews.

Pay attention to the following field issues, which are easy to overlook during desk evaluation:

• Whether the enclosure fits beneath the selected module frame without forcing cable compression.
• How the AC trunk cable is terminated at the end of each branch and whether unused connectors are protected with purpose-built sealing components.
• Grounding method and whether additional bonding hardware is required under local electrical practice.
• The effort required to replace a failed unit in the middle of an array, especially under larger residential modules that cover more rail area.

Ingress protection claims should also be interpreted carefully. A high enclosure rating does not cancel poor field handling, mixed connector sets, damaged seals, or water traps created by cable routing. Installations near coastlines, agricultural areas, or industrial dust sources place extra stress on aluminum surfaces, polymer jackets, and connector contacts. If the site environment is harsh, material selection and corrosion resistance deserve explicit verification.

Certification Review Should Stay Close to the Intended Use Case

Certification labels matter, but they should be read in context. The relevant question is not whether a unit has many marks on the brochure; it is whether the product version being purchased is certified for the actual country, grid profile, and installation type involved. Product families can include region-specific variants with different firmware, cable systems, or compliance status. A mismatch here may only become visible during inspection, commissioning, or warranty registration.

It is also sensible to ask whether the tested configuration matches the supplied accessories. AC trunk cables, connectors, terminators, gateways, and rapid shutdown functions may all be part of the certified system concept. Mixing parts across generations or sourcing replacement accessories through uncontrolled channels can create avoidable compliance and reliability problems.

Supplier Evaluation Should Focus on Technical Continuity

Microinverters are installed for long service periods, so supply continuity matters alongside the hardware itself. Replacement availability, firmware support, revision control, and traceability of production batches have direct operational value. A well-documented serial number structure, clear change notices for hardware revisions, and accessible technical support records are often better indicators of maturity than broad product line claims.

Shipping and storage conditions also enter the decision more than they do with some larger central equipment. These are compact electronics with sealed housings, attached cables, and connector interfaces that can be damaged by rough packing, moisture exposure, or excessive stacking pressure. Before approval, it is reasonable to review packaging design, warehouse handling guidance, and incoming inspection criteria. Bent connectors, compromised cable jackets, or missing sealing components can turn into rooftop faults weeks later.

Where sample evaluation is possible, visual inspection should include casting quality, cable gland finish, connector locking feel, label permanence, and consistency between datasheet revision and product marking. Small inconsistencies do not automatically indicate poor performance, but they often reveal how tightly manufacturing change control is managed.

Efficiency Claims Need Context from Operating Conditions

Published peak efficiency is useful, but residential microinverters spend much of their time away from ideal laboratory conditions. Partial shading, nonuniform module temperatures, morning startup, afternoon heating, and low-irradiance operation all shape actual energy delivery. A slightly lower peak number may be acceptable if the unit shows better behavior across a broader operating window or resists thermal derating more effectively under the roof conditions expected.

European-weighted or CEC-style efficiency figures can provide a more grounded comparison where available, yet even those should be interpreted alongside clipping behavior and nighttime consumption. If the design includes communication hardware or monitoring gateways with standby draw, system-level consumption may differ from inverter-only figures. This rarely determines the whole decision, but it does affect precision when comparing close alternatives.

Common Misjudgments During Selection

Several recurring errors can distort the assessment of single phase solar microinverters. One is assuming that all panel-level architectures deliver similar monitoring and fault isolation. Another is overlooking current limits when pairing with modern high-current modules. A third is ignoring rooftop serviceability until the first replacement event exposes access problems.

There is also a tendency to compare only inverter efficiency and warranty duration while leaving aside cable ecosystem quality, firmware support path, and grid adaptability. Those omissions can be more costly than a small difference in conversion performance. Residential PV systems are exposed for years to weather, utility fluctuations, and household operating changes; the microinverter should be selected as part of an installed electrical assembly, not as an isolated catalog item.

A disciplined choice usually comes from narrowing the field through site-specific electrical compatibility, then testing the remaining options against thermal construction, monitoring reliability, installation practicality, and documentation quality. When a unit remains technically coherent across all of those layers, it is far more likely to perform predictably on a residential roof than one chosen mainly by headline wattage.
