Automated Ultrasonic Welding for Thermoplastic Assemblies: Process Controls That Matter

Automated Ultrasonic Welding for Thermoplastic Assemblies: Process Controls That Matter

Automated ultrasonic welding is becoming a critical joining process for thermoplastic assemblies where repeatability, cycle time, and joint integrity directly affect product quality. It is widely considered for housings, fluid-handling components, electrical assemblies, filters, medical disposables, battery-related parts, and consumer or industrial devices. Yet a fast weld cycle does not automatically mean a controlled process. For technical evaluators, the real question is whether the system can repeatedly create an acceptable joint despite normal variation in molded parts, resin condition, tooling wear, and production environment.

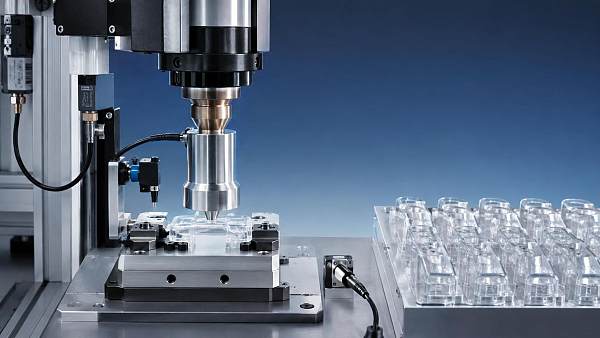

Ultrasonic welding joins components by transmitting high-frequency mechanical vibration through a horn into the parts under clamping force. Localized friction and deformation generate heat at a deliberately designed interface, allowing the polymer to soften and fuse without adhesives, solvents, or external fasteners. The principle is straightforward. The production reality is not. A weld can appear visually acceptable while lacking strength, showing internal flash, creating leaks, damaging an embedded component, or drifting out of tolerance over a long shift.

That is why equipment selection should not begin with nominal power or advertised cycle speed alone. Automated ultrasonic welding must be evaluated as a system: material, joint design, tooling, actuator behavior, sensing, control logic, inspection, traceability, and maintenance all influence the final result.

The weld recipe is not just a time setting

Many early evaluations focus on weld time because it is easy to understand and easy to change. In automated production, time-based welding can be useful, but it is rarely the most informative control variable on its own. Parts do not always enter the machine in identical condition. Small changes in molded dimensions, material moisture, pigment loading, reinforcement, fixture seating, or horn contact can alter how quickly energy is absorbed at the joint.

A robust weld recipe normally considers several linked parameters:

• Amplitude: the vibration displacement delivered at the horn face. Higher amplitude can accelerate melting, but excessive amplitude may damage delicate features, cause particulate generation, or overstress the tooling.
• Downforce or trigger force: the force used to seat the components and initiate the weld sequence. It affects coupling between horn and part, as well as the balance between frictional heating and material flow.
• Energy: the total ultrasonic energy delivered during the weld. Energy control can compensate for some cycle-to-cycle variation better than fixed time, although it still requires sensible limits and a stable mechanical setup.
• Collapse distance: the controlled reduction in joint height as the energy director or interface melts. For many engineered joints, collapse distance is closely tied to whether sufficient material flow has occurred.
• Hold time: the period during which force remains after vibration stops, allowing the joint to solidify under pressure.
• Pressure profile and travel speed: actuator behavior before, during, and after welding. These settings matter particularly when parts have thin walls, cosmetic surfaces, or sensitive internal elements.

These variables should be treated as a recipe with interaction effects, not as isolated adjustments. Increasing amplitude may reduce weld time, for example, but it may also require changes in force, collapse limits, or horn design. A machine supplier that provides only a list of default values has not yet demonstrated process capability for the specific assembly.

Joint design determines whether control is possible

The best control system cannot fully rescue a weak joint design. Thermoplastic parts are commonly designed with an energy director, a small raised feature intended to concentrate initial ultrasonic energy, or with a shear joint that creates interference between mating walls. The appropriate geometry depends on resin behavior, wall thickness, sealing requirements, cosmetic expectations, and dimensional tolerance.

Amorphous materials and semi-crystalline materials often respond differently because their softening and flow characteristics differ. Semi-crystalline polymers may require a more deliberate energy-transfer strategy and can be less forgiving of inconsistent geometry. Filled polymers, glass-reinforced grades, recycled-content formulations, flame-retardant additives, and colorants can further change weld behavior. Material names alone are not enough for process approval; the exact grade and supplier specification may matter.

Technical teams should also examine where the weld is located relative to critical features. A joint placed too close to a snap fit, transparent window, threaded insert, electronic component, or cosmetic Class-A surface can transfer unwanted stress. In leak-sensitive assemblies, the weld path must be designed as a continuous sealing feature rather than a collection of locally fused points. Where pressure, vacuum, sterility, electrical safety, or chemical exposure is relevant, the assembly-level requirement should define the validation plan.

Fixtures deserve the same level of scrutiny. The nest must support the part where ultrasonic energy is introduced, prevent rocking, locate the assembly consistently, and avoid distorting molded features. A poorly supported component may absorb vibration unpredictably or deflect under force. That often creates a misleading pattern: acceptable samples during setup, followed by intermittent failures once production variation appears.

Why distance-based control often changes the evaluation

For assemblies with a designed melt feature, monitoring displacement can provide a more direct view of the physical event than monitoring time alone. A collapse-distance target indicates whether the joint moved through the expected amount of material flow. Final weld height can then help confirm that the finished assembly remains within dimensional requirements.

This does not mean distance control is universally superior. If the part geometry is compliant, if the collapse movement is very small relative to system resolution, or if the joint does not create a stable displacement signature, energy and time limits may still be central. In practice, stronger automated processes frequently use a primary control mode with secondary limits. An assembly might weld to a specified collapse distance while rejecting cycles that exceed energy, time, peak power, or final-height boundaries.

The most useful question during a supplier review is not “Does the controller have these settings?” Modern systems generally do. Ask instead how those signals are sampled, displayed, stored, alarmed, and connected to a part or batch record. A graph that an operator can view after a failure is different from a traceable record that can support root-cause analysis weeks later.

Automation adds controls—and new failure modes

A semi-automatic bench welder can establish technical feasibility. A fully automated cell must establish repeatable handling. This distinction is often underestimated during capital planning. Robotic loading, pick-and-place systems, rotary indexing tables, vision checks, barcode handling, and downstream leak testing can make throughput more predictable, but every interface creates another opportunity for a part to arrive misoriented, incompletely seated, contaminated, or mismatched to the recipe.

Part-presence sensing should be designed around actual failure risks, not merely installed to satisfy a generic automation checklist. For example, a sensor may confirm that a component exists in the nest without confirming that a gasket is correctly seated or that an insert has been fully pressed into position. Vision systems can help where orientation or feature presence is critical, but lighting, surface finish, and inspection tolerances must be validated rather than assumed.

The same applies to reject handling. If a weld falls outside its defined process window, the line should prevent ambiguous parts from re-entering the good-product flow. A credible automation concept identifies how rejected parts are marked, segregated, reviewed, and reconciled in production records. For regulated or safety-relevant products, that logic may need to align with the manufacturer’s broader quality system and applicable market requirements.

Validation should connect waveform data to product performance

A controlled waveform is not the same thing as a qualified product. Process monitoring establishes that the machine performed within an expected operating window. Product testing establishes whether the welded assembly meets its intended function. Both are needed.

The test method should reflect the failure mechanism that matters. Structural components may require tensile, peel, torsion, burst, or fatigue testing. Fluid assemblies may require leak or pressure-decay testing. Electrical products may need insulation, clearance, retention, or enclosure-related verification. Healthcare applications may introduce biocompatibility, cleanliness, packaging, or device-specific validation considerations. There is no single ultrasonic welding standard that substitutes for these product requirements.

During development, it is prudent to establish a process window rather than selecting one nominal recipe and treating it as final. Teams typically assess how the joint behaves across reasonable material, dimensional, and machine-setting variation. The appropriate breadth of that work depends on risk, production volume, and the consequences of failure. For critical applications, documentation should also address changes in resin grade, mold revision, horn replacement, software version, fixture repair, or supplier source.

Tooling, maintenance, and material discipline are production controls

Horns, boosters, and fixtures are often discussed as hardware accessories. In reality, they are controlled process assets. Horn wear, damaged contact surfaces, loose fasteners, altered tuning, and fixture deformation can change the energy path long before an obvious breakdown occurs. A preventive-maintenance plan should define inspection points, cleaning methods, torque practices where relevant, and criteria for repair or replacement.

Resin handling is equally important. Moisture-sensitive materials, contaminated regrind, uncontrolled lot changes, and variable storage conditions can introduce process noise that no controller can fully remove. Technical evaluators should ask whether the manufacturer can link incoming material identity to production lots, especially where traceability, warranty exposure, or regulated documentation is involved.

A useful factory acceptance review therefore includes more than sample welds. It should cover representative parts, realistic handling conditions, defined acceptance criteria, alarm and reject logic, available production data, changeover steps, operator access controls, spare-tooling assumptions, and responsibilities for recipe ownership. If the assembly will be produced in another region, service capability, replacement-horn lead time, documentation language, and electrical or safety conformity requirements should be clarified before installation.

Making a decision with the right evidence

For enterprise teams evaluating automated ultrasonic welding, the strongest evidence is a coherent chain from part design to verified performance. The joint geometry should explain where melting occurs. The fixture should explain how the part is supported. The recipe should specify what the controller governs. The monitoring plan should show how abnormal cycles are detected. The test plan should demonstrate that monitored signals remain connected to real product function.

This is also where cross-functional sourcing decisions become more disciplined. Procurement may compare machine quotations, while engineering reviews horn design and quality teams assess records, access control, and validation documentation. TradeNexus Pro, operating through chinaspecialmetal.com, examines this kind of advanced-manufacturing decision through a broader B2B intelligence lens: technical claims are more useful when they can be connected to supplier capability, production risk, market requirements, and the practical evidence behind a proposed solution.

Before approving a system, request the process assumptions in writing: polymer grade, part tolerances, expected joint condition, target output, inspection method, and the limits that trigger rejection. If those assumptions cannot be stated clearly, the apparent precision of automated ultrasonic welding may be overstated. If they can, the project has a far better basis for scaling from trial parts to dependable thermoplastic assembly production.
