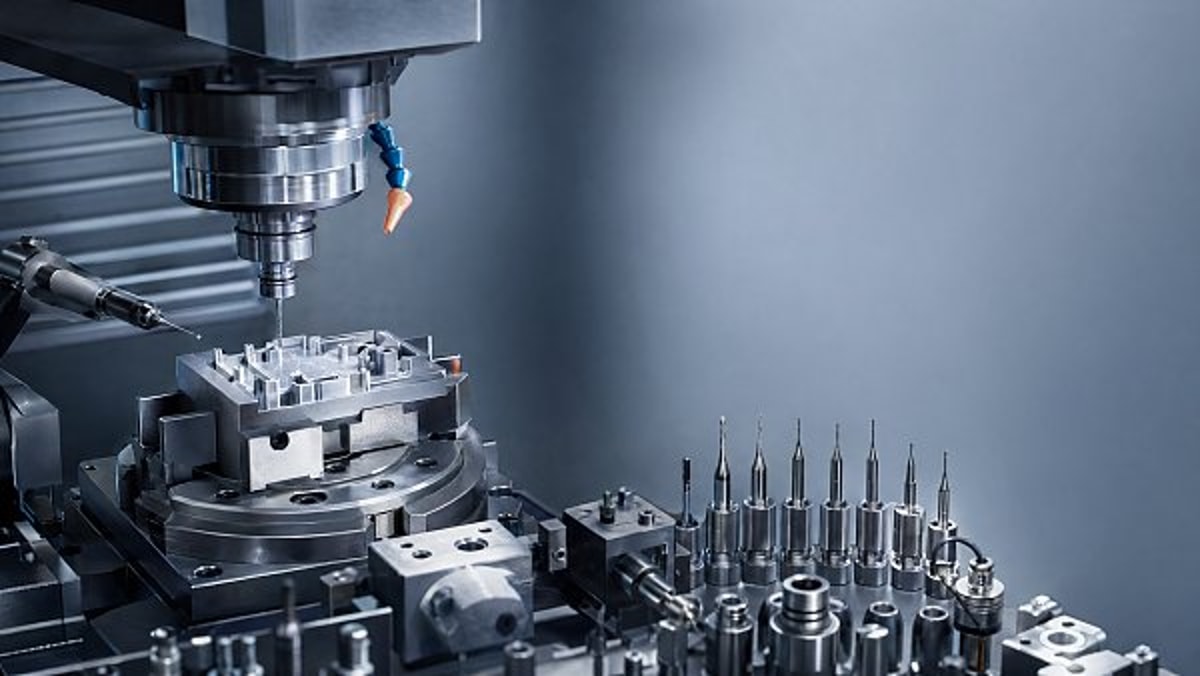

Why Micro Machining Scrap Rates Rise on Tiny Features

In micro machining, scrap rates often surge when feature sizes shrink beyond process stability limits. Tiny geometries amplify tool deflection, heat buildup, burr formation, and measurement errors, turning minor variations into costly defects. For operators and shop-floor users, understanding why these failures occur is the first step toward improving yield, tightening tolerances, and reducing waste on high-precision parts.

A checklist-based approach works better than a broad theory discussion because most micro machining scrap is not caused by one dramatic failure. It usually comes from 5 to 8 small process shifts happening at the same time: spindle runout, tool wear, unstable workholding, thermal drift, chip packing, poor inspection method, or an aggressive feed strategy on a feature that is only a few hundred microns wide.

For operators, setters, and cell leaders, the practical question is simple: what should be checked first when tiny features start failing? The guide below is organized around that need. It highlights the key warning signs, the process checks that should happen before a batch is lost, and the adjustments that typically reduce scrap in micro machining across precision metal, polymer, electronics, and medical-related part production.

Start Here: The First Checks When Tiny Features Begin Failing

When feature sizes drop below about 1.0 mm, and especially below 0.3 mm, normal machining variation starts to consume a much larger share of the tolerance band. A 5 µm tool path deviation may be acceptable on a 10 mm slot, but it can be critical on a 120 µm wall or a 200 µm groove. That is why micro machining scrap rises quickly once the process window becomes narrower than the machine’s real-world stability.

Before changing speeds and feeds, operators should confirm whether the defect is geometric, thermal, mechanical, or metrology-related. In many shops, the first visible defect is only the symptom. Burrs may actually start with edge breakdown. Oversized slots may begin with spindle growth after 20 to 40 minutes of continuous cutting. Chipped corners may be linked to vibration from weak fixturing rather than from the programmed feed rate itself.

The fastest way to stop scrap from spreading is to check the process in a fixed order. That prevents random troubleshooting and helps isolate which variable changed between good parts and rejected parts.

Priority checklist for micro machining scrap diagnosis

• Confirm the actual failed feature size, tolerance, and surface requirement. A tiny wall, blind pocket, or micro-hole may fail for different reasons even on the same part.
• Check tool diameter, flute length, runout, and wear condition. In micro machining, 3 µm to 10 µm of runout can materially shift chip load on a small cutter.
• Verify workholding rigidity and part support near the cut zone. Thin features often deflect under cutting pressure before they visibly break.
• Review spindle warm-up time, coolant or air blast consistency, and chip evacuation. Heat and recutting often raise scrap faster than feed errors.
• Confirm inspection method and gauge capability. If the measurement uncertainty is close to the tolerance, false scrap and missed defects both increase.

This order matters because it separates high-frequency causes from less common ones. In day-to-day micro machining, the first four checks often explain the majority of sudden scrap spikes on tiny features, particularly in slots, ribs, vents, micro-pins, narrow channels, and miniature pockets.

What operators should record immediately

If a batch starts drifting, record the tool life stage, part count since tool change, machine runtime since warm-up, ambient shift conditions, and whether the defect appears at entry, mid-path, or exit. Even 15 to 30 minutes of accurate shop-floor notes can reveal whether the issue is progressive wear, thermal change, or a local geometry problem.

Use This Failure Checklist: Why Micro Machining Scrap Rises on Tiny Features

The most common reason scrap climbs in micro machining is that tiny features magnify every instability in the process chain. Tool stiffness drops fast as diameter decreases. Heat has less material volume to dissipate into. Burr roots become a larger percentage of final feature size. Inspection also becomes less forgiving because the allowable variation may be only a few microns.

Operators should not treat all scrap on small features as a “feed and speed problem.” In many cases, the machine is cutting exactly as programmed, but the part, tool, or environment cannot support that program consistently over 30, 100, or 500 pieces.

The table below helps identify the most frequent scrap drivers in micro machining and the shop-floor signs that usually appear before defect rates escalate.

A useful takeaway is that the same defect category can come from different root causes. A burr, for example, may result from worn tooling, incorrect chip load, weak support, or poor exit strategy. In micro machining, solving scrap means tracing the defect back to the process condition that created it, not just removing the visible symptom.

Four failure modes that deserve immediate attention

First, tool deflection becomes severe as aspect ratio rises. A micro end mill with a long stick-out may appear acceptable in setup, yet bend enough under load to distort a wall or radius. This effect gets worse when radial engagement is too high or when the cutter enters a corner without adequate load control.

Second, built-up heat often hides until late in the run. In metals and engineered plastics alike, micro machining can trap heat because the cut is too small to evacuate energy efficiently. A process that holds size for the first 10 parts may drift by part 30 if the spindle, holder, workpiece, or machine structure has not stabilized.

Third, burr control becomes a quality limiter rather than a cosmetic issue. On miniature vents, connector features, fluid channels, or sensor slots, even a burr height of 10 µm to 30 µm may block function or create assembly interference. Fourth, measurement error can create both overcorrection and false acceptance if the shop relies on a method not suited for sub-millimeter geometry.

Check Process Stability Before Changing the Program

A common mistake in micro machining is to edit the toolpath too early. If the root issue is unstable clamping, spindle runout, or thermal drift, a program change may only mask the problem for a short time. Operators should first verify whether the process is physically stable enough to repeat within the target tolerance window over the full production cycle.

This means checking machine condition, holder quality, setup repeatability, and environmental variation. In high-precision work, a tolerance band of ±5 µm to ±15 µm may leave no room for cumulative error. If runout, part movement, and heat each contribute only a few microns, scrap can rise even though no single variable appears extreme on its own.

The checklist below helps operators judge whether the process foundation is stable enough for tiny-feature production.

Process stability checklist for micro machining

1. Warm up the spindle and axes for a repeatable period, often 15 to 30 minutes depending on machine behavior and tolerance sensitivity.
2. Measure or verify total indicated runout at the tool tip, not only at the holder. Small-diameter tools are highly sensitive to tip-level error.
3. Minimize tool stick-out to the shortest safe length. Every extra increment reduces stiffness and increases vibration risk.
4. Check clamping force and support placement so thin sections are backed up near the cutting zone whenever possible.
5. Confirm chip evacuation path using air, mist, coolant, vacuum, or a combination suited to the material and geometry.
6. Review in-process inspection intervals. On unstable features, checking every 10 to 20 parts may prevent a full batch loss.

Once these items are under control, program optimization becomes more meaningful. Without that foundation, feed reduction or path smoothing may lower visible breakage while still leaving size variation and burr-related scrap in place.

A quick comparison of stable versus unstable conditions

The following table can be used as a practical judgment tool during setup reviews or first-article troubleshooting in micro machining cells.

This comparison shows why micro machining quality depends on the entire process chain. Scrap on tiny features is rarely solved by one setting change alone. The more sensitive the geometry, the more important it is to control all four areas together.

Adjust by Feature Type: Tiny Holes, Thin Walls, Slots, and Micro Pockets

Not every micro machining feature fails in the same way. A 150 µm slot, a 300 µm hole, and a 0.2 mm wall each place different demands on tool entry, chip evacuation, support, and inspection. Operators should use feature-specific checks instead of assuming that one successful recipe applies to every miniature geometry on the part.

Feature type also changes how scrap should be interpreted. For example, micro-holes often reveal pecking, chip evacuation, or concentricity problems first. Thin ribs and walls reveal deflection and support problems first. Small pockets often expose heat concentration and recutting. That is why process review should begin by asking where the failure occurs and what geometry is involved.

Below are practical checks by feature category that can help reduce micro machining scrap before a larger corrective action is needed.

Feature-specific operator checklist

• Tiny holes: Confirm tool centering, peck strategy, evacuation method, and breakthrough behavior. Even slight chip retention can scratch or bell-mouth the opening.
• Thin walls: Sequence roughing and finishing to preserve support as long as possible. Avoid heavy side load near final wall thickness.
• Narrow slots: Watch for chip packing, slot taper, and edge burrs. Full-width engagement raises cutting load quickly on miniature tools.
• Micro pockets: Review corner strategy, step-down, and dwell behavior. Heat and recutting often accumulate in closed geometry.
• Sharp micro corners or pins: Check for local vibration and edge breakage. These features often need conservative finishing passes and reliable support nearby.

In mixed-feature parts, one geometry may set the scrap rate for the entire job. A component can pass 90% of its dimensions yet still be rejected because one tiny slot closes with burr, or one micro-hole drifts out by 8 µm. In that situation, the process should be optimized around the most failure-sensitive feature, not the easiest one to produce.

When to tighten inspection frequency

Increase inspection frequency when a feature has less than 0.5 mm width, when the tolerance drops into the single-digit micron range, when the material is burr-prone, or when tool life is known to shift rapidly. In practical terms, first-piece, tool-change, and every-10-part verification can be far less costly than discovering 50 rejected parts at the end of a run.

Do Not Miss These Overlooked Scrap Drivers in Micro Machining

Some of the most expensive micro machining scrap comes from factors that are easy to dismiss because they do not look dramatic at the machine. A cutter may still look sharp under normal light but have edge degradation significant enough to raise burrs. A fixture may seem rigid during setup but shift slightly under heat or repeated loading. A measurement method may be consistent but still unsuitable for the actual feature form.

Operators should also remember that process interaction matters. Mild runout plus a long stick-out plus unstable chip evacuation may produce far more scrap than any one of those issues alone. The smaller the feature, the more these stacked errors become visible in the final part.

Use the following risk reminders when a job appears to be “almost under control” but scrap remains higher than expected.

Commonly overlooked risk items

• Using a measurement method with uncertainty too close to the tolerance band, especially on internal or high-aspect-ratio features.
• Ignoring spindle growth over longer cycles, particularly on repeat production lasting 1 to 3 hours without a reset or compensation check.
• Assuming burr removal is harmless. Secondary deburring can deform very small edges, thin walls, and delicate openings.
• Keeping one tool-life rule for all materials. Stainless, titanium, copper alloys, aluminum, and engineering polymers can wear micro tools in very different patterns.
• Overlooking operator handoff variation between shifts. In micro machining, setup details that seem minor can change the scrap trend noticeably.

These points are especially relevant in cross-sector production environments such as advanced manufacturing, smart electronics, healthcare technology components, and precision supply chain contract work. In those settings, part geometry is often small, tolerances are narrow, and scrap has a direct effect on delivery reliability and total cost.

Turn the Checklist Into Action: A Practical Improvement Plan

If scrap is already rising in micro machining, the best response is a short, disciplined improvement cycle rather than a broad process overhaul. Start with one failed feature, one machine, one tool family, and one inspection method. That keeps the trial controlled and makes the source of improvement easier to verify.

A useful 3-step plan is to stabilize, isolate, and optimize. Stabilize the setup and thermal condition first. Isolate which variable most affects the defect, such as runout, stick-out, chip evacuation, or tool life stage. Then optimize cutting parameters and toolpath only after the underlying process is repeatable.

For many shops, even small actions can cut waste noticeably: shorter tool projection, earlier tool changes, tighter in-process checks, improved air blast direction, or a revised cut sequence that leaves support material longer. Micro machining rewards consistency more than aggressive cycle-time chasing.

What to prepare before asking for technical support or supplier input

When you need external help, prepare the basics in advance: feature drawing, material grade, current tool dimensions, holder type, spindle speed, feed, depth of cut, radial engagement, runout reading, scrap photos, and inspection method. If possible, include when the defect begins in the batch and whether it is constant or progressive.

This information makes technical discussion faster and more useful. It also helps suppliers, process partners, or manufacturing intelligence platforms compare your issue against similar micro machining conditions in adjacent sectors and recommend a more realistic path to lower scrap.
